H12SSFR-AN6, CSE-F424AS3-R2K20BP, FT RIO 4U 4-Node UP

SKU: AS -F2014S-RNTR
Brand: Supermicro
Produktnotat:

To maintain quality and integrity, this product is sold only as a completely-assembled system with CPU, RAM and Storage.

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10664/image_1920?unique=3c6928e

kr 78 674,96 78674.96 NOK kr 78 674,96 Ekskl. mva

kr 78 674,96 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro AS-F2014S-RNTR is an advanced 4U rackmount server designed for hyperscale, HPC, and big data environments. Equipped with single AMD EPYC 7003/7002 processors, it supports up to 2TB ECC memory and provides extensive connectivity and expansion options.

    Nøkkelfunksjoner

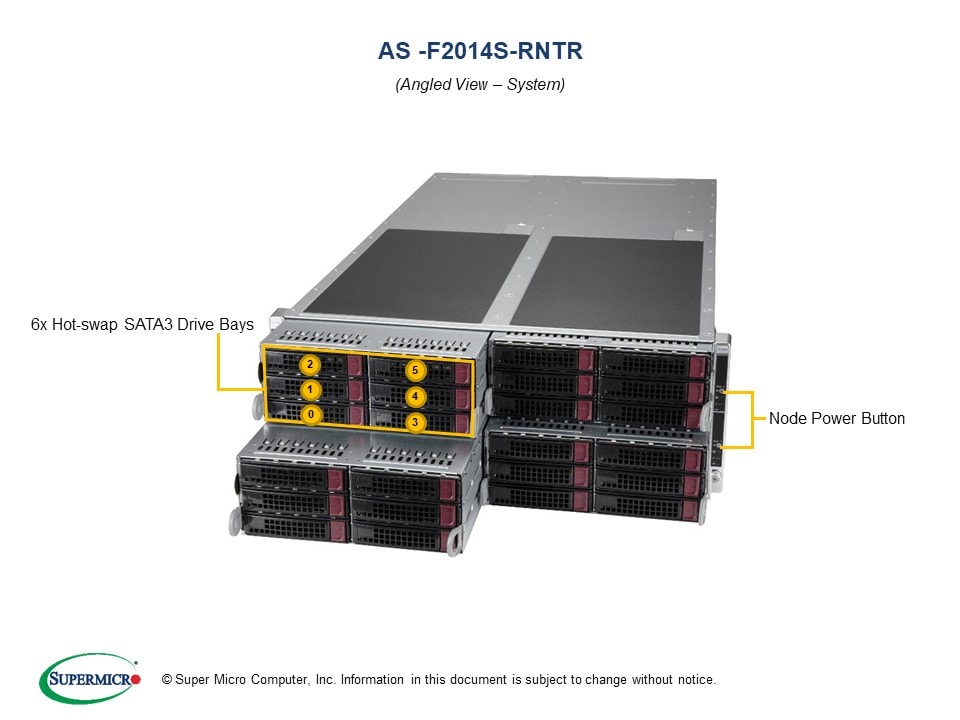

    • 4 Hot-pluggable System Nodes in a 4U form factor. Each node supports:
    • Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • Up to 2TB ECC 3DS LRDIMM, up to DDR4-3200MHz; 8 DIMM slots
    • Expansion slots: 1 PCI-E 4.0 x16 (LP Riser) 1 PCI-E 4.0 x8 (for Internal RAID AOC)
    • AIOM Network card, 1 dedicated IPMI LAN port
    • 1 VGA, 2 USB 3.0 ports
    • 8 Hot-swap 3.5" drive bays: Front 6 SATA (Optional NVMe support), Rear 2 SATA/NVMe M.2 Interface : 4 SATA/PCI-E 4.0 x4 M.2 Form Factor : 2242, 2260, 2280, 22110 M.2 Key : M-Key
    • 2x 8cm 13.5K RPM middle fans
    • 2200W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)

    Viktige bruksområder

    • Hyperscale / Hyperconverged
    • HPC and Big Data
    • Data Center Enterprise Applications
    • Scale Out Storage
    • Telco Data Center
    • Virtualization Server

    Beskrivelse

    The Supermicro AS-F2014S-RNTR features 4 hot-pluggable system nodes in a 4U form factor, each node supporting a single AMD EPYC 7003/7002 Series processor with up to 64 cores. It offers up to 2TB ECC 3DS LRDIMM at DDR4-3200MHz across 8 DIMM slots. Expansion capabilities include 1 PCI-E 4.0 x16 (LP Riser) and 1 PCI-E 4.0 x8 slots, along with AIOM Network card support and a dedicated IPMI LAN port. The server also features 8 hot-swap 3.5" drive bays and 2x 8cm 13.5K RPM middle fans. Power redundancy is ensured with 2200W Titanium Level power supplies. Ideal for applications in hyperscale, hyperconverged, HPC, big data, data center enterprises, telco data centers, and virtualization servers.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    AS -F2014S-RNTR
    • A+ Server F2014S-RNTR ( Black )
    Motherboard
    Installed Motherboard
    • Super H12SSFR-AN6
    Processor/Chipset (per Node)
    CPU
    • Single AMD EPYC™ 7003/7002 Series Processor(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • Socket SP3
    • Supports CPU TDP / cTDP up to 280W*
    Cores
    • Up to 64 Cores
    Note
    • * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Safe Consulting Technical Support for additional information about specialized system optimization
    System Memory (per Node)
    Memory Capacity
    • 8 DIMM slots
    • Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
    • 8-channel memory bus
    Memory Type
    • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
    Memory Sizes
    • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SATA3 (6Gbps)
    Network Controllers
    • Flexible networking via AIOM (not included, must add 1 per node)
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2600 BMC
    Input / Output (per node)
    LAN
    • Flexible networking via AIOM
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    VGA
    • 1 VGA port
    Others
    • 1 COM port
    • 1 TPM 2.0 header
    System BIOS
    BIOS Type
    • 256Mb SPI Flash EEPROM with AMI BIOS
    Management
    Software
    • IPMI 2.0
    • KVM with dedicated LAN
    • SSM , SUM
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • ACPI Power Management
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 4U Rackmount
    Model
    • CSE-F424AS3-R2K20BP
    Dimensions and Weight
    Width
    • 17.63" (448mm)
    Height
    • 6.96" (177mm)
    Depth
    • 29" (737mm)
    Package
    • 28.3" (W) x 15.0" (H) x 42.4" (D)
    Weight
    • Net Weight: 150 lbs (68.04 kg)
    • Gross Weight: 200 lbs (90.71 kg)
    Available Colors
    • Black
    Front Panel (per node)
    Buttons
    • Power On/Off button
    • UID button
    LEDs
    • Power status LED
    • Hard drive activity LED
    • Network activity LEDs
    • Information LED (UID, Fan failure, Overheat)
    Expansion Slots (per node)
    PCI-Express
    • 1 PCI-E 4.0 x16 (Low-profile riser)
    • 1 PCI-E 4.0 x8 (Internal RAID AOC)
    Drive Bays (per node)
    Hot-swap
    • 8 Hot-swap 3.5" drive bays: Front 6 SATA (optional NVMe support), Rear 2 SATA/NVMe
    M.2
    • M.2 Interface: 4 SATA/PCI-E 4.0 x4
    • M.2 Form Factor: 2242, 2260, 2280, 22110
    • M.2 Key: M-Key
    System Cooling (per node)
    Fans
    • 2x 8cm 13.5K RPM middle fans
    Power Supply
    • 2200W Redundant Power Supplies with PM Bus
    Total Output Power and Input
    • 1200W with Input 100-127Vac
    • 1800W with Input 200-220Vac
    • 1980W with Input 220-230Vac
    • 2090W with Input 230-240Vac
    • 2200W with Input 220-240Vac (for UL/cUL use only)
    • 2090W with Input 230-240Vdc (for CCC only)
    AC Input Frequency
    • 50-60Hz
    Dimension(W x H x L)
    • 76 x 40 x 336 mm
    +12V
    • Max: 100A / Min: 0A (100-127Vac)
    • Max: 150A / Min: 0A (200-220Vac)
    • Max: 165A / Min: 0A (220-230Vac)
    • Max: 174.17A / Min: 0A (230-240Vac)
    • Max: 183.3A / Min: 0A (220-240Vac)
    5VSB
    • Max: 1A / Min: 0A
    Output Type
    • Backplanes (gold finger)
    Certification
    • Titanium Level
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:-40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    General
    Backplane
    • 1 SATA/NVMe backplane

    Valgfrie Opsjoner

    Part Number Quantity Description
    Software
    SFT-DCMS-Single1DataCenter Management Package (per node license)
