H12SSW-NTR, CSE-802TS-R804WBP

SKU:

ASG-1014S-ACR12N4H

Brand:

Supermicro

Produktnotat:

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 1 CPUs, 4 DIMMs, 1 Storage Device and 1 Server-Grade M.2)

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

kr 40 873,69 40873.69 NOK kr 40 873,69 Ekskl. mva

kr 40 873,69 Ekskl. mva

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Salgsbetingelser

Beskrivelsesammendrag

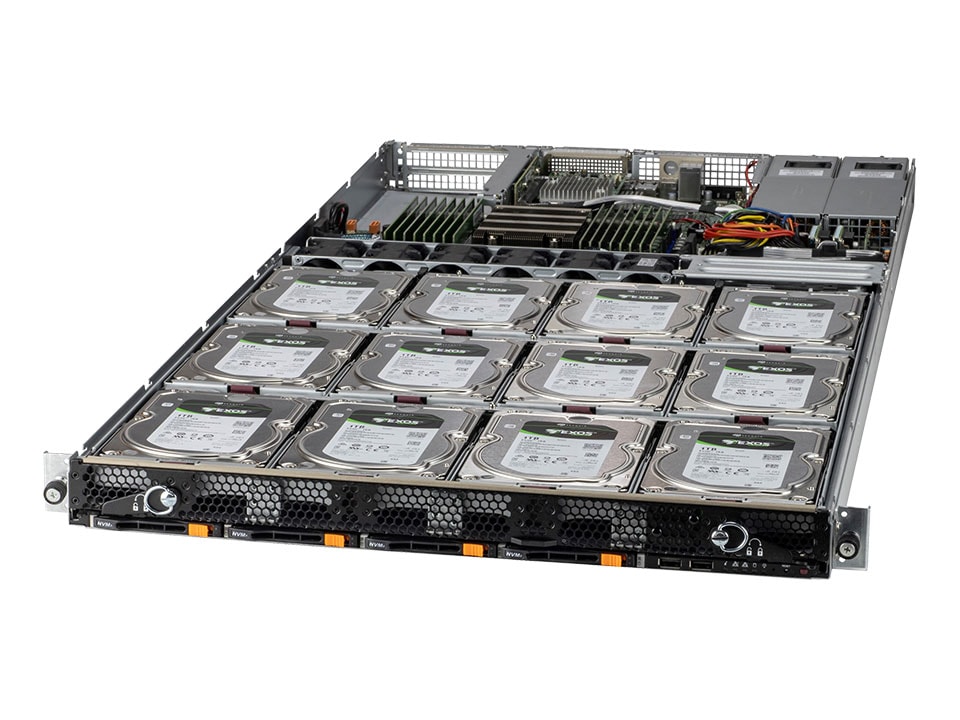

The Supermicro ASG-1014S-ACR12N4H is a high-performance 1U storage server designed for hyperscale data centers and big data analytics. It supports a single AMD EPYC™ 7003/7002 Series Processor with up to 4TB 3DS ECC Registered DDR4-3200MHz RDIMM/LRDIMM.

Nøkkelfunksjoner

Single AMD EPYC™ 7003/7002 Series Processor (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
16 DIMMs; Up to 4TB 3DS ECC Registered DDR4-3200MHz RDIMM/LRDIMM
2 PCIe 4.0 x16 (FHHL) Slots, 1 PCIe 4.0 x16 (LP) Slot
2x 10GBase-T LAN ports via Broadcom BCM57416 Controller
12x 3.5" SAS3/SATA3 Hot-Swap Drive Bays, 4x 2.5" 7mm U.2 NVMe Hot-Swap Drive Bays
800W Redundant Power SuppliesPlatinum Level High-efficiency(Full redundancy based onconfiguration and application load.)
RAID support via Broadcom® 3916
1 VGA, 1 COM, 4 USB3.0 (4 Rear, 1 Type A), 2 USB2.0 (2 Front)

Viktige bruksområder

Database Applications
Hyperscale Data Center
Object Storage
Big Data Analytics
Scale-Out Density
Hadoop & Ceph storage solutions
Scale-out NAS

Beskrivelse

The Supermicro ASG-1014S-ACR12N4H is built for high-density and high-performance applications. It features a single AMD EPYC™ 7003/7002 Series Processor, 16 DIMM slots supporting up to 4TB DDR4 memory, and extensive I/O options. The system has 12 SAS3/SATA3 hot-swap drive bays and 4 U.2 NVMe hot-swap drive bays for exceptional storage capabilities, making it ideal for database applications, object storage, and scale-out NAS. Enhanced with redundant 800W Platinum Level power supplies, this server ensures reliable performance.

Produktspesifikasjoner

Specification	Details
Product SKUs
SKUs	A+ Server ASG-1014S-ACR12N4H Standard version with PWS-804P-1R (Platinum Level) A+ Server ASG-1014S-ACR12N4H-EU European version with PWS-862A-1R (Titanium Level)
Motherboard
Installed Motherboard	Super H12SSW-NTR
Processor
CPU	Single Socket SP3 AMD EPYC™ 7003/7002 Series Processor
Note	Supports up to 240W TDP CPUs (Air Cooled)
System Memory
Memory	Slot Count: 16 DIMM slots/8 Channels Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage	1.2V
On-Board Devices
SAS	SAS (12Gbps) via Broadcom® 3916; RAID 0/1/5/6/10/50/60 support
NVMe	NVMe; (Native)
Chipset	AMD System on Chip
Network Connectivity	2 RJ45 10GBASE-T with Broadcom® BCM57416
Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port(s) 2 RJ45 10 GBASE-T LAN port(s) (Broadcom® BCM57416)
USB	2 USB 2.0 Type-A port(s) (front) 4 USB 3.0 Type-A port(s) (Rear)
Video	1 VGA port(s) (Rear)
Serial	1 COM port(s) (Rear)
DOM	2 Super DOM (Disk on Module) port(s) with built-in power
TPM	1 TPM header
System BIOS
BIOS Type	AMI 256MB SPI Flash EEPROM
Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Chassis
Form Factor	1U Rackmount
Model	CSE-802TS-R804WBP
Dimensions and Weight
Height	1.7"
Width	17.6"
Depth	37"
Package	12" (H) x 27" (W) x 53.15" (D)
Weight	Gross Weight: 58 lbs (26.3 kg) Net Weight: 39.5 lbs (17.9 kg)
Available Color	Black
Front Panel
LED	HDD activity Network activity Power status System information (overheat/UID)
Buttons	Power On/Off
Expansion Slots
PCI-Express (PCIe) Configuration	Default: 1 PCIe 4.0 x16 (in x16) HHHL slot 2 PCIe 4.0 x16 (in x16) FHHL slots
M.2	2 M.2 PCIe 4.0 x2 NVMe slots (M-key 22110(default)/2280)
Drive Bays / Storage
Drive Bays Configuration	Default: Total 16 bays: 12 internal hot-swap 3.5" SAS/SATA drive bays 4 front hot-swap 7mm PCIe 4.0 x2 NVMe drive bays
M.2	2 M.2 PCIe 4.0 x2 NVMe slots (M-key 22110(default)/2280)
System Cooling
Fans	6 Heavy Duty 4cm Fan(s)
Power Supply
2x 800W Redundant (1 + 1) Platinum Level (94%) power supplies	Dimension (WxHxL): 54.5 x 40.25 x 220 mm AC Input: 750W: 100-127Vac / 50-60Hz 800W: 200-240Vac / 50-60Hz 800W: 230-240Vdc / 50-60Hz +12V: Max: 62.5A / Min: 0.5A (100Vac-127Vac) Max: 66.6A / Min: 0.5A (200Vac-240Vac) Max: 66.6A / Min: 0.5A (230Vdc-240Vdc) 5V SB: Max: 4A / Min: 0A Output Type: Backplanes (gold finger)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
