ULI-224TC Ind. RS-232 to RS-422/485 CNVTR

SKU: BB-485LDRC9
GTIN (EAN/UPC): 0835788108248
Brand: Advantech
https://safeconsulting.no/web/image/product.template/13052/image_1920?unique=a170b45

kr 1 444,02 1444.02 NOK kr 1 444,02 Ekskl. mva

kr 1 444,02 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Beskrivelsesammendrag

    The BB-485LDRC9 is a robust RS-232 to RS-422/485 converter designed for industrial applications. It features a wide operating temperature range and high-voltage isolation. Ideal for extending data up to 1.2 km with optical isolation and automatic data send control.

    Nøkkelfunksjoner

    • RS-232 to RS-422/485 conversion
    • Extended data reach up to 1.2 km
    • 2 kV optical isolation
    • Wide operating temperature range
    • Modbus compatibility
    • UL Recognized, NEMA TS2

    Viktige bruksområder

    • Industrial Automation
    • Remote Data Acquisition
    • SCADA Systems

    Beskrivelse

    BB-485LDRC9 is designed to convert RS-232 to RS-422/485, supporting data transmission over long distances up to 1.2 km. It includes 2 kV input/output optical isolation and is Modbus compatible. The unit operates in temperatures from -40 to +80 °C and is UL Recognized and NEMA TS2 compliant.

    Produktspesifikasjoner

    Specification Details
    General
    Isolation
    • 2kV

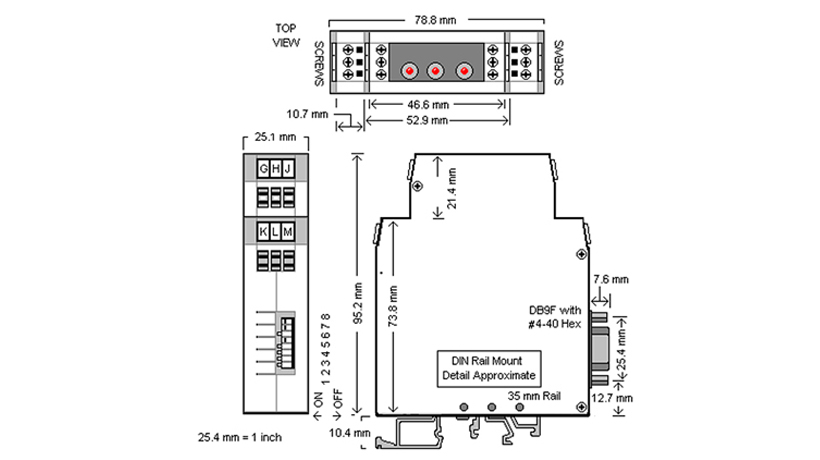

    Mounting
    • DIN
    Power
    • 10-30VDC
    Technology
    • Serial
    Temperature
    • -40 to 80C
    Power
    Power Input (DC)
    • 10 ~ 30 VDC
    Protection
    Isolation
    • 2,000 VDC
    Surge Protection
    • 500W
    Serial Communication
    Maximum Serial Transmission Speed
    • 19.2 Kbps
    Serial Converter
    • RS-232 to RS-422/485
    Serial Port Connector Type
    • 1 x DB9 Female, 1 x Terminal Block
    Serial Port Number
    • 1
    Environment
    Operating Temperature
    • -40 ~ 80°C (-40 ~ 176°F)
    Accessory General
    Mounting
    • DIN
