Beskrivelsesammendrag

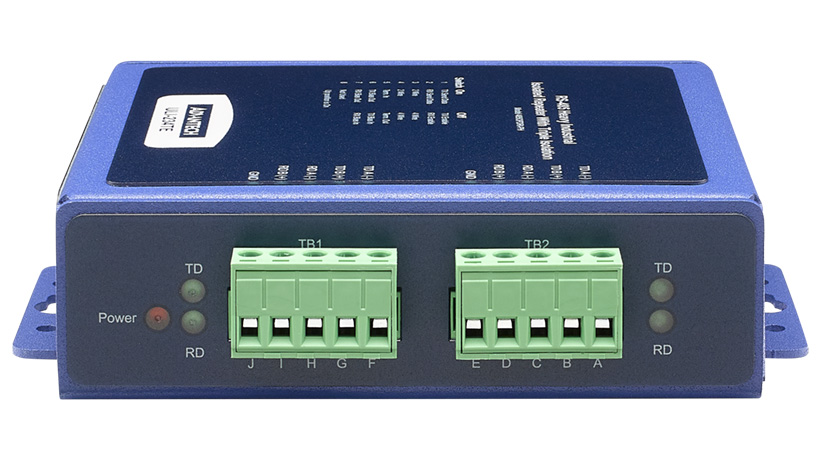

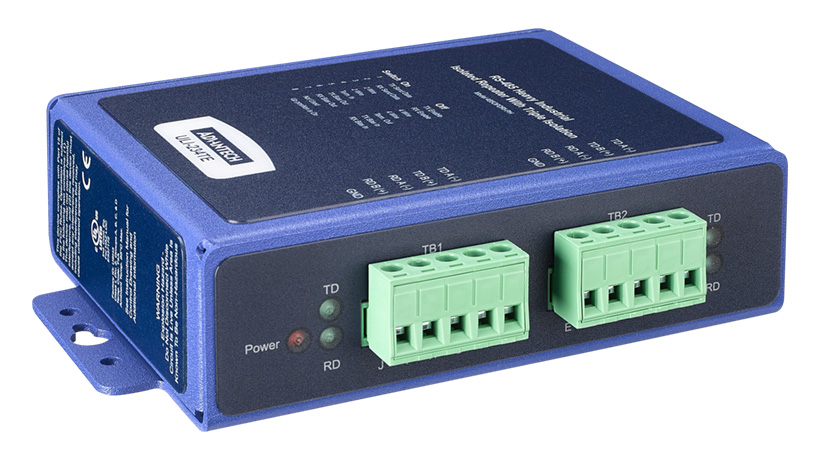

The BB-485OPDRI-PH is a heavy industrial circuit module that serves as an RS-422/485 isolated extender with robust certifications and specifications for harsh environments.
Nøkkelfunksjoner
- IEEE-61850-3, IEEE-1613 Compliant
- NEMA TS2 Certified
- -40 to 85°C Operating Temperature
- Rugged IP30 Metal Panel Case
- 50G Shock, 4G Vibration Tolerance
- 2kV Triple Isolation
- 10 to 48 VDC Input Power
Beskrivelse
This circuit module offers 2kV isolation, operates under rugged conditions from -40 to 85°C, and supports high shock and vibration tolerances. It is suitable for industrial applications requiring reliable RS-422/485 serial communication.
Produktspesifikasjoner
| Specification | Details |
|---|---|
| General | |
| Isolation |
|
| Mounting |
|
| Power |
|
| Power and Data Isolated |
|
| Serial Type |
|
| Technology |
|
| Temperature |
|
| Power | |
| Power Input (DC) |
|
| Protection | |
| Isolation |
|
| Surge Protection |
|
| Serial Communication | |
| Maximum Serial Transmission Speed |
|
| Repeater Maximum Distance |
|
| Serial Port Connector Type |
|
| Serial Port Number |
|
| Serial Standard |
|
| Environment | |
| Operating Temperature |
|
| Mechanism | |
| Enclosure (Metal) |
|
| Certification | |
| Safety |
|
| Substation |
|
| Accessory General | |
| Mounting |
|
