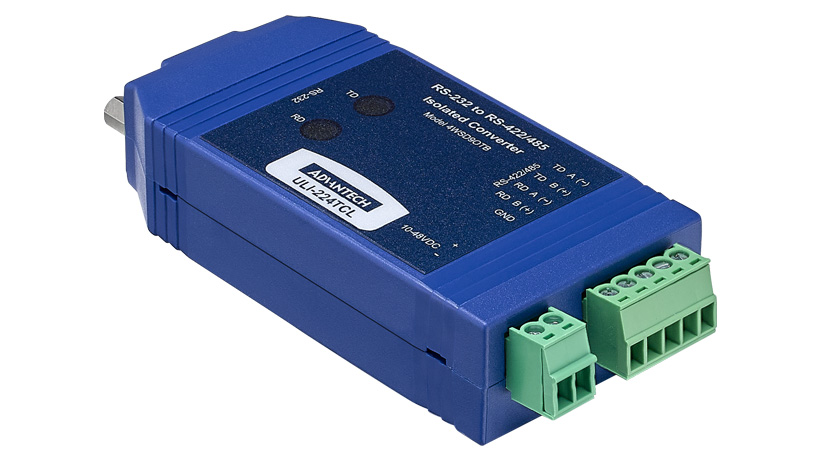

ULI-224TCL RS-232 to Iso. RS-422/485 CNVTR

SKU: BB-4WSD9OTB
GTIN (EAN/UPC): 0835788108309
Brand: Advantech
https://safeconsulting.no/web/image/product.template/13100/image_1920?unique=1af942d

kr 1 008,07 1008.07 NOK kr 1 008,07 Ekskl. mva

kr 1 008,07 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Beskrivelsesammendrag

    Achieve effective serial communication with the ULI-224TCL, offering RS-232 to RS-422/485 conversion. Includes 2kV isolation and operates from 0 to 70°C, suitable for industrial settings.

    Nøkkelfunksjoner

    • RS-232 to RS-422/485 conversion
    • 2kV optical isolation
    • Automatic send data control
    • Inline mounting capability
    • Wide operating temperature range
    • Modbus compatible
    • Supports 10-48VDC power input
    • Robust design for industrial use

    Viktige bruksområder

    • Industrial Automation Systems
    • Data Acquisition Applications

    Beskrivelse

    The ULI-224TCL converter simplifies serial communication by converting RS-232 signals to isolated RS-422/485. It features 2kV optical isolation for enhanced signal integrity. Perfect for industrial environments, it supports Modbus compatibility and automatic send data control, eliminating the need for additional software drivers. Designed for inline mounting, it operates efficiently between 0 to 70°C. Power it with 10-48VDC for reliable performance.

    Produktspesifikasjoner

    Specification Details
    General
    Isolation
    • 2kV
    Mounting
    • Inline
    Power
    • 10-48VDC
    Technology
    • Serial
    Temperature
    • 0 to 70°C
    Power
    Power Input (DC)
    • 10 ~ 48 VDC
    Protection
    Isolation
    • 2,000 VDC
    Serial Communication
    Maximum Serial Transmission Speed
    • 115.2 Kbps
    Serial Converter
    • RS-232 to RS-422/485
    Serial Port Connector Type
    • 1 x DB9 Female, 1 x Terminal Block
    Serial Port Number
    • 1
    Environment
    Operating Temperature
    • 0 ~ 70°C (32 ~ 158°F)
