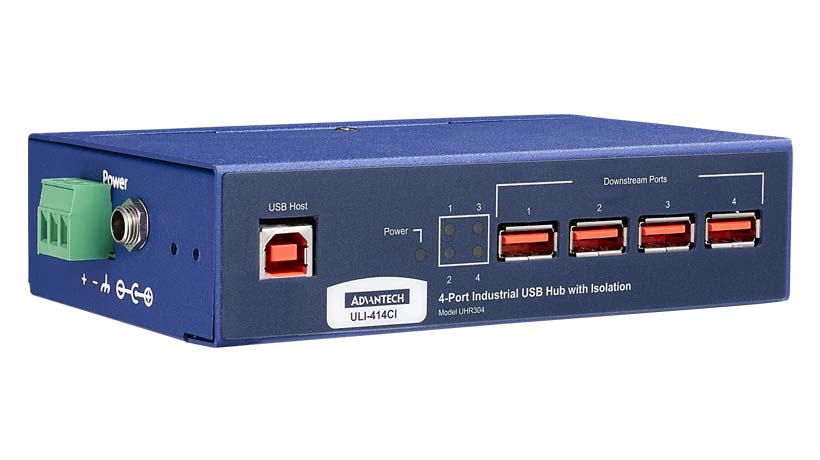

ULI-414CI Ind. 4 x Iso. USB 2.0 Hub

SKU: BB-UHR304
GTIN (EAN/UPC): 0835788108446
Brand: Advantech
https://safeconsulting.no/web/image/product.template/13053/image_1920?unique=9fe4ff9

kr 3 560,49 3560.4900000000002 NOK kr 3 560,49 Ekskl. mva

kr 3 560,49 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Beskrivelsesammendrag

    The ULI-414CI is a 4-port industrial USB 2.0 hub offering high retention connectors and 4 kV isolation. It supports harsh environments, with an operating range from -40 to +80 °C. The hub ensures safety with CE, FCC, UL, and Division 2 certifications.

    Nøkkelfunksjoner

    • 4-Port USB 2.0 Expansion
    • High Retention Connectors
    • 4 kV Isolation Protection
    • Wide Temperature Range
    • Rugged Metal Enclosure
    • CE, FCC, UL Certified
    • DIN, Panel Mounting Options

    Viktige bruksområder

    • Industrial Automation
    • Data Logging
    • Factory Equipment
    • Harsh Environment Connectivity

    Beskrivelse

    The ULI-414CI is an industrial-grade USB 2.0 hub designed for harsh environments. It features 4 kV isolation and high retention connectors, expanding one USB port into four. The unit operates within temperatures from -40 to +80 °C and is housed in a rugged metal case, making it suitable for desk, DIN rail, or panel mounting.

    Produktspesifikasjoner

    Specification Details
    General
    Technology
    • USB
    Mounting
    • DIN
    • Panel
    USB Port Count
    • 1
    Power
    Power Input (DC)
    • 10 ~ 30 VDC
    Environment
    Operating Temperature
    • -40 ~ 80°C (-40 ~ 176°F)
    Certification
    Safety
    • CE
    • FCC
    • UL/cUL 60950-1
    • Class I, Division 2
    Protection
    Isolation
    • 4,000 VDC
    ESD Protection
    • 8 kV (Contact)
    • 15 kV (Air)
    Upstream USB Port
    Standard
    • USB 2.0
    Maximum Transfer Rate
    • Full-Speed (12 Mbps)
    Connector Type
    • Type B (Female)
    High Retention Port Number
    • 1
    Downstream USB Port
    Standard
    • USB 2.0
    Maximum Transfer Rate
    • Full-Speed (12 Mbps)
    Connector Type
    • Type A (Female)
    High Retention Port Number
    • 4
    Supply Current
    • 500mA for each downstream port
    Mechanism
    Enclosure
    • Metal
    Accessory General
    Mounting
    • DIN
