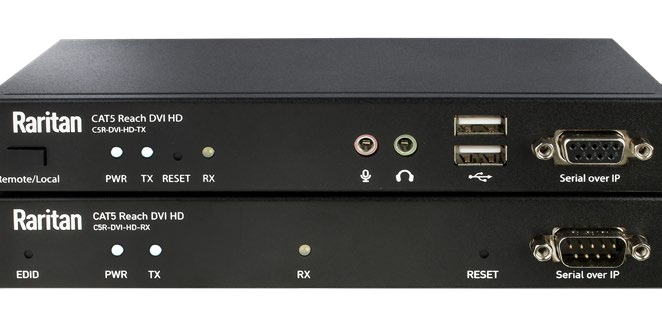

Raritan C5R-DVI-HD

• Transmitter & receiver
• Wired Maximum transfer distance: 1000 m
• Transmitter video port type: DVI-I
• Receiver local video port type: DVI-I Receiver local keyboard/mouse port type: USB
• Power consumption (transmitter) (max): 4.59 W Power consumption (receiver) (max): 3.35 W
• Black

• Remote server and PC management
• KVM switching and control
• Secure IT infrastructure setup
• Data center management solutions
• Broadcasting video signals
• Audio-video device control
• Extending console access
• Use in non-harsh environments

over Cat5 provides 1080p HD video quality while enabling remote access to DVI and VGA ports on PCs, servers or KVM switches. The remote user console (USB keyboard, USB mouse, video and audio control) can be located from 100 meter/330 feet to 1,000 meter/3,300 feet away from the remote device (via Ethernet switch daisy-chaining); enabling storage in separate, secure, non-harsh environments. The solution also provides support for speakers and microphones.

Minimize your risk, store your PCs, servers or KVM switches in secure, non-harsh environments, while still having remote access and control. Support for a wide range of configurations and Raritan KVM switches.

Superior Video Resolution
Up to 1920x1200 high definition video resolution and video sharing to multiple receivers via Ethernet switches.

Local and Remote Console Access
Dual console support enables local and remote control up to 330 feet via a single Cat5 cable (3,300 feet via daisy-chained Ethernet switches) away from the remote device.

Broadcasting Connections
One transmitter can be connected to multiple receivers so that more than one remote user can view the computer or audio/video device connected to the transmitter. This is for broadcasting applications such as demo room or show room.

Multiple Connections
The remote user console supports USB keyboard, USB mouse, USB peripherals, DVI/VGA video, audio speaker, microphone, EDID emulation, and a serial device.
