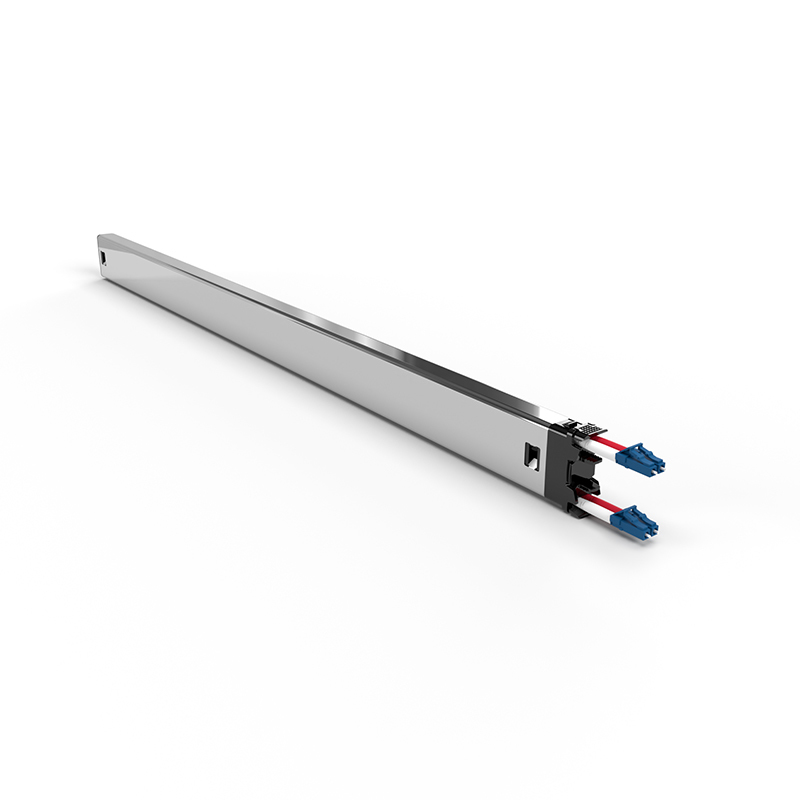

PATCHBOX Plus+ Cassette OS2 LC-LC

SKU: C60SMAOS211X1Y
Brand: Patchbox
https://safeconsulting.no/web/image/product.template/13656/image_1920?unique=1ce4bbb

kr 33,00 33.0 NOK kr 33,00 Ekskl. mva

kr 33,00 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    PATCHBOX C60SMAOS211X1Y. Cable length: 1.8 m, Cable type: OFC, Fibre optic type: OS2, Connector 1: LC, Connector 2: LC, Core diameter: 9 µm, Full duplex

    Nøkkelfunksjoner

    • OFC OS2
    • 1.8 m
    • LC Male
    • LC Male
    • Connector polish type: PC
    • Jacket material: Low smoke zero halogen (LSZH)
    • 100 Gbit/s
    • Full duplex Single-mode
    • Yellow

    Viktige bruksområder

    • Data Center Cable Management
    • Network Optimization
    • High-Speed Data Transmission
    • Telecommunications Infrastructure
    • Enterprise Network Solutions

    Beskrivelse

    PATCHBOX® Cassettes are the heart of every PATCHBOX®. Each PATCHBOX® Cassette contains our unique and patented mechanism that provides state-of-the-art cable management in your network cabinet. The modular PATCHBOX® Cassettes are available in single packs and offer full customization options for the PATCHBOX®. Make sure you combine the PATCHBOX® Cassettes with the matching PATCHBOX® Frame (Plus+ or 365). The PATCHBOX® Cassettes are equipped with RoHS conform optic cables with Corning®-fibres, the most bend insensitive currently available. They are available in 2 different types (OS2 Singlemode / OM4 Multimode) and the following connector types: LC-LC or LC-SC.

    Produktspesifikasjoner

    Specification Details
    Features
    Cable length
    • 1.8
    Fibre optic type
    • OS2
    Connector 1
    • LC
    Connector 2
    • LC
    Connector 1 gender
    • Male connector
    Connector 2 gender
    • Male connector
    Connector polish type
    • PC
    Cable type
    • OFC
    Product colour
    • Yellow
    Full duplex
    • Yes
    Core diameter
    • 9
    Cladding diameter
    • 125
    Fiber mode structure
    • Single-mode
    Wavelengths supported
    • 1310,1550
    Ethernet interface type
    • 10 Gigabit Ethernet,40 Gigabit Ethernet,100 Gigabit Ethernet
    Data transfer rate
    • 100
    Insertion loss
    • 0.1
    Jacket material
    • Low smoke zero halogen (LSZH)
    Connector material
    • Ceramic
    Certificates
    Certification
    • CE
    Operational conditions
    Operating temperature (T-T)
    • 10 - 45
    Packaging data
    Package width
    • 50
    Package depth
    • 690
    Package height
    • 50
    Package weight
    • 400
    Packaging content
    Quantity per pack
    • 1
    Other features
    Material
    • Polyoxymethylene (POM),Stainless steel
    Logistics data
    Country of origin
    • Hungary
