  2. Aten Rack Konsoll 18.5" CL3700NW

Aten Rack Konsoll 18.5" CL3700NW

SKU: CL3700NW-ATA-XG
Brand: Aten
https://safeconsulting.no/web/image/product.template/14005/image_1920?unique=21015b2

kr 21 414,80 21414.8 NOK kr 21 414,80 Ekskl. mva

kr 21 414,80 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    ATEN 1U Short Depth USB HDMI Single Rail Full. Display diagonal: 47 cm (18.5"), Display resolution: 1920 x 1080 pixels, Display: TFT-LCD. Interface: HDMI, Keyboard port type: USB, Mouse port type: USB. AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz, Input current: 1 A. Width: 480.6 mm, Height: 477 mm, Depth: 42.8 mm. Package weight: 11.9 kg, Package width: 612 mm, Package depth: 658 mm

    Nøkkelfunksjoner

    • 47 cm (18.5") TFT 1920 x 1080 pixels 350 cd/m² 1000:1
    • Rack mounting 1U
    • Keyboard port type: USB Mouse port type: USB Video port type: HDMI
    • Metal, Plastic
    • Black

    Viktige bruksområder

    • Data Centers
    • Broadcast Vans
    • Control Rooms
    • Server Rooms
    • Network Administration
    • Remote Monitoring
    • Surveillance Systems
    • IT Infrastructure
    • Telecommunications
    • Industrial Automation

    Beskrivelse

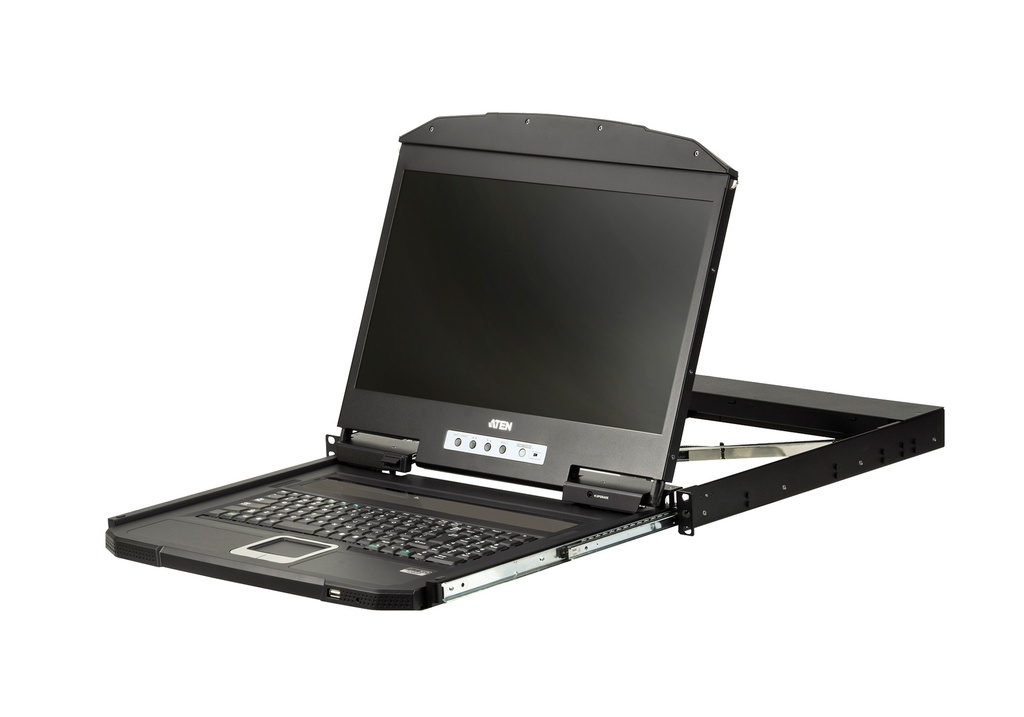

    The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3700 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.
    1x CL3700 LCD KVM Console with Standard Rack Mount Kit
    1x LIN5-28V1-V11G USB HDMI KVM Cable (HDMI, USB, Audio; 1.8 m/6 ft)
    1x LIN5-04A2-J15G Firmware Upgrade Cable
    1x LIN2-418K-E12G Power Cord
    1x User Instructions

    Produktspesifikasjoner

    Specification Details
    Display
    Display diagonal
    • 18.5
    Display resolution
    • 1920 x 1080
    Display
    • TFT-LCD
    Display brightness
    • 350
    Contrast ratio (typical)
    • 1000:1
    Viewing angle, horizontal
    • 178
    Viewing angle, vertical
    • 178
    Pixel pitch
    • 0.213 x 0.213
    Aspect ratio
    • 16:9
    Display type
    • TFT
    Response time
    • 20
    Display number of colours
    • 16.78 million colours
    Technical details
    Material
    • Metal,Plastic
    Product colour
    • Black
    Rack mounting
    • Yes
    Rack capacity
    • 1U
    Ports & interfaces
    3.5 mm (1/8-inch) in
    • Yes
    Interface
    • HDMI
    Keyboard port type
    • USB
    Mouse port type
    • USB
    Video port type
    • HDMI
    USB 2.0 Type-A ports quantity
    • 3
    USB 2.0 Type-B ports quantity
    • 1
    Power
    AC adapter input voltage
    • 100 - 240
    AC adapter frequency
    • 50/60
    Input current
    • 1
    Operational conditions
    Operating temperature (T-T)
    • 0 - 40
    Storage temperature (T-T)
    • -20 - 60
    Weight & dimensions
    Width
    • 480.6
    Height
    • 477
    Depth
    • 42.8
    Weight
    • 10130
    Packaging data
    Package weight
    • 11900
    Package width
    • 612
    Package depth
    • 658
    Package height
    • 135
    Logistics data
    Master (outer) case net weight
    • 10130
    Master (outer) case width
    • 612
    Master (outer) case length
    • 658
    Master (outer) case height
    • 135
    Master (outer) case gross weight
    • 12580
    Products per master (outer) case
    • 1
