  2. Aten KVM IP on the NET CN9950

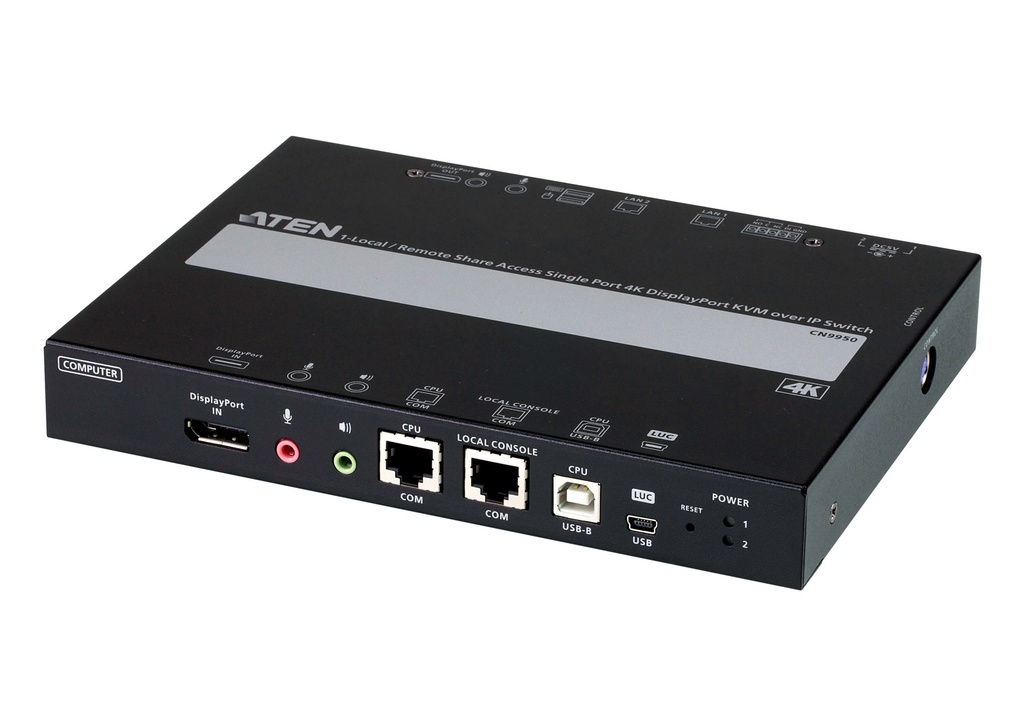

Aten KVM IP on the NET CN9950

SKU: CN9950-AT-G
Brand: Aten
https://safeconsulting.no/web/image/product.template/14000/image_1920?unique=c9ba3b1

kr 10 950,50 10950.5 NOK kr 10 950,50 Ekskl. mva

kr 10 950,50 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    ATEN 1-Local/Remote Share Access Single Port 4K DisplayPort KVM over IP Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 30 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 5 V, Power consumption (typical): 9.76 W. Width: 149.3 mm, Depth: 200 mm, Height: 28.5 mm

    Nøkkelfunksjoner

    • Black
    • Keyboard port type: USB Mouse port type: USB Video port type: DisplayPort
    • 4K Ultra HD 4096 x 2160 pixels
    • Housing material: Metal
    • DC 9.76 W

    Viktige bruksområder

    • Remote Server Management
    • Data Center KVM Operations
    • 4K Display Connectivity
    • High-Resolution IT Environments
    • Network Equipment Rooms

    Beskrivelse


    1x CN9950 4K DisplayPort KVM over IP Switch
    1x DisplayPort cable
    1x USB cable (USB-A to USB-B)
    1x USB cable (USB-A to Mini-USB)
    1x power adapter
    1x control terminal block
    1x mounting kit
    1x foot pad set
    1x user instructions

    Produktspesifikasjoner

    Specification Details
    Ports & interfaces
    Keyboard port type
    • USB
    Mouse port type
    • USB
    Video port type
    • DisplayPort
    DisplayPorts quantity
    • 2
    USB 2.0 Type-B ports quantity
    • 1
    Console ports
    • 3.5mm headphone,3.5mm mic,DisplayPort,USB A
    Console USB ports quantity
    • 2
    USB connector type
    • Mini-USB B
    PS/2 ports quantity
    • 1
    Serial port type
    • RJ-45
    Serial ports quantity
    • 2
    Audio connections
    • Yes
    Headphone outputs
    • 2
    Number of microphone inputs
    • 2
    DC-in jack
    • Yes
    Network
    Ethernet LAN
    • Yes
    Ethernet LAN (RJ-45) ports
    • 2
    Performance
    HD type
    • 4K Ultra HD
    Maximum resolution
    • 4096 x 2160
    Video bandwidth
    • 30
    Design
    Product colour
    • Black
    Housing material
    • Metal
    LED indicators
    • Yes
    Display
    Built-in display
    • No
    Power
    Power source
    • DC
    Input voltage
    • 5
    Power consumption (typical)
    • 9.76
    Operational conditions
    Operating temperature (T-T)
    • 0 - 50
    Storage temperature (T-T)
    • -20 - 60
    Operating relative humidity (H-H)
    • 0 - 80
    Weight & dimensions
    Width
    • 149.3
    Depth
    • 200
    Height
    • 28.5
    Weight
    • 1250
    Packaging data
    Package width
    • 98
    Package depth
    • 325
    Package height
    • 210
    Package weight
    • 1670
    Packaging content
    Cables included
    • DisplayPort,USB,USB Type-A to USB Type-B
    Manual
    • Yes
    AC adapter included
    • Yes
    Logistics data
    Master (outer) case net weight
    • 6250
    Harmonized System (HS) code
    • 85176200
    Master (outer) case width
    • 342
    Master (outer) case length
    • 512
    Master (outer) case height
    • 232
    Master (outer) case gross weight
    • 8980
    Products per master (outer) case
    • 5
