Aten KVM 4-PC 1-Bruker CS1644A
| SKU: | CS1644A-AT-G |
| Brand: | Aten |
Beskrivelsesammendrag
ATEN 4-Port USB DVI Dual-View KVM Switch with Audio & USB 2.0 Hub (KVM cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-I. HD type: WQXGA, Maximum resolution: 2560 x 1600 pixels, Video bandwidth: 60 Hz. Product colour: Black, Rack capacity: 1U, Housing material: Metal, Plastic. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 12.19 W. Other operating systems supported: FreeBSD
Nøkkelfunksjoner
- Rack mounting 1U Black
- Number of computers controlled: 4
- Keyboard port type: USB Mouse port type: USB Video port type: DVI-I
- WQXGA 2560 x 1600 pixels
- Housing material: Metal, Plastic
- Hot keys
- DC 12.19 W
Viktige bruksområder
- Data Centers
- IT Management
- Server Rooms
- Corporate Networks
- Control Rooms
Beskrivelse

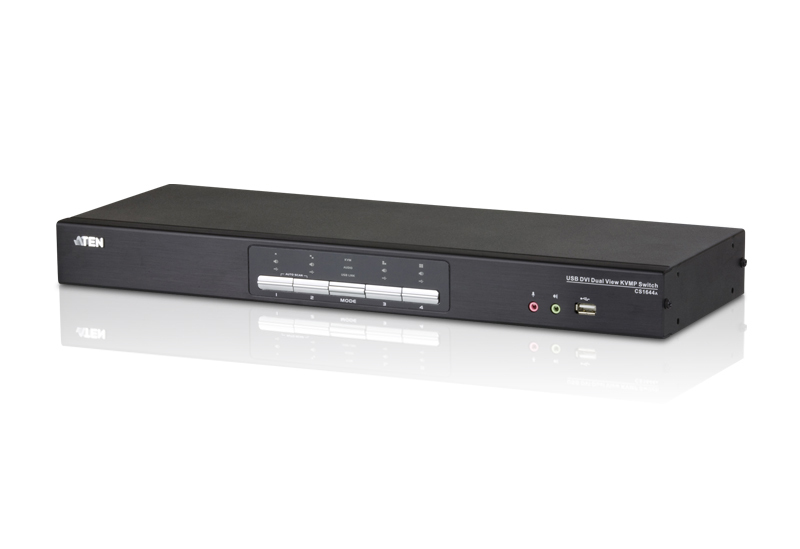

The CS1644A 4-Port USB DVI Dual View KVMP™ Switch is a multi-application device that integrates a 4-port KVM switch with 2-port USB hub. The newest version now supports Quad-View functionality with two Dual View KVM Switches connected.
1 x CS1644A 4-Port USB DVI Dual View KVMP™ Switch
8 x (4 x 2L-7D02UD- 4 x LIN5-26W1-W11G) Custom DVI-D Dual Link Cable Sets (1.8m)
1 x 0AD8-1605-24M1 Power Adapter
1 x User Instructions
Produktspesifikasjoner
| Specification | Details |
|---|---|
| Ports & interfaces | |
| Number of computers controlled |
|
| Keyboard port type |
|
| Mouse port type |
|
| Video port type |
|
| DVI-I ports quantity |
|
| USB 2.0 Type-B ports quantity |
|
| Console ports |
|
| Console USB ports quantity |
|
| USB hub |
|
| USB 2.0 Type-A hub ports quantity |
|
| USB connector type |
|
| Audio connections |
|
| Headphone outputs |
|
| Number of microphone inputs |
|
| DC-in jack |
|
| Network | |
| Ethernet LAN (RJ-45) ports |
|
| Performance | |
| HD type |
|
| Maximum resolution |
|
| Video bandwidth |
|
| Scan interval |
|
| HDCP |
|
| Design | |
| Rack mounting |
|
| Rack capacity |
|
| Product colour |
|
| Housing material |
|
| Push button |
|
| Hot keys |
|
| Display | |
| Built-in display |
|
| Power | |
| Power source |
|
| Input voltage |
|
| Power consumption (typical) |
|
| System requirements | |
| Windows operating systems supported |
|
| Linux operating systems supported |
|
| Mac operating systems supported |
|
| Other operating systems supported |
|
| Sustainability | |
| Compliance certificates |
|
| Operational conditions | |
| Operating temperature (T-T) |
|
| Storage temperature (T-T) |
|
| Operating relative humidity (H-H) |
|
| Weight & dimensions | |
| Width |
|
| Depth |
|
| Height |
|
| Weight |
|
| Packaging data | |
| Package width |
|
| Package depth |
|
| Package height |
|
| Package weight |
|
| Packaging content | |
| Cables included |
|
| Manual |
|
| Logistics data | |
| Master (outer) case net weight |
|
| Harmonized System (HS) code |
|
| Master (outer) case width |
|
| Master (outer) case length |
|
| Master (outer) case height |
|
| Master (outer) case gross weight |
|
| Products per master (outer) case |
|
