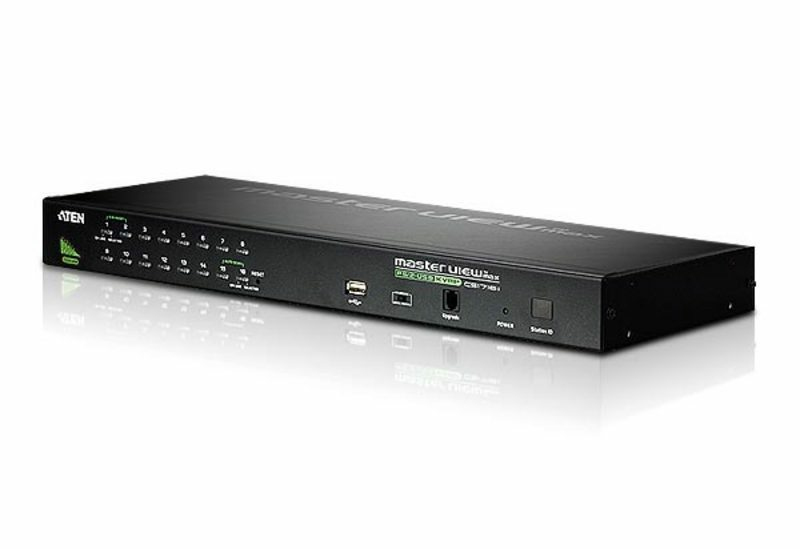

Aten KVM 16-PC 1-Bruker Rack CS1716A
| SKU: | CS1716A-AT-G |
| Brand: | Aten |
Beskrivelsesammendrag
ATEN 16-Port USB - PS/2 VGA KVM Switch with USB Peripheral port. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Scan interval: 1,255 s. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 6.6 W. Compliance certificates: RoHS
Nøkkelfunksjoner
- Rack mounting 1U Black
- Number of computers controlled: 512
- Keyboard port type: USB, PS/2 Mouse port type: USB, PS/2 Video port type: VGA
- QXGA 2048 x 1536 pixels
- Housing material: Metal
- Hot keys
- DC 6.6 W
Viktige bruksområder
- Control multiple PCs with single console
- Enterprise data centers
- Server room management
- Secure computer access
- IT infrastructure management
Beskrivelse
The CS1716A KVM switch is a control unit that allows access to multiple computers from a single PS/2 or USB console (keyboard, mouse, and monitor). A single CS1716A can control up to 16 computers. As many as 31 additional switches can be daisy-chained to each other, so that up to 512 computers can all be controlled from a single keyboard-monitor-mouse console. Additionally, a front panel USB port is available for each computer to access any peripherals connected to it on a one-at-a-time basis.
1x KVM Switch with Standard Rack Mounting Kit
1x 2L-5202P PS/2 KVM Cable
1x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G Console Cable
1x Firmware Upgrade Cable
1x Foot Pad Set(4 PCS)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
Produktspesifikasjoner
| Specification | Details |
|---|---|
| Ports & interfaces | |
| Number of computers controlled |
|
| Keyboard port type |
|
| Mouse port type |
|
| Video port type |
|
| VGA (D-Sub) ports quantity |
|
| Console ports |
|
| Console USB ports quantity |
|
| DC-in jack |
|
| Performance | |
| HD type |
|
| Maximum resolution |
|
| Scan interval |
|
| DDC2B support |
|
| Hot-Plug support |
|
| Daisy chain |
|
| Firmware upgradeable |
|
| Design | |
| Rack mounting |
|
| Rack capacity |
|
| Product colour |
|
| Housing material |
|
| LED indicators |
|
| Push button |
|
| Hot keys |
|
| Display | |
| Built-in display |
|
| On Screen Display (OSD) |
|
| Power | |
| Power source |
|
| Input voltage |
|
| Power consumption (typical) |
|
| System requirements | |
| Windows operating systems supported |
|
| Linux operating systems supported |
|
| Mac operating systems supported |
|
| Sustainability | |
| Compliance certificates |
|
| Operational conditions | |
| Operating temperature (T-T) |
|
| Storage temperature (T-T) |
|
| Operating relative humidity (H-H) |
|
| Weight & dimensions | |
| Width |
|
| Depth |
|
| Height |
|
| Weight |
|
| Packaging data | |
| Package width |
|
| Package depth |
|
| Package height |
|
| Package weight |
|
| Packaging content | |
| Cables included |
|
| Quick installation guide |
|
| AC adapter included |
|
| Rack mount kit |
|
| Logistics data | |
| Master (outer) case net weight |
|
| Harmonized System (HS) code |
|
| Master (outer) case width |
|
| Master (outer) case length |
|
| Master (outer) case height |
|
| Master (outer) case gross weight |
|
| Products per master (outer) case |
|
