  2. Aten KVM 4-PC 1-Bruker CS1764A

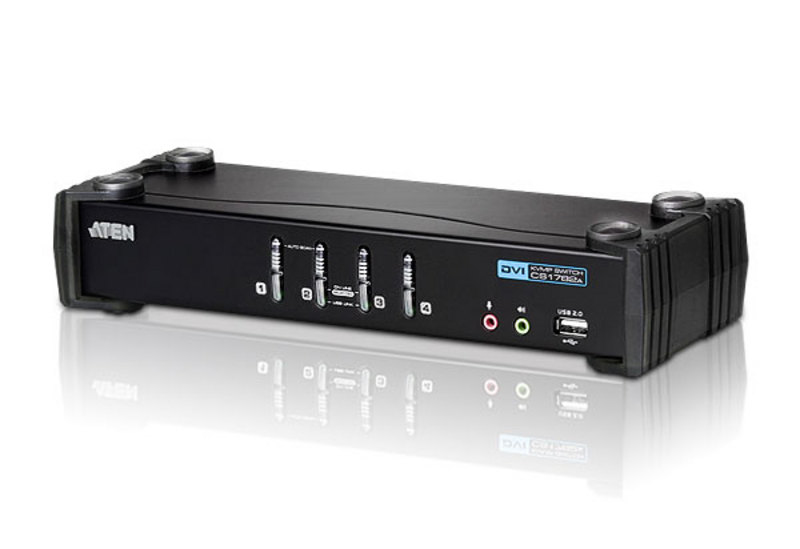

Aten KVM 4-PC 1-Bruker CS1764A

SKU: CS1764A-AT-G
Brand: Aten
https://safeconsulting.no/web/image/product.template/14075/image_1920?unique=8504195

kr 2 179,10 2179.1 NOK kr 2 179,10 Ekskl. mva

kr 2 179,10 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    ATEN 4-Port USB DVI KVM Switch with Audio & USB 2.0 Hub (KVM Cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-I. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 4.8 W. Width: 270 mm, Depth: 88 mm, Height: 55.5 mm

    Nøkkelfunksjoner

    • Black
    • Number of computers controlled: 4
    • Keyboard port type: USB Mouse port type: USB Video port type: DVI-I
    • WUXGA 1920 x 1200 pixels
    • Housing material: Metal
    • Hot keys
    • DC 4.8 W

    Viktige bruksområder

    • Data Centers
    • Enterprise Networks
    • Professional Server Rooms
    • IT Management Solutions
    • Corporate Offices
    • Educational Institutions
    • Medical Facilities
    • Industrial Automation
    • Secure Workspaces
    • Research Laboratories

    Beskrivelse

    The CubiQ™ CS1764A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
    1 x CS1764A USB 2.0 DVI KVMP™ Switch
    4 x 2L-7D02U USB DVI-D Single Link KVM Cables (1.8m)
    1 x 0AD8-1605-24M1 Power Adapter
    1 x User Instructions

    Produktspesifikasjoner

    Specification Details
    Ports & interfaces
    Number of computers controlled
    • 4
    Keyboard port type
    • USB
    Mouse port type
    • USB
    Video port type
    • DVI-I
    DVI-I ports quantity
    • 4
    USB 2.0 Type-B ports quantity
    • 4
    Console ports
    • 3.5mm headphone,3.5mm mic,DVI-I,USB A
    Console USB ports quantity
    • 4
    USB hub
    • Yes
    USB connector type
    • USB Type-A,USB Type-B
    Audio connections
    • Yes
    Headphone outputs
    • 6
    Number of microphone inputs
    • 6
    DC-in jack
    • Yes
    Performance
    HD type
    • WUXGA
    Maximum resolution
    • 1920 x 1200
    Video bandwidth
    • 60
    Scan interval
    • 1,5,99
    DDC2B support
    • Yes
    Design
    Product colour
    • Black
    Housing material
    • Metal
    LED indicators
    • Yes
    Push button
    • Yes
    Hot keys
    • Yes
    Display
    Built-in display
    • No
    Power
    Power source
    • DC
    Input voltage
    • 5.3
    Power consumption (typical)
    • 4.8
    Operational conditions
    Operating temperature (T-T)
    • 0 - 50
    Storage temperature (T-T)
    • -20 - 60
    Operating relative humidity (H-H)
    • 0 - 80
    Storage relative humidity (H-H)
    • 0 - 80
    Weight & dimensions
    Width
    • 270
    Depth
    • 88
    Height
    • 55.5
    Weight
    • 2098
    Packaging data
    Package width
    • 98
    Package depth
    • 325
    Package height
    • 210
    Package weight
    • 2408
    Packaging content
    Quick installation guide
    • Yes
    Manual
    • Yes
    Logistics data
    Master (outer) case net weight
    • 10490
    Harmonized System (HS) code
    • 85176200
    Master (outer) case width
    • 342
    Master (outer) case length
    • 512
    Master (outer) case height
    • 232
    Master (outer) case gross weight
    • 12710
    Products per master (outer) case
    • 5
