Aten KVM 2-PC 1-Bruker HDMI CS1822

SKU: CS1822-AT-G
Brand: Aten
https://safeconsulting.no/web/image/product.template/14065/image_1920?unique=8504195

kr 3 792,80 3792.8 NOK kr 3 792,80 Ekskl. mva

kr 3 792,80 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    ATEN 2-Port USB 3.0 4K HDMI KVMP™ Switch with Audio Mixer Mode. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal, Plastic. Power source: DC, Input voltage: 5 V, Power consumption (typical): 1.78 W. Width: 210 mm, Depth: 88 mm, Height: 55.5 mm

    Nøkkelfunksjoner

    • Black
    • Number of computers controlled: 2
    • Keyboard port type: USB Mouse port type: USB Video port type: HDMI
    • 4K Ultra HD 4096 x 2160 pixels
    • Housing material: Metal, Plastic
    • Hot keys
    • DC 1.78 W

    Viktige bruksområder

    • Data Centers
    • Server Management
    • IT Control Rooms
    • Professional Workstations
    • Multimedia Production

    Beskrivelse

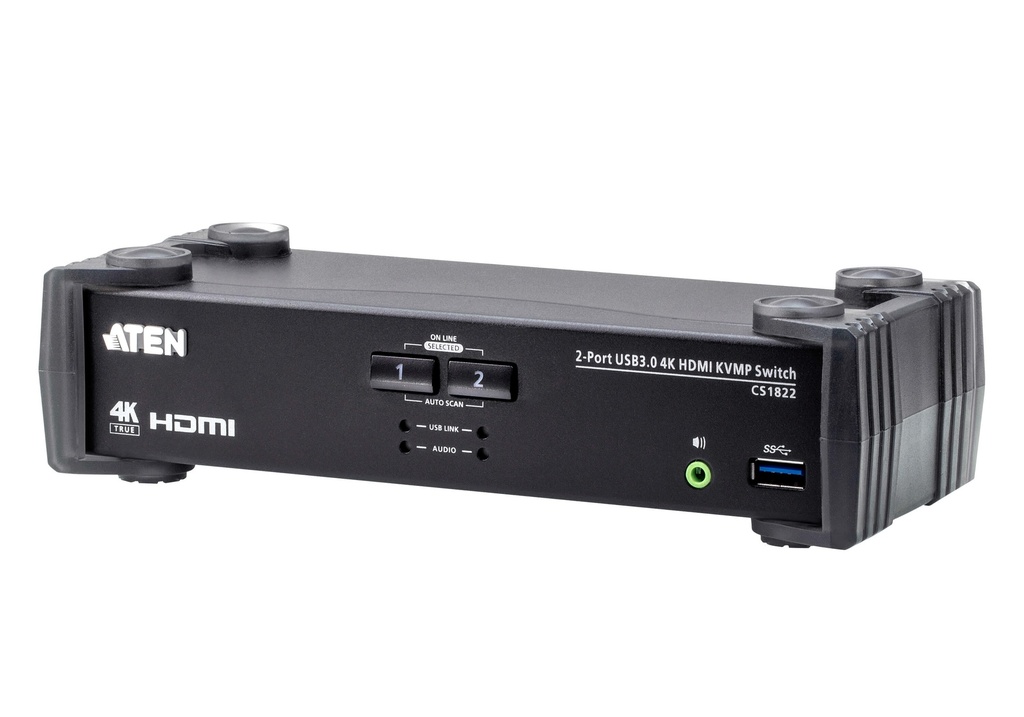

    The ATEN CS1822 KVMP™ Switch offers effortless management of two HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1822 optimizes user experience of multitasking.
    1x CS1822 2-Port USB 3.0 4K HDMI KVMP™ Switch
    2x LIN6-19V1-V18G HDMI 2.0 Cables
    2x LIN6-11C1-E12G USB 3.0 Cables
    2x LIN5-0205-21CG Audio Cables
    1x LIN2-418K-E12G Power Cord
    1x 0AD8-8005-40MG Power Adapter
    1x User Instructions

    Produktspesifikasjoner

    Specification Details
    Ports & interfaces
    Number of computers controlled
    • 2
    Keyboard port type
    • USB
    Mouse port type
    • USB
    Video port type
    • HDMI
    HDMI ports quantity
    • 2
    USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
    • 2
    Console ports
    • 3.5mm headphone,HDMI,USB A
    Console USB ports quantity
    • 2
    USB hub
    • Yes
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
    • 2
    USB connector type
    • USB Type-A,USB Type-B
    Audio connections
    • Yes
    Headphone outputs
    • 3
    Number of microphone inputs
    • 1
    DC-in jack
    • Yes
    Performance
    HD type
    • 4K Ultra HD
    Maximum resolution
    • 4096 x 2160
    Video bandwidth
    • 60
    Scan interval
    • 1,5,99
    Design
    Product colour
    • Black
    Housing material
    • Metal,Plastic
    LED indicators
    • Yes
    Push button
    • Yes
    Hot keys
    • Yes
    Display
    Built-in display
    • No
    Power
    Power source
    • DC
    Input voltage
    • 5
    Power consumption (typical)
    • 1.78
    System requirements
    Windows operating systems supported
    • Yes
    Linux operating systems supported
    • Yes
    Mac operating systems supported
    • Yes
    Operational conditions
    Operating temperature (T-T)
    • 0 - 40
    Storage temperature (T-T)
    • -20 - 60
    Operating relative humidity (H-H)
    • 0 - 80
    Storage relative humidity (H-H)
    • 0 - 80
    Weight & dimensions
    Width
    • 210
    Depth
    • 88
    Height
    • 55.5
    Weight
    • 1390
    Packaging data
    Package width
    • 100
    Package depth
    • 283
    Package height
    • 173
    Package weight
    • 1830
    Packaging content
    Quick installation guide
    • Yes
    Manual
    • Yes
    Logistics data
    Master (outer) case net weight
    • 6950
    Harmonized System (HS) code
    • 85176200
    Master (outer) case width
    • 292
    Master (outer) case length
    • 517
    Master (outer) case height
    • 194
    Master (outer) case gross weight
    • 9600
    Products per master (outer) case
    • 5
