Aten KVM 4-PC 1-Bruker HDMI CS1844

SKU: CS1844-AT-G
Brand: Aten
https://safeconsulting.no/web/image/product.template/14064/image_1920?unique=8504195

kr 8 269,09 8269.09 NOK kr 8 269,09 Ekskl. mva

kr 8 269,09 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

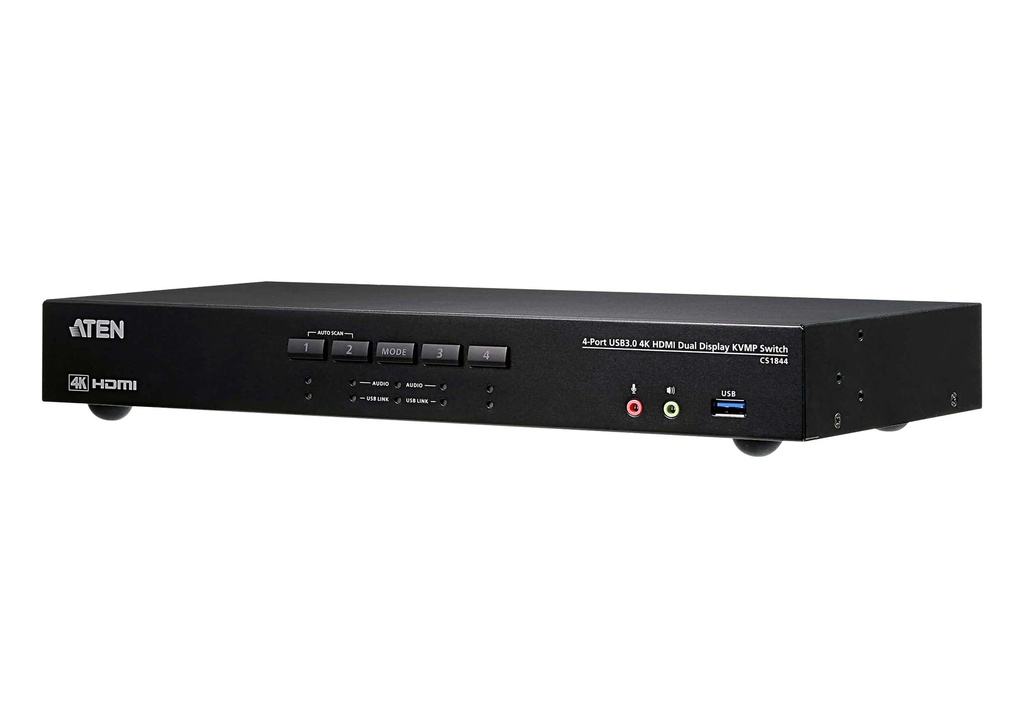

    ATEN 4-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 12 V, Power consumption (typical): 4.42 W. Width: 335 mm, Depth: 160.5 mm, Height: 44 mm

    Nøkkelfunksjoner

    • Black
    • Number of computers controlled: 4
    • Keyboard port type: USB Mouse port type: USB Video port type: HDMI
    • 4K Ultra HD 4096 x 2160 pixels
    • Housing material: Metal
    • Hot keys
    • DC 4.42 W

    Viktige bruksområder

    • Corporate AV Solutions
    • Control Room Environments
    • Broadcast Studios
    • Server Management
    • Multimedia Workstations
    • Conference Room Setups
    • IT Administration
    • Educational Institutions
    • Medical Imaging Systems
    • Network Operations Centers

    Beskrivelse


    1x CS1844 4-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch
    8x LIN6-19V1-V18G HDMI 2.0 Cables
    4x LIN6-11C1-E12G USB 3.0 Cables
    4x LIN5-0205-21CG Speaker Cables
    4x LIN5-0205-21DG Microphone Cables
    1x 0AD8-8012-33MG Power Adapter
    1x 2XRT-0016G Remote Port Selector
    1x User Instructions

    Produktspesifikasjoner

    Specification Details
    Ports & interfaces
    Number of computers controlled
    • 4
    Keyboard port type
    • USB
    Mouse port type
    • USB
    Video port type
    • HDMI
    HDMI ports quantity
    • 8
    USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
    • 4
    Console ports
    • 3.5mm headphone,HDMI,USB A
    Console USB ports quantity
    • 2
    USB hub
    • Yes
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
    • 2
    USB connector type
    • USB Type-A,USB Type-B
    Audio connections
    • Yes
    Headphone outputs
    • 6
    Number of microphone inputs
    • 6
    DC-in jack
    • Yes
    Performance
    HD type
    • 4K Ultra HD
    Maximum resolution
    • 4096 x 2160
    Video bandwidth
    • 60
    Scan interval
    • 1,5,99
    Design
    Product colour
    • Black
    Housing material
    • Metal
    LED indicators
    • Yes
    Push button
    • Yes
    Hot keys
    • Yes
    Display
    Built-in display
    • No
    Power
    Power source
    • DC
    Input voltage
    • 12
    Power consumption (typical)
    • 4.42
    Operational conditions
    Operating temperature (T-T)
    • 0 - 40
    Storage temperature (T-T)
    • -20 - 60
    Operating relative humidity (H-H)
    • 0 - 80
    Storage relative humidity (H-H)
    • 0 - 80
    Weight & dimensions
    Width
    • 335
    Depth
    • 160.5
    Height
    • 44
    Weight
    • 3380
    Packaging data
    Package width
    • 116
    Package depth
    • 540
    Package height
    • 233
    Package weight
    • 4350
    Packaging content
    Quick installation guide
    • Yes
    Manual
    • Yes
    Logistics data
    Master (outer) case net weight
    • 10140
    Harmonized System (HS) code
    • 85176200
    Master (outer) case width
    • 375
    Master (outer) case length
    • 565
    Master (outer) case height
    • 258
    Master (outer) case gross weight
    • 13842
    Products per master (outer) case
    • 3
