  2. 1U CSE-116BAC10-R860Wchassisw/860W(topload riser bracket)

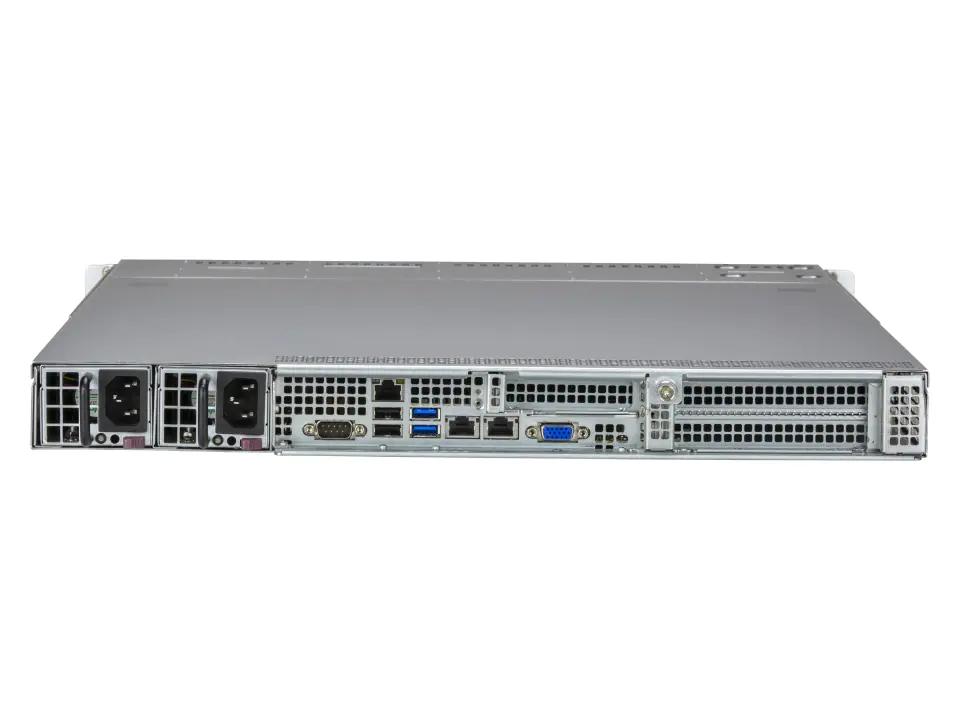

1U CSE-116BAC10-R860Wchassisw/860W(topload riser bracket)

CSE-116BAC10-R860W
https://safeconsulting.no/web/image/product.template/12674/image_1920?unique=a4c5cb8

kr 9 348,35 9348.35 NOK kr 9 348,35

kr 9 348,35

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The SuperMicro 1U CSE-116BAC10-R860W chassis is designed for X13 WIO series motherboards, featuring a hybrid backplane supporting various drive configurations, and a high-efficiency 860W redundant power supply.

    Key Features

    • Optimized for X13 WIO (W series) motherboards, support MB size up to 12.3" x 13.4"
    • 10 x 2.5" hot-swap SAS3/SATA drive bay
    • 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 10x 2.5-inch NVMe storage devices, 4 of them are SAS3/SATA3 drives compatible.
    • 1U Redundant 860W Single Output Power Supply Platinum level, 54.5mm width
    • 2 full height expansion slot(s) , 1 low-profile expansion slot(s)
    • 4 x 40x56mm counter-rotation PWM fan(s)

    Key Applications

    • Data Centers
    • Enterprise Servers
    • High-Performance Computing
    • Cloud Computing
    • Storage Solutions
    • Virtualization
    • Database Management

    Description

    The SuperMicro 1U CSE-116BAC10-R860W chassis is optimized for X13 WIO motherboards, supporting up to 12.3" x 13.4". It features 10 x 2.5" hot-swap SAS3/SATA drive bays, a 10-port 1U SAS3 12Gbps hybrid backplane, and support for up to 10x 2.5-inch NVMe storage devices. The chassis includes a 1U Redundant 860W single output power supply with platinum level efficiency and 4 x 40x56mm counter-rotation PWM fans for optimal cooling. Additionally, it offers 2 full height and 1 low-profile expansion slots.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 116BAC10-R860W
    Dimensions
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 23.5" (597 mm)
    Gross Weight
    • 33.5 lbs (15.2 kg)
    Net Weight
    • 21 lbs (9.53 kg)
    Packaging (W x H x L)
    • 23.5" (597 mm) x 7.75" (197 mm) x 31.5" (800 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • Unit Identification (UID) button
    LED
    • Power status LED
    • HDD activity LED
    • 2 Network Activity LEDs
    • Fan Fail/System Over Heat LED
    Systems Cooling
    Fans
    • 4x 40x56mm counter-rotation PWM fan(s)
    • Optional 2x 40x56mm fans for AOC cooling
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 800W/860W 1U redundant power supply
    Power Efficiency
    • 94+%
    Total Output Power and Input
    • 860W with Input 200 - 240Vac
    • 800W with Input 100 - 127Vac
    • 860W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 322 x 54.5 x 40.25 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 71.6A / Min: 0A (200Vac - 240Vac)
    • Max: 66.6A / Min: 0A (100Vac - 127Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT116-SL8824
    • O/P: 12V/80
    • +5V Max: 25A
    • +3.3V Max: 25A
    • -12V Max: 0.6A
    Certification
    • Platinum Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • UL/CB
    • UL/CUL

    Standard Part List

    Part Number Quantity Description
    Air Shroud
    MCP-310-11606-0B1Air block for 1U WIO SC116B with X13SEW
    Bracket
    MCP-240-00201-0N11U WIO top-load riser card bracket for SC815B, SC116B
    HD Backplane
    BPN-NVME5-LB16A-S1011U 10-port hybrid backplane for SAS3/SATA3/NVME5 storage
    Cable(s)
    CBL-0335L1FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
    CBL-PWCD-0160-IS2PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    Part(s)
    MCP-120-00115-0N1Blank LP L-bracket with 4x4 vent holes
    MCP-120-00116-0N2Blank FH L-bracket with 4x4 vent holes
    MCP-230-00038-0N1Top cover with 1 mylar for SC113, 116
    MCP-270-00023-0N11U SC116 chassis base(Redundant Power)
    MCP-290-00173-0N1SC119 Intrusion assembly upgraded version (with 3rd mounting screw hole) (cable length: 47mm)
    Fan(s)
    FAN-0163L4440x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
    Front Panel
    FPB-FP116-DU31Front control board with two USB 3.0 for SC116/SC119X
    Cooling Fan & Accessory
    MCP-320-00027-0B24Plastic pin for 40x28, 40x56 fan
    MCP-320-00028-0B1Fan holder for 6pcs 40x56 fan, assemble-able for SC819/SC119/SC818/SC116
    MCP-340-00035-0B2Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
    Drive Tray(s)
    MCP-220-00047-0B10Black gen 3rd hot-swap 2.5inch HDD tray
    Power Distributor
    PDB-PT116-SL88241Based on PDB-PT116-L8824 to optimize 24Pin etc cable lengths
    Power Supply & Accessory
    PWS-860P-1R221U 860W, Redundant power supply, 54.5mm width, Platinum with
    MCP-250-00009-0N1SC113 Redundant Power Distributor Cover
    Mounting Rail(s)
    MCP-290-00016-0N11U open rack bracket set for CSE-PT51L,MCP-290-00054-0N
    MCP-290-00063-0N1setRail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
    Rear Window
    MCP-240-00202-0N11U WIO rear window to support top-load riser bracket for SC815B,SC116B

    Optional Part List

    Part Number Quantity Description
    Air shroud
    MCP-310-81306-0B-Mylar air shroud for 1U X12SPW-TF
    MCP-310-81505-0N-SC815B/SC116B CPU Plastic Air Shroud for X13SEW
    Drive Trays
    MCP-220-00120-0B-Tool-less Black gen-3 2.5-inch NVMe drive tray (Orange tab. PUSH button with key lock)
    MCP-220-00167-0B-Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS
    Front bezel
    MCP-210-11601-0B-Black Front Bezel for SC113,SC113M,SC116,SC119,SC119U,SC514 (No LED indicator support)
    Rail
    MCP-290-00056-0N-Quick-release outer rail for square hole short-depth rack (19"~26.4")
