  2. Black 2U SC216B SAS3 LP CSE w/1 Expander Redundant 1200W

Black 2U SC216B SAS3 LP CSE w/1 Expander Redundant 1200W

CSE-216BE1C4-R1K23LPB
https://safeconsulting.no/web/image/product.template/12053/image_1920?unique=68add06

kr 17 409,44 17409.44 NOK kr 17 409,44

kr 17 409,44

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

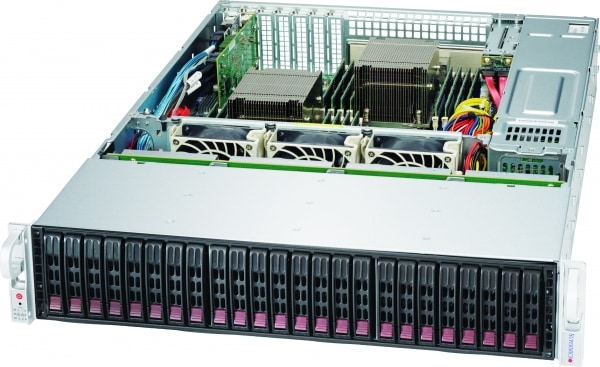

    The Supermicro CSE-216BE1C4-R1K23LPB is a high-performance 2U server chassis designed to support up to 24x 2.5" hot-swap SAS/SATA drive bays, dual Intel/AMD processors, and 7 low-profile expansion slots. It features a 1U 1200W/1000W Titanium Power Supply for efficient power delivery.

    Key Features

    • 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
    • 24 x 2.5" hot-swap SAS/SATA drive bay, optional 2 x 2.5" hot-swap drive bay
    • 24-port 2U SAS3 12Gbps single-expander backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices
    • 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
    • 7 low-profile expansion slot(s)
    • 3 x 8cm high-performance PWM fan(s)Optional 5 x 6cm 4pin high performance fan(s)

    Key Applications

    • High-density server applications
    • Data-intensive tasks
    • Virtualization environments
    • Enterprise storage solutions

    Description

    The Supermicro CSE-216BE1C4-R1K23LPB server chassis offers exceptional flexibility and performance in a 2U form factor. It supports a maximum motherboard size of ATX 12" x 13" and includes 24x 2.5" hot-swap SAS/SATA drive bays, with an optional 2x 2.5" hot-swap drive bay available. The backplane is a 24-port 2U SAS3 12Gbps single-expander, capable of handling a mix of 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices. Power is supplied by a 1U 1200W/1000W Titanium Power Supply with PMbus, ensuring efficient and reliable operation. The chassis also provides 7 low-profile expansion slots and features 3x 8cm high-performance PWM fans, with an optional upgrade to 5x 6cm 4-pin high-performance fans.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 216BE1C4-R1K23LPB
    Dimensions
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 24.8" (630 mm)
    Gross Weight
    • 53 lbs (24.04 kg)
    Packaging (W x H x L)
    • 25.8" (655 mm) x 10.1" (257 mm) x 37.8" (960 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • System Reset button
    LED
    • Power status LED
    • HDD activity LED
    • 2 Network Activity LEDs
    • Unit Identification (UID) LED
    • Fan Fail/System Over Heat LED
    Systems Cooling
    Fans
    • 3x 8cm high-performance PWM fan(s)
    • Optional 5x 6cm 4pin high performance fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U 1200W/1000W Titanium Power Supply W/PM Bus W76xL336xH40mm
    Power Efficiency
    • 96%
    Total Output Power and Input
    • 1200W with Input 200 - 240Vac
    • 1000W with Input 100 - 127Vac
    • 1200W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 100A / Min: 0A (200Vdc - 240Vdc)
    • Max: 100A / Min: 0A (200Vac - 240Vac)
    • Max: 83A / Min: 0A (100Vac - 127Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT216-2824
    • O/P: 12V/100
    • +5V Max: 30A
    • +3.3V Max: 24A
    • -12V Max: 0.6A
    Certification
    • Titanium Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • UL/CB
    • UL/CUL

    Standard Part List

    Part Number Quantity Description
    Air Shroud
    MCP-310-29001-0N1SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
    Bracket
    MCP-320-82601-0N1Middle fan bracket for 826B/216B with 3 X 8cm fan
    HD Backplane
    BPN-SAS3-216EL1-N4124-port 2U SAS3 12Gbps single-expander backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices
    Cable(s)
    CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    CBL-0088310.5", 4 PIN MIDDLE FAN POWER EXTENSION (PWM)
    CBL-0160L2US POWER CORD 16AWG, PB FREE
    CBL-0182L1PWR EXTENSION.HDD TO RIGHT ANGLE HDD,PBF
    Part(s)
    MCP-290-00088-0N1SC119 Intrusion assembly
    MCP-290-21604-0V1Silver chassis handle set for SC216 / 216B,RoHS
    MCP-230-82602-0N1Top cover for SC826B/216B/825B
    Fan(s)
    FAN-0203L4380x80x38 mm, 10.5K RPM, Middle Cooling Fan w/ New Plastic Ma
    Front Panel
    FPB-FP826-D1Front control board Dual color LED(FP826-D)forSC826,213,216,
    FPB-TB826116 pin Cable Adaptor Board for SC826
    Drive Tray(s)
    MCP-220-00047-0B24Black gen 3rd hot-swap 2.5inch HDD tray
    MCP-290-82607-0N1826B/216B rear dummy cover for 2 X 2.5" HDD cage,RoHS
    Power Distributor
    PDB-PT216-28241PDB with 23pairs input connectors for SC216B
    Power Supply & Accessory
    PWS-1K23A-1R2AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
    Mounting Rail(s)
    MCP-410-00007-0N1Rail screw bag
    MCP-290-00053-0N1Rail set, quick/quick, default for 2,3U 17.2"W
    MCP-290-00060-0N1Threaded rail adapter default for round hole rack
    Rear Window
    MCP-240-82608-0N1216B/826B LP rear window,RoHS/REACH,PBF

    Optional Part List

    Part Number Quantity Description
    Fan Kit
    MCP-320-82603-0N-6cm fan cooling module for 826B/216B (5X6cm fan)
    Front Bezel
    MCP-210-82601-0B-Black Front Bezel for 826 chassis
    HDD Kit
    MCP-220-82609-0N-Rear 2.5 x 2 Hot swap HDD kit for 216B/826B/417B/846X/847B
    MCP-220-82616-0N-12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B
    Short Rail
    MCP-290-00058-0N-Short rail set, quick release, 19.6"~26.9" Extendable Length
