Summary Description

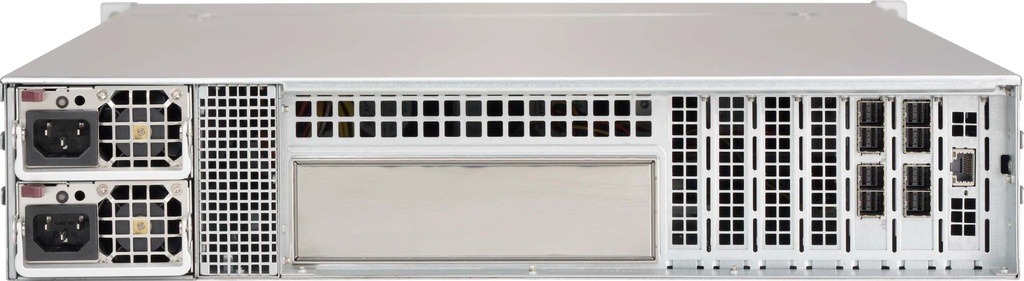

This 2U SC216B chassis is ideal for high-density archive storage applications, featuring 24 hot-swappable 2.5" drive bays, dual expander backplanes, and 600W redundant power supplies.
Key Features
- Cloud Backup, Data Replication, or High Density Archive Storage Applications2U Storage JBOD Chassis with capacity 24 x 2.5" hot-swappable HDDs bays
- Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 600W (1+1) 94% efficient Platinum level power supplies
- 3 x 80mm high efficient hot-swappable fans for best system cooling
- Ideal for Cloud backup, data Replication or High density Archive Storage Applications
- Qualified SAS HBA / controller:AOC-SAS3-9500-8E- 12Gb/s 2-external ports SAS3 HBAAOC-SAS3-9500-16E- 12Gb/s 4-external ports SAS3 HBAAOC-SAS3-9580-8I8E- 12Gb/s 2-external ports SAS3 RAID Controller
Key Applications
- Cloud Backup
- Data Replication
- High-Density Archive Storage
- External Storage Expansion
- Data Center Applications
- Enterprise Storage
- Virtualization
- High-Performance Computing
- Disaster Recovery
- Data Warehousing
Description
The 2U SC216B 24 Drive JBOD chassis with dual expander backplanes supports up to 24 hot-swappable 2.5" drives. It is designed for cloud backup, data replication, and high-density archive storage applications. The chassis includes 600W (1+1) redundant platinum-level power supplies, ensuring high efficiency and reliability. System cooling is managed by 3 hot-swappable 80mm fans.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SKUs |
|
| Dimensions | |
| Height |
|
| Width |
|
| Depth |
|
| Gross Weight |
|
| Net Weight |
|
| Packaging (W x H x L) |
|
| Available Color |
|
| Front Panel | |
| Button |
|
| LED |
|
| Systems Cooling | |
| Fans |
|
| Operating Environment (System) | |
| Operating Temperature Range |
|
| Non-Operating Temperature Range |
|
| Operating Relative Humidity Range |
|
| Non Operating Relative Humidity Range |
|
| Power Supply | |
| |
| Power Efficiency |
|
| Total Output Power and Input |
|
| AC Input Frequency |
|
| Dimensions (L x W x H) |
|
| Output Type |
|
| +12V |
|
| +5Vsb |
|
| Power Distributor |
|
| Certification |
|
| Regulatory (Power Supply) | |
| Power Supply Safety / EMC |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Air Shroud | ||
| MCP-310-29001-0N | 1 | SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13 |
| Bracket | ||
| MCP-320-82601-0N | 1 | Middle fan bracket for 826B/216B with 3 X 8cm fan |
| MCP-120-84702-0N | 1 | CB3 mounting bracket for use on chassis with CB2 holes. Bracket to mount CB3 card on existing CB2 standoff on SC847/SC417/SC837/SC826/SC836/SC846 in JBOD configuration.,HF,RoHS/REACH,PBF |
| MCP-120-84705-0N | 1 | LP PCI bracket for CBL-NTWK-0587 LAN extension cable,HF,RoHS/REACH,PBF |
| HD Backplane | ||
| BPN-SAS3-216EL2 | 1 | SAS3 12Gb/s dual expander backplane, with 24x SAS3 2.5" HHD |
| Control Board | ||
| CSE-PTJBOD-CB3 | 1 | JBOD chassis power control board with IPMI remote on/off feature |
| Cable(s) | ||
| CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF |
| CBL-0088 | 3 | 10.5", 4 PIN MIDDLE FAN POWER EXTENSION (PWM) |
| CBL-0160L | 2 | US POWER CORD 16AWG, PB FREE |
| CBL-0182L | 1 | PWR EXTENSION.HDD TO RIGHT ANGLE HDD,PBF |
| CBL-CDAT-0601 | 1 | 4 Pin to 4 Pin I2C cable, 50cm, 26AWG,RoHS |
| CBL-NTWK-0587 | 1 | INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD |
| CBL-SAST-0531 | 4 | Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s |
| CBL-SAST-0532 | 4 | Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s |
| Part(s) | ||
| MCP-230-82602-0N | 1 | Top cover for SC826B/216B/825B |
| MCP-290-00088-0N | 1 | SC119 Intrusion assembly |
| MCP-290-21604-0V | 1 | Silver chassis handle set for SC216 / 216B,RoHS |
| MCP-260-00011-0N | 1 | I/O shield without any opening |
| Fan(s) | ||
| FAN-0204L4 | 3 | 80x80x38 mm, 7K RPM, Middle Cooling Fan w/ New Plastic Mater |
| Front Panel | ||
| FPB-FP826-D | 1 | Front control board Dual color LED(FP826-D)forSC826,213,216, |
| FPB-TB826 | 1 | 16 pin Cable Adaptor Board for SC826 |
| Drive Tray(s) | ||
| MCP-220-00047-0B | 24 | Black gen 3rd hot-swap 2.5inch HDD tray |
| MCP-290-82607-0N | 1 | 826B/216B rear dummy cover for 2 X 2.5" HDD cage,RoHS |
| Power Distributor | ||
| PDB-PT216-2824 | 1 | PDB with 23pairs input connectors for SC216B |
| Power Supply & Accessory | ||
| PWS-609P-1R2 | 2 | 1U, platinum efficiency, 600W/650W, AC input: 100-127/200-240Vac. |
| Mounting Rail(s) | ||
| MCP-410-00007-0N | 1 | Rail screw bag |
| MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2"W |
| MCP-290-00060-0N | 1 | Threaded rail adapter default for round hole rack |
| Rear Window | ||
| MCP-240-82608-0N | 1 | 216B/826B LP rear window,RoHS/REACH,PBF |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| Cable | ||
| CBL-SAST-0677 | - | 3m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH |
| CBL-SAST-0573 | - | External mini SAS HD to external mini SAS HD cable 28AWG (1M) |
| CBL-SAST-0690-1 | - | MINI SAS HD,12G,EXT,2M,30AWG,RoHS |
