  2. 4U SC417B 72 HDD JBOD w/ Singl Expander, Redundant 1200W

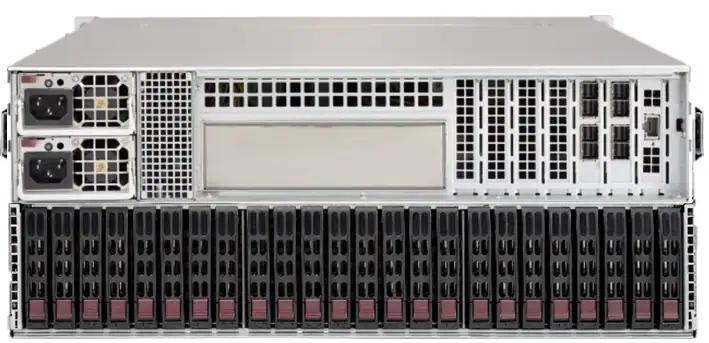

4U SC417B 72 HDD JBOD w/ Singl Expander, Redundant 1200W

CSE-417BE1C-R1K23JBOD
https://safeconsulting.no/web/image/product.template/12684/image_1920?unique=b20187c

kr 39 318,08 39318.08 NOK kr 39 318,08

kr 39 318,08

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro 4U SC417B storage chassis provides up to 72 hot-swap 2.5" HDD bays. Features a single expander backplane, redundant 1200W power supplies, and advanced thermal solutions, making it ideal for high-density storage needs.

    Key Features

    • Extremely high-density 4U storage server chassis (saves 2U space)
    • Maximum drives per enclosure: 72x (48 front + 24 rear) 2.5" hot-swap HDD bays for server chassis
    • SAS3 (12Gbps) single expander backplane
    • 1200WTitanium Level(1+1) redundant power supplies with PMBus
    • Optimized thermal solution with 100% redundant cooling design
    • Qualified SAS HBA / controller:AOC-SAS3-9300-8E- 12Gb/s 2-external ports SAS3 HBAAOC-SAS3-9380-8E- 12Gb/s 2-external ports SAS3 RAID Controller

    Key Applications

    • Enterprise Storage Solutions
    • Data Centers
    • Cloud Computing
    • High-Density Storage
    • Backup Solutions
    • Big Data Applications
    • Virtualization
    • Database Servers
    • Security and Surveillance Storage
    • Media and Entertainment Workflows

    Description

    The Supermicro 4U SC417B Storage Chassis supports up to 72 hot-swap 2.5" HDDs (48 front and 24 rear), offering high-density storage in a compact form factor. It features a single expander backplane with SAS3 (12Gbps) support, optimizing data transfer speeds. The chassis also includes redundant 1200W Titanium Level power supplies with PMBus and an advanced thermal solution for reliable performance. Ideal for enterprise-level storage applications.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 417BE1C-R1K23JBOD
    Dimensions
    Height
    • 7" (178 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 27.5" (699 mm)
    Gross Weight
    • 80 lbs (36.29 kg)
    Packaging (W x H x L)
    • 27.2" (691 mm) x 21" (533 mm) x 39.6" (1006 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • System Reset button
    • Unit Identification (UID) button
    LED
    • Power status LED
    • HDD activity LED
    • 2 Network Activity LEDs
    • Fan Fail/System Over Heat LED
    Systems Cooling
    Fans
    • 7x 8cm hot-swap redundant PWM cooling fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U 1200W/1000W Titanium Power Supply W/PM Bus W76xL336xH40mm
    Power Efficiency
    • 96%
    Total Output Power and Input
    • 1200W with Input 200 - 240Vac
    • 1000W with Input 100 - 127Vac
    • 1200W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 100A / Min: 0A (200Vdc - 240Vdc)
    • Max: 100A / Min: 0A (200Vac - 240Vac)
    • Max: 83A / Min: 0A (100Vac - 127Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT416-8824
    • O/P: 12V/135
    • +5V Max: 100A
    • +3.3V Max: 30A
    • -12V Max: 0.6A
    Certification
    • Titanium Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • UL/CB
    • UL/CUL

    Standard Part List

    Part Number Quantity Description
    Bracket
    MCP-120-84702-0N1CB3 mounting bracket for use on chassis with CB2 holes. Bracket to mount CB3 card on existing CB2 standoff on SC847/SC417/SC837/SC826/SC836/SC846 in JBOD configuration.,HF,RoHS/REACH,PBF
    MCP-120-84705-0N1LP PCI bracket for CBL-NTWK-0587 LAN extension cable,HF,RoHS/REACH,PBF
    HD Backplane
    BPN-SAS3-216EL13SAS3 12Gb/s Single Expander Backplane,with 24x SAS3 2.5"
    Control Board
    CSE-PTJBOD-CB31JBOD chassis power control board with IPMI remote on/off feature
    Cable(s)
    CBL-CDAT-060134 Pin to 4 Pin I2C cable, 50cm, 26AWG,RoHS
    CBL-NTWK-05871INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD
    CBL-SAST-05316Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s
    CBL-SAST-05682Internal Mini-SAS HD to Mini-SAS HD 35cm,30AWG,12Gb/s
    Part(s)
    MCP-260-00011-0N1I/O shield without any opening

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-SAST-0677-3m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH
    CBL-SAST-0573-External mini SAS HD to external mini SAS HD cable 28AWG (1M)
    CBL-SAST-0690-1-MINI SAS HD,12G,EXT,2M,30AWG,RoHS
