Summary Description

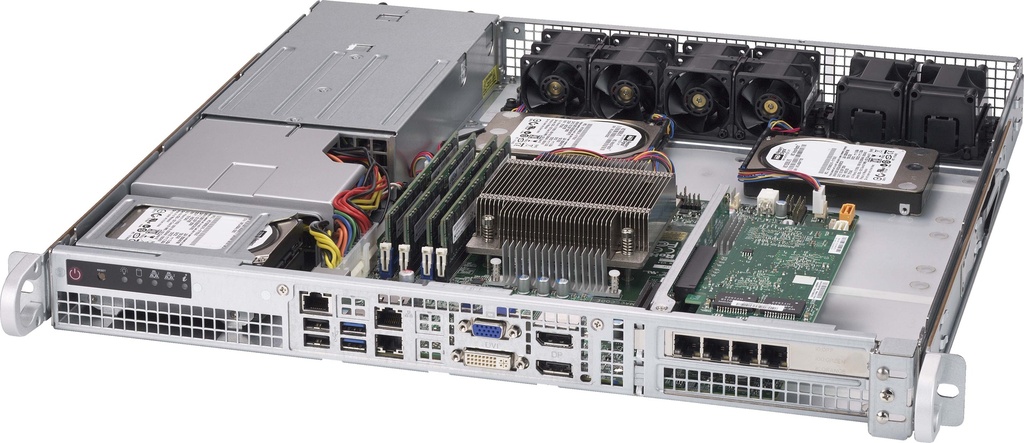

The Supermicro CSE-515-R407 is a versatile 1U rackmount chassis designed for optimal performance and flexibility. It supports both standard (STD) and WIO motherboard sizes up to 12"x13" and comes equipped with a 400W redundant platinum PSU, making it ideal for various enterprise applications.
Key Features
- Support STD and WIO MB size up to 12”x13”
- Up to 2 x 2.5" fixed with bracket
- 1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm
- Up to , 2 full height expansion slot(s)
- 4 x 40x56mm PWM fan(s)Optional 2 x fans for AOC cooling
Key Applications
- Data centers
- Enterprise environments
- Server applications
- High-performance computing
Description
The Supermicro CSE-515-R407 is engineered to cater to the demanding needs of data centers and enterprise environments. This 1U chassis is compatible with standard and WIO motherboard sizes up to 12"x13". It includes a highly efficient 400W redundant platinum power supply with PMBUS for reliable power management. Additionally, the chassis features robust cooling with four 40x56mm PWM fans and optional AOC cooling fans, ensuring efficient thermal management. Expansion is made easy with up to 2 full-height expansion slots, and the chassis accommodates up to 2x 2.5" fixed drive bays with a bracket. The front panel is equipped with essential buttons and LEDs for operational status. Designed for durability, it meets stringent industry standards and certifications.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SKUs |
|
| Dimensions | |
| Height |
|
| Width |
|
| Depth |
|
| Gross Weight |
|
| Packaging (W x H x L) |
|
| Available Color |
|
| Front Panel | |
| Button |
|
| LED |
|
| Systems Cooling | |
| Fans |
|
| Operating Environment (System) | |
| Operating Temperature Range |
|
| Non-Operating Temperature Range |
|
| Operating Relative Humidity Range |
|
| Non Operating Relative Humidity Range |
|
| Power Supply | |
| |
| Power Efficiency |
|
| Total Output Power and Input |
|
| AC Input Frequency |
|
| Dimensions (L x W x H) |
|
| Output Type |
|
| +12V |
|
| +5Vsb |
|
| Power Distributor |
|
| Certification |
|
| Regulatory (Power Supply) | |
| Power Supply Safety / EMC |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Bracket | ||
| MCP-240-51504-0N | 1 | Riser card bracket for STD riser card + STD MB in SC515 |
| Cable(s) | ||
| CBL-0306L | 1 | FRONT CTRL CABLE ROUND 16 TO 16 PIN RIBBON, 65CM |
| CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH |
| Part(s) | ||
| MCP-230-51501-0N | 1 | Top cover for SC515, with 1x #6-32 thumb screw |
| MCP-270-51502-0N | 1 | 1U SC515 redundant PWS chassis base |
| MCP-260-00078-0N | 1 | 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF |
| Fan(s) | ||
| FAN-0157L4 | 4 | 40x40x56 mm 13K-11K RPM Counter-rotating Fan w/ a 160-mm Wire Coming out from the Fan Inlet Side,RoHS/REACH |
| Front Panel | ||
| MCP-280-51201-0N | 1 | Front control board (FP512) for SC512 (surface-mounted LED) |
| Cooling Fan & Accessory | ||
| MCP-320-00027-0B | 24 | Plastic pin for 40x28, 40x56 fan |
| MCP-320-81801-0B | 3 | SC818G 2x 4056 fan tray,HF,RoHS,PBF |
| MCP-340-00035-0B | 2 | Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective) |
| Drive Tray(s) | ||
| MCP-220-51401-0N | 1 | Dual 2.5 HDD bracket (bracket base not follow std 2.5 |
| Power Distributor | ||
| PDB-PT514-2824 | 1 | 1U redundant power distributor board for SC514, SC113 etc., (rename from PDB-PT514-1824),RoHS/REACH |
| Power Supply & Accessory | ||
| PWS-407P-1R | 2 | AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH |
| Mounting Rail(s) | ||
| MCP-290-00102-0N | 1set | Outer rail, quick-release type, 25.6 |
| MCP-290-00108-0N | 1set | Inner rail, front, short, quick-release type |
| Rear Window | ||
| MCP-240-51503-0N | 1 | rear window for SC515 redundant PWS chassis |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| Cable | ||
| CBL-0082L | - | Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG |
| CBL-0260L | - | US power cord 18AWG 6ft, PBF (default for low watt) |
| CBL-0156L | - | Front ctrl cable Round 16 pin to 16 pin, 40cm, 28AWG |
| CBL-0296L | - | 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG |
| Chassis parts | ||
| MCP-240-51502-0N | - | Riser card bracket for WIO MB in SC515 |
| Rail | ||
| MCP-290-00056-0N | - | Quick-release outer rail for square hole short-depth rack (19"~26.4") |
| MCP-290-00064-0N | - | Thumb screw adapter of inner rail for 1U 17.2 |
