  2. SC813MF2TQ_RCB Chassis w/ 350W, (butterfly riser),RoHS

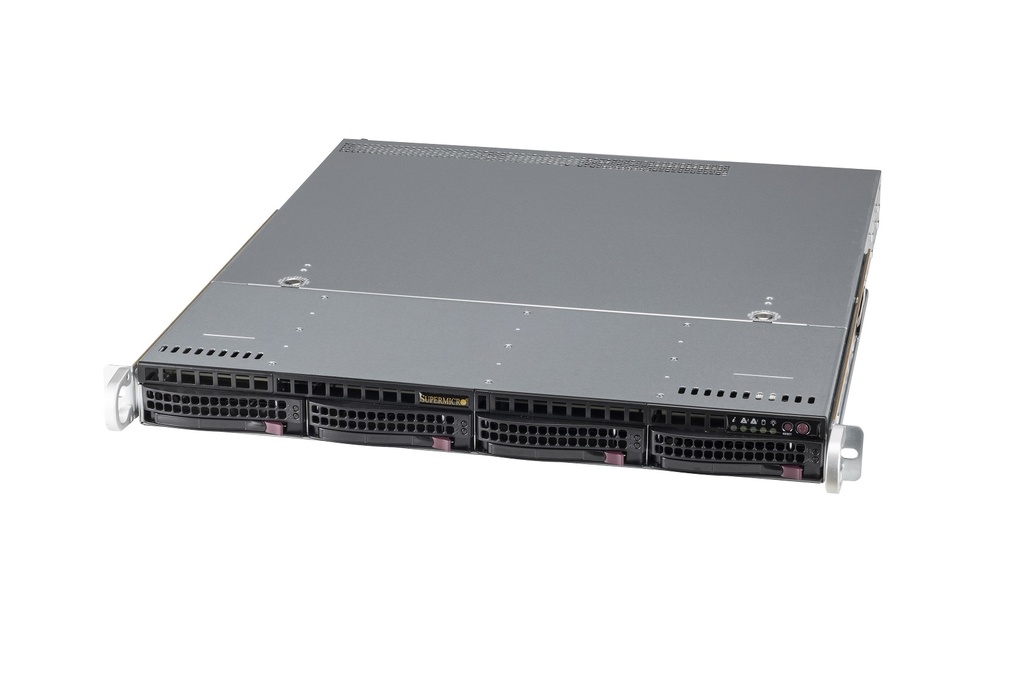

SC813MF2TQ_RCB Chassis w/ 350W, (butterfly riser),RoHS

CSE-813MF2TQC-350RCB
https://safeconsulting.no/web/image/product.template/12073/image_1920?unique=68add06

kr 4 074,28 4074.28 NOK kr 4 074,28

kr 4 074,28

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro CSE-813MF2TQC-350RCB is a highly efficient 1U chassis designed to support proprietary Micro ATX motherboards, featuring a 350W platinum-level power supply and hot-swap drive bays.

    Key Features

    • 1U chassis, support motherboard sizes: Proprietary Micro ATX 9.6" x 9.6"
    • 4 x 3.5" hot-swap SAS3/SATA drive baySAS or enterprise SATA HDD only recommended
    • Support up to 4x3.5"SAS3/SATA Storage Devices
    • 1U 350W Multi-output power supply Platinum level
    • 1 full height expansion slot(s) , 1 low-profile expansion slot(s)
    • 4 x 40x28mm PWM fan(s)Optional 2 x fans for AOC cooling

    Key Applications

    • Data centers
    • Enterprise environments
    • Server applications
    • High storage requirements
    • Efficient power supply

    Description

    Supermicro CSE-813MF2TQC-350RCB offers a robust solution for data centers and enterprise environments. The chassis supports dual and single Intel® and AMD processors, has 1U height, and offers expansion capabilities with full-height and low-profile slots. It features four 3.5" SAS3/SATA hot-swap drive bays, ensuring high storage performance and reliability. The power supply is 350W with 93% efficiency, ensuring low operational costs and high environmental standards.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 813MF2TQC-350RCB
    Dimensions
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 19.98" (507 mm)
    Gross Weight
    • 28 lbs (12.65 kg)
    Net Weight
    • 24.35 lbs (10.5 kg)
    Packaging (W x H x L)
    • 23.1" (587 mm) x 7.5" (186 mm) x 29.5" (748 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • System Reset button
    LED
    • Power status LED
    • HDD activity LED
    • System Information LED
    • 2 Network Activity LEDs
    Systems Cooling
    Fans
    • Optional 2x fans for AOC cooling
    • 4x 40x28mm PWM fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U 350W Multi-output power supply Platinum level
    Power Efficiency
    • 93%
    Total Output Power and Input
    • 350W with Input 100 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 180 x 100 x 40 mm
    Output Type
    • 24pin ATX
    -12V
    • Max: 0.2A / Min: 0A
    +12V
    • Max: 29A / Min: 0.5A (100Vac - 240Vac)
    +5V
    • Max: 15A / Min: 0.2A
    +3.3V
    • Max: 12A / Min: 0.2A
    +5Vsb
    • Max: 3A / Min: 0A
    Certification
    • Platinum Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class B
    • TUV/CB

    Standard Part List

    Part Number Quantity Description
    Bracket
    MCP-240-00197-0N1Non-C Riser Card Bracket (butterfly) for SC813MF2/SC113MF_RCB
    HD Backplane
    BPN-SAS3-815TQ11U 4-Port 12Gbps Backplane Support 4x3.5
    Cable(s)
    CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    CBL-PWCD-0160-IS1PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    Part(s)
    MCP-120-00115-0N1Blank LP L-bracket with 4x4 vent holes
    MCP-120-00116-0N1Blank FH L-bracket with 4x4 vent holes
    MCP-230-81305-0N1Top cover for SC813M, extend (19.98";), Single PWS
    MCP-270-81308-0N1Chassis base for SC813M, extend (19.98"), Single PWS
    MCP-290-00088-0N1SC119 Intrusion assembly
    MCP-340-00001-012Dummy fan 40x28mm
    CD-ROM & Accessory
    CSE-PT93L-B1Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
    Fan(s)
    FAN-0154L4440x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
    Front Panel
    FPB-FP813-D1Front control board dual color for SC815,SC813M (C)
    Cooling Fan & Accessory
    MCP-320-00060-0N1Slim Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12"x10.15")
    Drive Tray(s)
    MCP-220-00075-0B4Black gen 5.5 hot-swap 3.5" HDD tray
    Power Supply & Accessory
    PWS-350-1H11U Single AC-DC 350W Platinum Level, multiple output power supply (180mm)
    Mounting Rail(s)
    MCP-290-00102-0N1setOuter rail, quick-release type, 25.6
    MCP-290-00108-0N1setInner rail, front, short, quick-release type
    MCP-290-00110-0N1setInner rail, extension (quick) for 1U 17.2
    Rear Window
    MCP-240-00196-0N1Non-C Rear window Assy for SC813MF2_RCB Single PWS

    Optional Part List

    Part Number Quantity Description
    Adaptor HDD carrier
    MCP-220-00043-0N-Black hotswap gen 4 3.5 to 2.5 HDD tray
    Air Shroud
    MCP-310-81307-0B-Mylar Air Shroud for SC813MF2/SC113MF_RCB with X12STH
    Drive Trays
    MCP-220-00138-0B-Black gen-5.5 tool-less NVMe 3.5-to-2.5 drive tray, Orange tab
    MCP-220-00116-0B-Black gen-5 3.5-to-2.5 NVMe drive tray, Orange tab (for hotswap NVMe drive),RoHS/REACH
    Front Bezel
    CSE-PTFB-813LB-BLACK SC813 FRONT BEZEL, PB FREE
    Mounting Rail
    MCP-290-00056-0N-Short outer rail, /quick, optional for 1U 17.2
    MCP-290-00052-0N-BULK-Outer rail, /quick, optional for 1U 17.2
    Peripheral Drive(s)
    MCP-220-00110-0B-Black USB/COM port tray in slim DVD bay,RoHS/REACH,PBF
