Summary Description

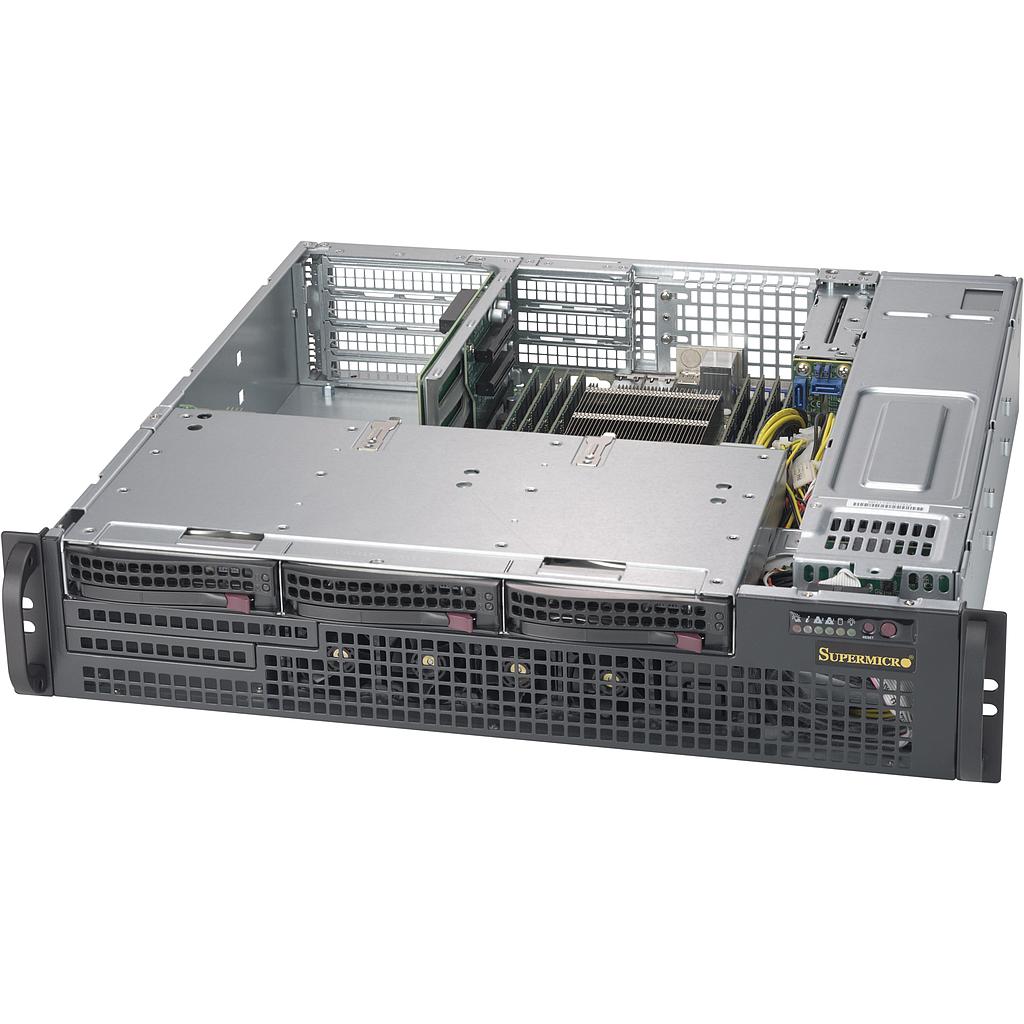

The Supermicro CSE-825MBTQC-R802WB 2U chassis offers extensive hardware support for both Intel and AMD processors, ensuring high performance and reliability for various computing needs. It features multiple expansion slots and storage bays, making it a versatile choice.
Key Features
- 2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO, 12.8" x 13.4" motherboards
- 3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO, optional 2 x 2.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards
- 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
- 1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
- 4 full height expansion slot(s) (Riser Card Required), 3 low-profile expansion slot(s) (Riser Card Required)
- 4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed controlOptional 1 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
Key Applications
- Enterprise computing
- Data centers
- High-performance computing
- Storage solutions
- Network infrastructure
Description
The Supermicro CSE-825MBTQC-R802WB 2U chassis is designed for high-performance computing with support for dual and single Intel and AMD processors. It accommodates up to 3x 3.5-inch hot-swap SAS/SATA drives with SGPIO and an optional 2x 2.5-inch hot-swap SAS/SATA drive bay. The chassis includes a 3-port SC825M SAS3 12Gbps TQ backplane, a 1U 800W redundant power supply with PMbus and Titanium certification, and provides excellent cooling with high-performance counter-rotating PWM fans. The sturdy design also includes multiple expansion slots, making it ideal for various server applications.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SKUs |
|
| Dimensions | |
| Height |
|
| Width |
|
| Depth |
|
| Gross Weight |
|
| Net Weight |
|
| Packaging (W x H x L) |
|
| Available Color |
|
| Front Panel | |
| Button |
|
| LED |
|
| Systems Cooling | |
| Fans |
|
| Operating Environment (System) | |
| Operating Temperature Range |
|
| Non-Operating Temperature Range |
|
| Operating Relative Humidity Range |
|
| Non Operating Relative Humidity Range |
|
| Power Supply | |
| |
| Power Efficiency |
|
| Total Output Power and Input |
|
| AC Input Frequency |
|
| Dimensions (L x W x H) |
|
| Output Type |
|
| +12V |
|
| +5Vsb |
|
| Power Distributor |
|
| Certification |
|
| Regulatory (Power Supply) | |
| Power Supply Safety / EMC |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Air Shroud | ||
| MCP-310-29019-0N | 1 | SC823M Intel DP X10 Universal Mylar Air Shroud, 12x13MB |
| HD Backplane | ||
| BPN-SAS3-825MTQ-P | 1 | 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD |
| Cable(s) | ||
| CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF |
| CBL-0160L | 2 | US POWER CORD 16AWG, PB FREE |
| Part(s) | ||
| MCP-120-00061-0N | 4 | Blank FH L-bracket (5x5 square hole) |
| MCP-120-00062-0N | 3 | Blank LP L-bracket (5x5 square hole) |
| MCP-230-00011-00 | 1 | Top cover for SC825M |
| MCP-240-00146-0N | 1 | 2U WIO Half Length riser card bkt for SC825, 826, 213, 216,RoHS/REACH |
| MCP-240-00153-0N | 1 | Optional supporting 823M/825M riser bracket for X10SRW |
| MCP-240-82513-0B | 1 | SC825M front window |
| MCP-290-82516-0N | 1 | DVD and USB holder for SC825M |
| CD-ROM & Accessory | ||
| MCP-290-00041-0B | 1 | Black DVD dummy cover for SC825M |
| Fan(s) | ||
| FAN-0156L4 | 4 | 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH |
| Front Panel | ||
| FPB-FP836-D | 1 | Front control board Dual color LED(FP836-D)forSC823M,825,825 |
| Cooling Fan & Accessory | ||
| MCP-320-82502-0B | 1 | Fan Tray for Five 4056 Fans, for 825M |
| MCP-340-00035-0B | 1 | Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective) |
| Drive Tray(s) | ||
| MCP-220-00075-0B | 3 | Black gen 5.5 hot-swap 3.5" HDD tray |
| MCP-220-82501-0N | 1 | HDD cage housing 3 trays for SC825M |
| Power Distributor | ||
| PDB-PT825-S8824 | 1 | SC825 24PIN REDUNDANT PWR DISTRIBUTOR W/ SHORT CBL |
| Power Supply & Accessory | ||
| PWS-802A-1R | 2 | 1U 800W 100-240Vac/47-63Hz, and DC240 input |
| Mounting Rail(s) | ||
| MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2"W |
| MCP-290-00060-0N | 1 | Threaded rail adapter default for round hole rack |
| Rear Window | ||
| MCP-240-82609-0N | 1 | SC826B, 216B WIO rear window |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| Cable | ||
| CBL-0044L | - | SATA CABLE 57.5CM FLAT S-S PBF. 26AWG flat |
| CBL-0157L | - | 8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF |
| CBL-SAST-0948 | - | MINI SAS HD-4 SATA,12G,INT,60CM,60CM SB,30AWG |
| Front USB | ||
| MCP-290-82502-0B | - | USB Tray For 825M |
| HDD Kit | ||
| MCP-220-81506-0N | - | 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED |
| MCP-220-82616-0N | - | 12G 2.5x2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B) |
| MCP-220-81504-0N | - | 12G 2.5-in Hot-swap Slim Floppy Size Drive Kit w/Status LED |
| Rail | ||
| MCP-290-00058-0N | - | Short rail set, quick release, 19.6"~26.9" Extendable Length |
| SATA DVD Kit | ||
| DVM-PNSC-DVD-SBT3 | - | BLACK PANASONIC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH |
