SC826B WIO w/ Direct Attached SAS3 4NVMe,Titanium 12

SKU: CSE-826BAC4-R1K23WB
Brand: Supermicro
https://safeconsulting.no/web/image/product.template/12727/image_1920?unique=7b4a84b

kr 11 640,99 11640.99 NOK kr 11 640,99 Ekskl. mva

kr 11 640,99 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

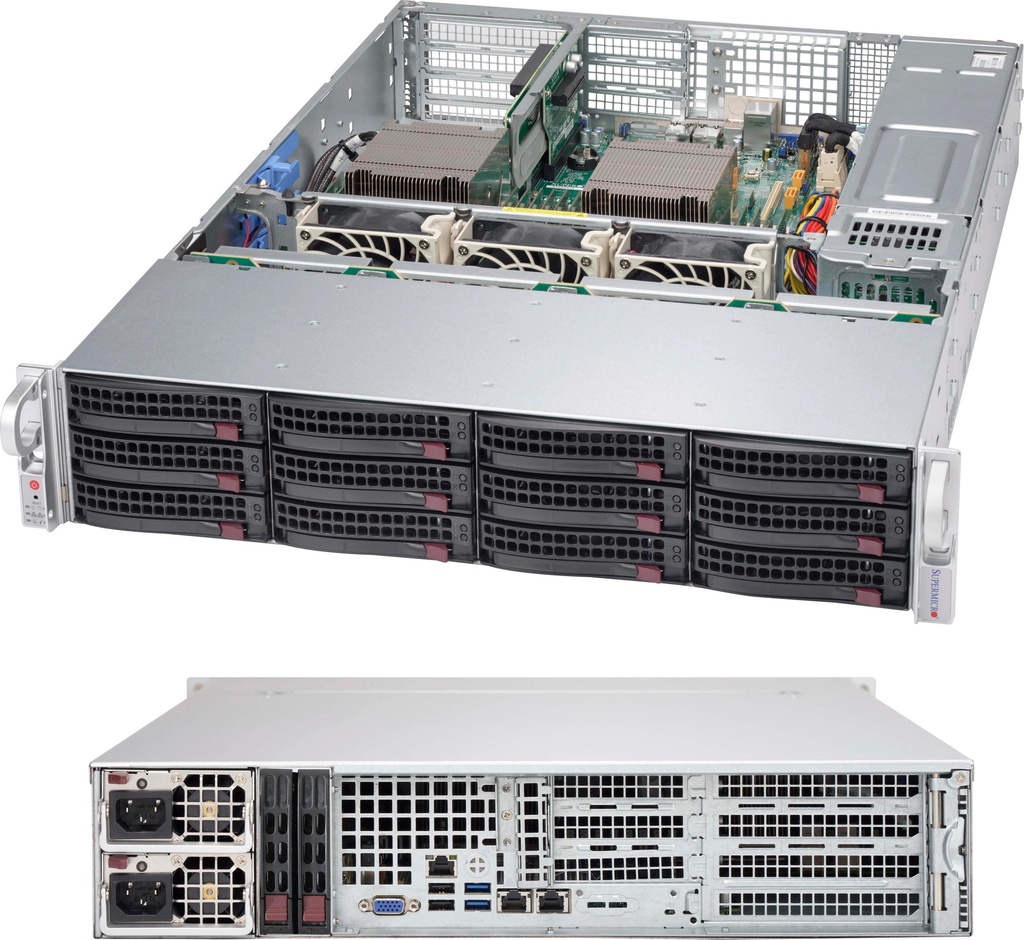

    The Supermicro SC826B WIO Chassis offers support for high-performance motherboards, 12x 3.5" hot-swap drive bays with optional NVMe support, and a powerful 1200W/1000W Titanium power supply. Ideal for data centers and enterprise storage solutions.

    Nøkkelfunksjoner

    • 2U chassis support for SMC Proprietary WIO motherboards max. motherboard size - 12" x 13", 13" x 13.68".Support up to 12"x13" MB with rear 2.5" HDD option installed
    • 12 x 3.5" hot-swap drive bay, optional 2 x 2.5" hot-swap drive bay8x SAS3 12Gbps and 4x Hybrid (NVMe/SAS3) 3.5" HDD
    • 12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
    • 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
    • WIO Slots (4x Full-height, Half-length + 3x Low-profile)
    • 3 x 8cm high-performance PWM fan(s)Optional 5 x 6cm 4pin high performance fan(s)

    Viktige bruksområder

    • Enterprise Storage Solutions
    • Data Centers
    • High-Performance Computing
    • Virtualization Platforms
    • Cloud Computing
    • Database Servers
    • Network Storage
    • Backup and Recovery Systems
    • Business-Critical Applications
    • Big Data Analytics

    Beskrivelse

    The Supermicro SC826B WIO Chassis features a 2U form factor with support for proprietary WIO motherboards, maximum motherboard sizes of 12" x 13" or 13" x 13.68". It includes 12x 3.5" hot-swap drive bays, with optional 2x 2.5" hot-swap drive bays, supporting SAS3 12Gbps, SATA3, and NVMe drives. The chassis is cooled by three 8cm high-performance PWM fans, with an option for five 6cm high-performance fans.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 826BAC4-R1K23WB
    Dimensions
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 25.5" (647 mm)
    Gross Weight
    • 55 lbs (24.95 kg)
    Net Weight
    • 40 lbs (18.14 kg)
    Packaging (W x H x L)
    • 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • System Reset button
    LED
    • Power status LED
    • HDD activity LED
    • 2 Network Activity LEDs
    • Unit Identification (UID) LED
    • Fan Fail/System Over Heat LED
    Systems Cooling
    Fans
    • Optional 5x 6cm 4pin high performance fan(s)
    • 3x 8cm high-performance PWM fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U 1200W/1000W Titanium Power Supply W/PM Bus W76xL336xH40mm
    Power Efficiency
    • 96%
    Total Output Power and Input
    • 1200W with Input 200 - 240Vac
    • 1000W with Input 100 - 127Vac
    • 1200W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 100A / Min: 0A (200Vdc - 240Vdc)
    • Max: 100A / Min: 0A (200Vac - 240Vac)
    • Max: 83A / Min: 0A (100Vac - 127Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT826-S8824
    • O/P: 12V/135
    • +5V Max: 40A
    • +3.3V Max: 24A
    • -12V Max: 0.6A
    Certification
    • Titanium Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • UL/CB
    • UL/CUL

    Standard Delliste

    Part Number Quantity Description
    Air Shroud
    MCP-310-29001-0N1SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
    Bracket
    MCP-320-82601-0N1Middle fan bracket for 826B/216B with 3 X 8cm fan
    HD Backplane
    BPN-SAS3-826A-N41BPN-SAS3-826A-N4,HF,RoHS/REACH
    Cable(s)
    CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    CBL-0160L2US POWER CORD 16AWG, PB FREE
    CBL-0182L1PWR EXTENSION.HDD TO RIGHT ANGLE HDD,PBF
    CBL-PWEX-10693PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS
    Part(s)
    MCP-230-82603-0N1Top cover for SC826B, 216B WIO/UIO w/ FH-AOC mylar
    MCP-240-00103-0N12U WIO riser card bracket for SC825, SC826, SC213, SC216
    MCP-290-00088-0N1SC119 Intrusion assembly
    MCP-290-82605-0V1826 handle
    MCP-290-82606-0N1SC826 HDD Backplane Bracket
    Fan(s)
    FAN-0158L4380x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH
    Front Panel
    FPB-TB826116 pin Cable Adaptor Board for SC826
    Drive Tray(s)
    MCP-220-00075-0B12Black gen 5.5 hot-swap 3.5" HDD tray
    MCP-290-82607-0N1826B/216B rear dummy cover for 2 X 2.5" HDD cage,RoHS
    Power Distributor
    PDB-PT826-S88241PDB with shorter 24pin and 8pin cables for SC826B
    Power Supply & Accessory
    PWS-1K23A-1R2AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
    Mounting Rail(s)
    MCP-410-00007-0N1Rail screw bag
    MCP-290-00053-0N1Rail set, quick/quick, default for 2,3U 17.2"W
    MCP-290-00060-0N1Threaded rail adapter default for round hole rack
    Rear Window
    MCP-240-82609-0N1SC826B, 216B WIO rear window

    Valgfrie Opsjoner

    Part Number Quantity Description
    Front Bezel
    MCP-210-82601-0B-Black Front Bezel for 826 chassis
    HDD Kit
    MCP-220-82609-0N-Rear 2.5 x 2 Hot swap HDD kit for 216B/826B/417B/846X/847B
    MCP-220-82616-0N-12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B
    Short Rail
    MCP-290-00058-0N-Quick-release outer rail for square hole short-depth rack (19"~26.4")
    Tray(s)
    MCP-220-00116-0B-Black gen-5 3.5-to-2.5 NVMe drive tray, Orange tab (for hotswap NVMe drive),RoHS/REACH
