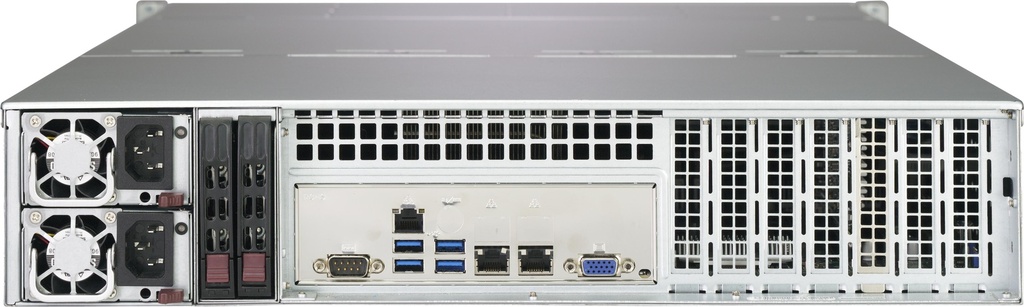

The Supermicro CSE-829HAC12-R1K62LPB is a 2U chassis designed for high-performance and flexible storage solutions, featuring 12 NVMe/SAS3 hybrid drive bays, enhanced cooling with 4 high-performance fans, and redundant 1600W titanium level power supplies.
Nøkkelfunksjoner
- 12x NVMe/ SAS3 Hybrid Drive Bays Provide Ultimate Flexibility
- Additional 4x 3.5" Hot-swap SAS3/ SATA3 HDD Bays with Rear 2x 2.5” SAS3/SATA3 HDD option
- Enhanced cooling design w/ 4x 8cm 13.5K RPM high-performance fans
- Redundant 1600W Titanium Level (96%+) high-efficiency supplies
- Optional cable management arm for hot-swap access
- 7x Low-profile, Half-length I/O expansion slots
Viktige bruksområder
- Data Centers
- Enterprise Storage
- High-Performance Computing
- Cloud Computing
- Virtualization
- Database Applications
Beskrivelse
The Supermicro CSE-829HAC12-R1K62LPB chassis offers exceptional storage flexibility and performance in a 2U form factor. It supports up to 12 NVMe/SAS3 hybrid drive bays for high-speed, high-capacity storage. Additionally, it provides 4 hot-swap SAS3/SATA3 HDD bays and an optional 2x 2.5” SAS3/SATA3 HDD option at the rear. The chassis is equipped with 4x 80mm high-performance fans to maintain optimal operating temperatures and features redundant 1600W Titanium Level high-efficiency power supplies to ensure continuous system operation. For expansion, it includes 7 low-profile, half-length I/O slots and an optional cable management arm for ease of access. This chassis is compatible with both Intel and AMD dual and single processors.
Produktspesifikasjoner
| Specification | Details |
|---|---|
| Product SKUs | |
| SKUs |
|
| Dimensions | |
| Height |
|
| Width |
|
| Depth |
|
| Gross Weight |
|
| Net Weight |
|
| Packaging (W x H x L) |
|
| Available Color |
|
| Front Panel | |
| Button |
|
| LED |
|
| Systems Cooling | |
| Fans |
|
| Operating Environment (System) | |
| Operating Temperature Range |
|
| Non-Operating Temperature Range |
|
| Operating Relative Humidity Range |
|
| Non Operating Relative Humidity Range |
|
| Power Supply | |
| |
| Power Distributor |
|
| Certification |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| HD Backplane | ||
| BPN-SAS3-829HA-A4 | 1 | 4-port internal SAS3 12Gbps backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD |
| BPN-SAS3-LA26A-N12 | 1 | 2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS |
| Cable(s) | ||
| CBL-0277L | 2 | HDD POWER CABLE (BIG 4 PIN; 32CM), PBF |
| CBL-CDAT-0607 | 1 | [NR] FRONT CNTL,20 TO 20 PIN, P0.5, FFC,FLAT, 23.5CM, STD,Ro |
| CBL-CDAT-0921-85 | 1 | [NR] I2C,(1x4F to 1x4F)/P2.5,85CM,26AWG,RoHS |
| CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH |
| CBL-PWEX-0645 | 2 | Big 4 Pin Male to Big 4 Pin Female, Power Extension 15cm |
| CBL-PWEX-1078 | 4 | PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS |
| Part(s) | ||
| MCP-120-00115-0N | 7 | Blank LP L-bracket with 4x4 vent holes |
| MCP-120-82920-0N | 1 | Mid tray side support BKT for SC829H |
| MCP-230-82902-0N | 1 | Top middle cover for SC829H |
| MCP-230-82903-0N | 1 | Top rear cover for SC829H |
| MCP-290-00088-0N | 1 | SC119 Intrusion assembly |
| MCP-290-82921-0V | 1 | SC829H Auto-latch right handle |
| MCP-290-82922-0V | 1 | 2U Auto-latch left handle for SC829H with FPB-FP826-T |
| Fan(s) | ||
| FAN-0166L4 | 4 | 80x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4) |
| FAN-0206L4 | 4 | 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers |
| FAN-0209L4 | 4 | 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above |
| Front Panel | ||
| FPB-TB826-T | 1 | Chassis transfer board for SC826 |
| Drive Tray(s) | ||
| MCP-290-82607-0N | 1 | 826B/216B rear dummy cover for 2 X 2.5" HDD cage,RoHS |
| MCP-220-00075-0B | 12 | Black gen 5.5 hot-swap 3.5" HDD tray |
| MCP-220-82902-0N | 1 | Middle tray plate for SC829H |
| MCP-220-82903-0N | 4 | Internal mid tray with handle for SC829H |
| Power Distributor | ||
| PDB-PT829H-2824 | 1 | 2U standard output with 24Pin PDB support up to |
| Power Supply & Accessory | ||
| PWS-1K62A-1R | 2 | AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH |
| Mounting Rail(s) | ||
| MCP-290-00053-0N-01 | 1 | 36"; Rail set for Auto-latch, quick/quick, 2, 3U 17.2";W |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| Adaptor Bracket | ||
| MCP-120-82503-0N | - | Cable arm adapter for SC825LP,213LP (MCP-290-00073-0N required),HF,RoHS/REACH,PBF |
| Cable | ||
| CBL-SAST-0929 | - | OCuLink controller to MiniSAS HD backplane V.91,INT,PCIe NVMe SSD, 57CM,34AWG |
| CBL-SAST-0972 | - | OCuLink controller to MiniSAS HD backplane V.91,INT,PCIe NVMe SSD, 70CM,34AWG |
| Cable Management Arm | ||
| MCP-290-00073-0N | - | Supermicro Cable Management Arm for 2U, 3U and 4U chassis |
| HDD Kit | ||
| MCP-220-82616-0N | - | 12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B |
| HDD Tray Converter | ||
| MCP-220-00043-0N | - | Black hot-swap gen 4 3.5 to 2.5 HDD tray |
| MCP-220-00118-0B | - | Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH |
| Rail | ||
| MCP-290-00058-0N | - | Short rail set, quick release, 19.6"~26.9" Extendable Length |
| Tray(s) | ||
| MCP-220-00138-0B | - | Black gen-5.5 tool-less NVMe 3.5-to-2.5 drive tray, Orange tab |
