Summary Description

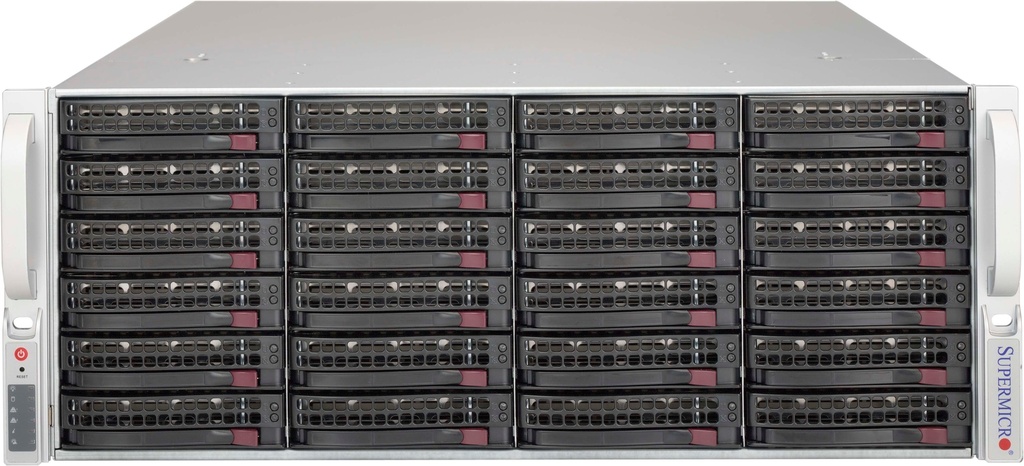

The Supermicro 4U SC846B JBOD chassis supports 24 hot-swappable 3.5" SAS3 drives and provides advanced features like a single expander backplane, redundant 1000W power supplies, and robust system cooling. Ideal for cloud backup and high-density storage applications.
Key Features
- Cloud Backup, Data Replication, or High Density Archive Storage Applications4U Storage JBOD Chassis with capacity 24 x 3.5" hot-swappable HDDs bays
- Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 1000W (1+1) 96% efficient Titanium level power supplies
- 5 hot-plug redundant cooling fans
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
- Qualified SAS HBA / controller:AOC-SAS3-9500-8E- 12Gb/s 2-external ports SAS3 HBAAOC-SAS3-9500-16E- 12Gb/s 4-external ports SAS3 HBAAOC-SAS3-9580-8I8E- 12Gb/s 2-external ports SAS3 RAID Controller
Key Applications
- Cloud Backup
- Data Replication
- High Density Archive Storage
- Data Centers
- Enterprise Storage Solutions
- High Availability Systems
- Redundant Storage
- Scalable Storage Systems
- Remote System Monitoring
- SAS3 Storage Configurations
Description
The Supermicro 4U SC846B chassis offers exceptional storage capacity with support for 24 x 3.5" SAS3 drives. It features a single expander backplane with 12Gb/s throughput, along with 4 x Mini-SAS HD ports for flexible internal and external connectivity. Remote system management is facilitated by a single IPMI port, and the system is powered by dual redundant 1000W Titanium level power supplies. Efficient cooling is maintained by 5 hot-swap fans, making it ideal for high-density archive storage and data replication applications.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SKUs |
|
| Dimensions | |
| Height |
|
| Width |
|
| Depth |
|
| Gross Weight |
|
| Net Weight |
|
| Packaging (W x H x L) |
|
| Available Color |
|
| Front Panel | |
| Button |
|
| LED |
|
| Systems Cooling | |
| Fans |
|
| Operating Environment (System) | |
| Operating Temperature Range |
|
| Non-Operating Temperature Range |
|
| Operating Relative Humidity Range |
|
| Non Operating Relative Humidity Range |
|
| Power Supply | |
| |
| Power Efficiency |
|
| Total Output Power and Input |
|
| AC Input Frequency |
|
| Dimensions (L x W x H) |
|
| Output Type |
|
| +12V |
|
| +5Vsb |
|
| Power Distributor |
|
| Certification |
|
| Regulatory (Power Supply) | |
| Power Supply Safety / EMC |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Air Shroud | ||
| MCP-310-49003-0N | 1 | SC846 Intel DP X9, X8 PC air shroud 1368x13/12x13MB |
| Bracket | ||
| MCP-120-84702-0N | 1 | CB3 mounting bracket for use on chassis with CB2 holes. Bracket to mount CB3 card on existing CB2 standoff on SC847/SC417/SC837/SC826/SC836/SC846 in JBOD configuration.,HF,RoHS/REACH,PBF |
| MCP-120-84706-0N | 1 | FH PCI bracket for CBL-NTWK-0587 LAN extension cable,HF,RoHS/REACH,PBF |
| HD Backplane | ||
| BPN-SAS3-846EL1 | 1 | SAS3 12G Single LSI SAS3 Expander, 24x 3.5" Drive, RoHS |
| Control Board | ||
| CSE-PTJBOD-CB3 | 1 | JBOD chassis power control board with IPMI remote on/off feature |
| Cable(s) | ||
| CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF |
| CBL-0160L | 2 | US POWER CORD 16AWG, PB FREE |
| CBL-0217L | 1 | 16PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF |
| CBL-0296L | 4 | 9" 4 PIN FAN PWS EXTENSION CORD, PBF |
| CBL-CDAT-0601 | 1 | 4 Pin to 4 Pin I2C cable, 50cm, 26AWG,RoHS |
| CBL-NTWK-0587 | 1 | INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD |
| CBL-SAST-0593 | 4 | Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s |
| CBL-SAST-0593-01 | 4 | Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s [FCI] |
| Part(s) | ||
| MCP-230-82501-0N | 1 | Top cover for SC213,216,825,826,835,836,936,846 |
| MCP-120-00061-0N | 7 | Blank FH L-bracket (5x5 square hole) |
| MCP-290-00088-0N | 1 | SC119 Intrusion assembly |
| MCP-290-84603-0N | 1 | SC846 HDD Backplane Bracket |
| MCP-290-84608-0N | 1 | Dual HDD opening dummy cover for 846B chassis |
| MCP-260-00011-0N | 1 | I/O shield without any opening |
| Fan(s) | ||
| FAN-0125L4 | 2 | 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing |
| FAN-0127L4 | 3 | 80x80x38 mm 7K RPM SC846 Middle Fan w/ Housing |
| Front Panel | ||
| MCP-280-82601-0N | 1 | Front control board adapter (TB826) for SC216,826,936,846 |
| Drive Tray(s) | ||
| MCP-220-00075-0B | 24 | Black gen 5.5 hot-swap 3.5" HDD tray |
| Power Distributor | ||
| PDB-PT846-2824 | 1 | PDB with 23pairs input connector support SC846B |
| Power Supply & Accessory | ||
| PWS-1K03A-1R | 2 | 1U 1000W Redundant Power Supply Titanium W/PMbus 76x40x336mm,RoHS/REACH |
| MCP-290-84604-0N | 1 | SC846 PDB Cover |
| Mounting Rail(s) | ||
| MCP-290-00057-0N | 1 set | Rail set, quick/quick, default for 4U 17.2" W |
| MCP-410-00007-0N | 1 | Rail screw bag |
| Rear Window | ||
| MCP-240-84602-0N | 1 | 846B rear window which support 2 X 2.5" HDD module and DVD |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| Cable | ||
| CBL-SAST-0677 | - | 3m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH |
| CBL-SAST-0573 | - | External mini SAS HD to external mini SAS HD cable 28AWG (1M) |
| CBL-SAST-0690-1 | - | MINI SAS HD,12G,EXT,2M,30AWG,RoHS |
| Drive Trays | ||
| MCP-220-00118-0B | - | Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH |
