Embedded Enclosure for 3.5" SBC & 2.5" PICO-ITX,HF,RoHS

CSE-E102
https://safeconsulting.no/web/image/product.template/12041/image_1920?unique=68add06

kr 412,43 412.43 NOK kr 412,43

kr 412,43

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro CSE-E102 offers versatile solutions for industrial automation, smart medical systems, and digital signage. Equipped with Intel® Celeron® Processor 4305UE, it provides reliable performance for various applications.

    Key Features

    • Industrial Automation, Retail - Smart Medical Expert Systems - Kiosk, Interactive info system - Digital Signage
    • Intel® Celeron® Processor 4305UE; Single Socket FCBGA-1528
    • System-on-Chip
    • M.2: B-Key 2242/3042/2280, E-Key 2230, M-Key 2242/2280
    • Up to 64GB Unbuffered Non-ECC SO-DIMM DDR4 2133MHz; 2 DIMM slots
    • 1x 1GbE LAN, Intel PHY i219LM 1x 1GbE LAN, Intel i210IT
    • 4 COM (RS-232/422/485), 4 USB 3.1, TPM onboard
    • 1 HDMI and 1 Display Port
    • Passive CPU Heat Sink and 1x 40mm Chassis Fan
    • Lockable 12V DC 60W power adapter

    Key Applications

    • Industrial Automation
    • Retail - Smart Medical Expert Systems
    • Kiosk, Interactive Info System
    • Digital Signage

    Description

    The Supermicro CSE-E102 is a compact and versatile system designed for industrial automation, smart medical expert systems, kiosks, interactive information systems, and digital signage applications. Powered by the Intel® Celeron® Processor 4305UE and supporting up to 64GB of DDR4 memory, this system ensures robust performance and reliability. It includes multiple I/O options, comprehensive expansion slots, and a durable chassis, making it an ideal choice for a wide range of demanding environments.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-E102-9W-C
    • SuperServer E102-9W-C ( Black )
    Motherboard
    Installed Motherboard
    • Super X11SWN-C
    Processor/Cache
    CPU
    • Intel® Celeron® Processor 4305UE
    • Single Socket FCBGA-1528
    • System-on-Chip
    • CPU TDP support 15W
    Note
    • BIOS version 2.0 or above is required
    System Memory
    Memory Capacity
    • Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2133MHz, in 2 DIMM slots
    Memory Type
    • DDR4 up to 2133MHz
    DIMM Sizes
    • 32GB, 16GB, 8GB, 4GB
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • System on Chip
    Network Controllers
    • Single LAN with Intel® I210IT
    • Single LAN with Intel® PHY I219LM
    Audio
    • ALC 888S HD Audio
    Video
    • Intel® UHD Graphics 620
    Input / Output
    USB
    • 4 USB 3.1 Gen2 ports (Type A), 4 USB 2.0 (Type A)
    Video Output
    • 1 HDMI and 1 Display Port
    COM Port
    • 4 COM ports: 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control (option)
    Audio
    • 1 HD Audio header(Mic-in/Line-Out) (option)
    Others
    • TPM onboard
    Chassis
    Form Factor
    • 3.5" SBC
    Model
    • CSE-E102
    Dimensions
    Width
    • 7.48" (190mm) / 11.81" (300mm) - pkg.
    Height
    • 1.72" (44mm) / 5.12" (130mm) - pkg.
    Depth
    • 4.72" (120mm) / 11" (279mm) - pkg.
    Weight
    • Gross Weight: 4.5 lbs (2.04 kg)
    • Net Weight: 2.65 lbs (1.2 kg)
    Available Colors
    • Black

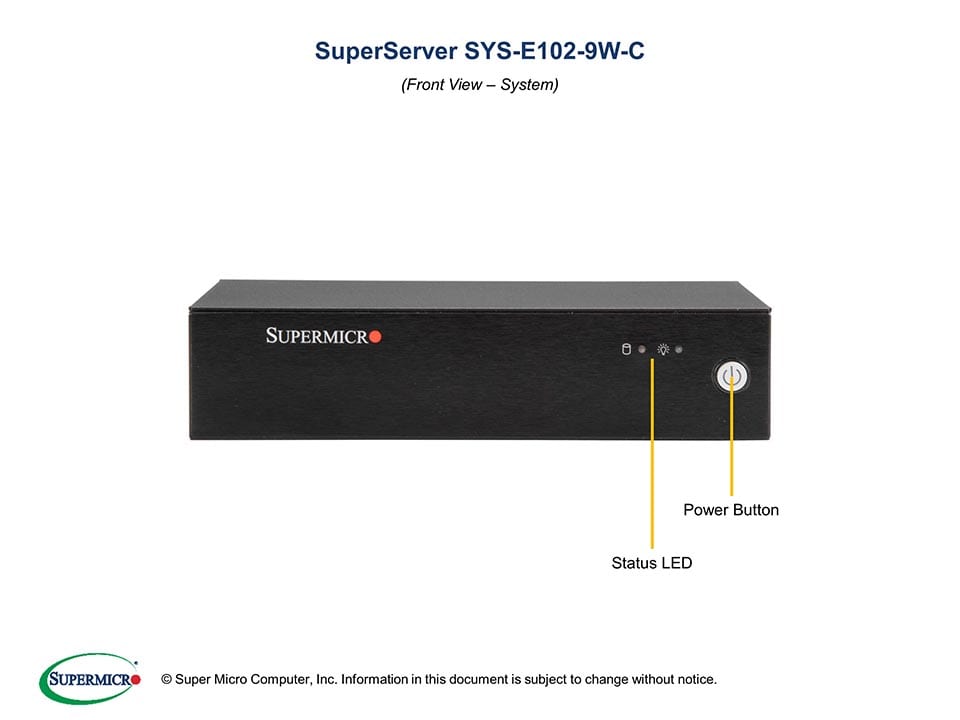

    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED and Hard drive activity LED
    Expansion Slots
    M.2
    • Key: B-Key, M-Key, E-Key
    • M.2 2242/3042/2280 B-Key (1 USB 3.0/2.0, 1 SATA Gen3) with nano SIM holder
    • M.2 2230 E-Key (CNVi/PCI-E 3.0 x1/USB2)
    • M.2 2242/2280 M-Key (PCI-E 3.0 x4, SATA Gen3 x 1), NVMe support
    System Cooling
    Fans
    • Passive CPU Heat Sink and 1x 40mm Chassis Fan
    System BIOS
    BIOS Type
    • AMI UEFI
    Management
    Software
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • +12V ~ +24V DC Wide power range input
    • ACPI Power Management
    • Control of power-on for recovery from AC power loss
    • Force Power On by Jumper
    • CPU thermal trip support for processor protection
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:0°C ~ 50°C (32°F ~ 122°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    General
    Power Supply
    • Lockable 12V DC 60W power adapter

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11SWN-C1Super X11SWN-C Motherboard
    CSE-E1021Embedded Enclosure for 3.5" SBC
    Power Adapter
    MCP-250-10134-0N160W DC power adapter with US power cord 18AWG 6ft (0-40°C)
    Cooling Fan
    FAN-0170L4140x40x10 mm, 7K RPM, SC101S Chassis Fan, RoHS
    Cable
    CBL-0296L14 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
    CBL-PWEX-10291PWR EXT,2X4F/P2.00 to 2x2M/P4.2, 12V,15CM,24AWG, 2.5A/pin, -20~80C, RoHS
    I/O Shield
    MCP-260-10204-0B1CSE-E102 I/O shield for X11SWN
