  2. Black S5 Mid-Tower Chassis (Red Trim) W/O Power Supply

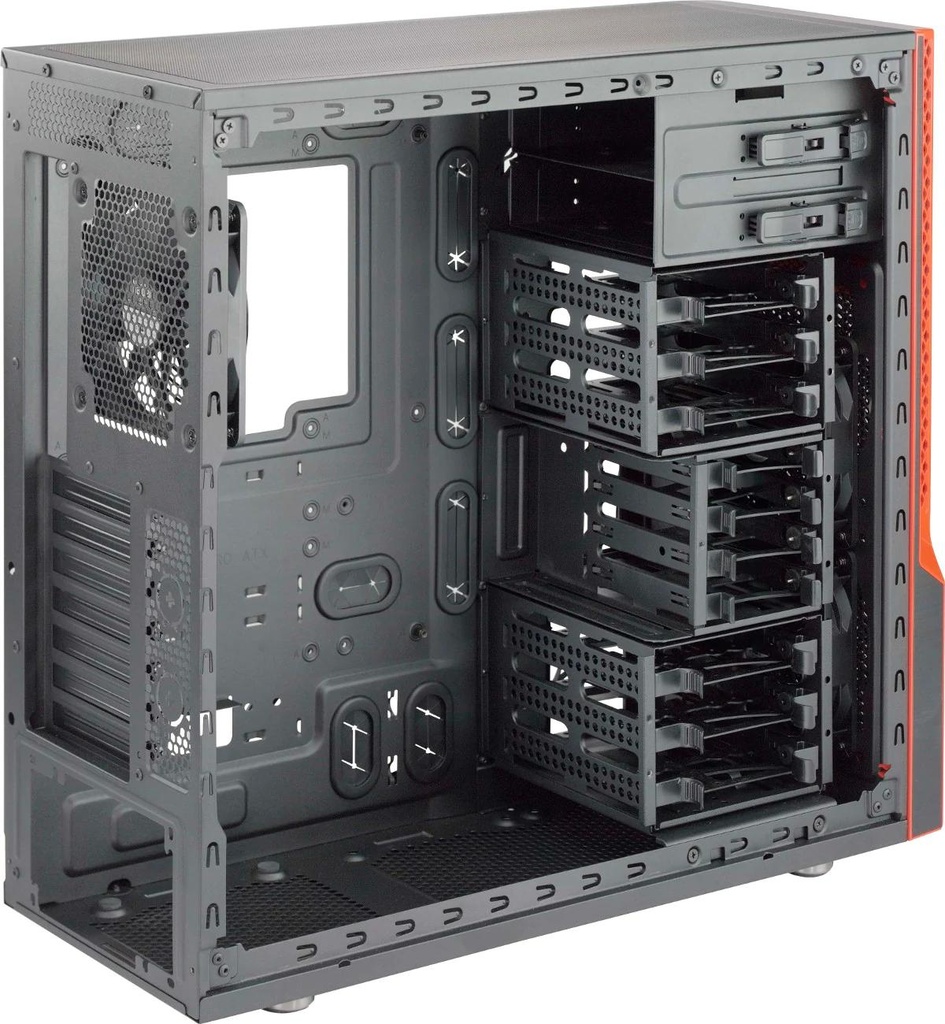

Black S5 Mid-Tower Chassis (Red Trim) W/O Power Supply

CSE-GS5B-000R
https://safeconsulting.no/web/image/product.template/12659/image_1920?unique=8cb419b

kr 1 206,66 1206.66 NOK kr 1 206,66

kr 1 206,66

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Black S5 Mid-Tower Chassis (Red Trim) offers a versatile design with no power supply included. It features removable drive bays for up to 10 drives, tool-less installation, and excellent cable management solutions. Included are 3x 120mm PWM fans for superior cooling performance.

    Nøkkelfunksjoner

    • Black interior paints throughout the chassis - best for DIY gamer.
    • Black anodized brushed aluminum fascia front panel with two USB 3.0 ports
    • Removable 3.5” and 2.5” HDD/SSD cages with tool-less trays for up to 10 drives
    • Tool-less 5.25” device installation with trays to support 3.5” and 2.5” drives
    • Cable management holes with rubber grommets for clean builds
    • Removable magnetic dust filter
    • One click front grille access
    • Large motherboard tray cut-out for CPU cooler back-plates
    • 3x 120mm PWM fans included

    Viktige bruksområder

    • DIY PC builds
    • Gaming setups
    • Server builds
    • Workstation chassis
    • Home office computers
    • Professional servers
    • High-performance computing
    • Custom PCs
    • Data storage solutions
    • Silent PCs

    Beskrivelse

    The Black S5 Mid-Tower Chassis features a striking red trim and no power supply, offering a versatile design suitable for various DIY builds. Key highlights include black anodized brushed aluminum fascia, removable HDD/SSD cages, and tool-less device installation. It includes one-click front grille access, magnetic dust filter, and cable management holes for a clean, efficient build. Comes with three 120mm PWM fans for optimal cooling.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis GS5B-000R
    Dimensions
    Height
    • 18.1" (460 mm)
    Width
    • 7.9" (200 mm)
    Depth
    • 19.4" (493 mm)
    Gross Weight
    • 23.2 lbs (10.52 kg)
    Net Weight
    • 18.2 lbs (8.26 kg)
    Packaging (W x H x L)
    • 10.4" (264 mm) x 22.4" (569 mm) x 20.4" (518 mm)
    Available Color
    • Black / Red
    Front Panel
    Button
    • Power On/Off button
    • System Reset button
    LED
    • Power status LED
    • HDD activity LED
    Systems Cooling
    Fans
    • 1x 12cm rear exhaust fan(s)
    • 2x 12cm front cooling fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Control Board
    MCP-280-GS501-0N1S5 Mid-Tower Chassis Front Control Panel PCB Assembly w/ Cables
    Part(s)
    MCP-290-GS501-0B1S5 Mid-Tower Chassis Top Magnetic Filter Assembly
    MCP-290-GS502-0B1S5 Mid-Tower Chassis Bottom Magnetic Filter Assembly
    MCP-290-GS504-0B1S5 Mid-Tower Chassis Front Bezel Side Filter Assembly
    MCP-290-GS506-0B1S5 Mid-Tower Chassis Front Bezel Grille w/ No Logo Assembly
    MCP-230-S5B01-0B1Black S5 Mid-Tower Chassis Left Side Cover (Thumb Screws x2)
    MCP-230-S5B02-0B1Black S5 Mid-Tower Chassis Right Side Cover(Thumb Screws x2)
    Drive Tray(s)
    MCP-220-GS502-0B4S5 Mid-Tower Chassis Tool-less Internal 2.5" HDD Carrier
    MCP-220-GS503-0B6S5 Mid-Tower Chassis Tool-less Internal 3.5" HDD Carrier
    MCP-220-S5B01-0B2Black S5 Mid-Tower Chassis 5.25inch Drive Tray

    Optional Part List

    Part Number Quantity Description
    Fan Kit
    FAN-0124L4112cm (1850rpm) cooling Fan
    Front Dust Filter
    MCP-290-GS503-0B1S5 Mid-Tower Chassis Front Bezel Grille with Supermicro Logo Assembly
    LCD Module
    MCP-220-00095-0B15.25" USB LCD Kit
    Thumb Screw
    MCP-110-GS501-0B1S5 Mid-Tower Chassis Side Panel Thumb Screw-Black Color
