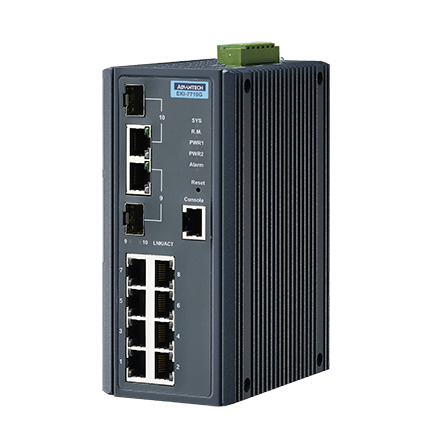

8G + 2G Combo Managed switch w/Wide temp

SKU: EKI-7710G-2CI-AE
GTIN (EAN/UPC): 4719879822786
Brand: Advantech
https://safeconsulting.no/web/image/product.template/13103/image_1920?unique=9fe4ff9

kr 13 406,18 13406.18 NOK kr 13 406,18 Ekskl. mva

kr 13 406,18 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Beskrivelsesammendrag

    The EKI-7710G-2CI-AE is a managed Ethernet switch featuring 8 gigabit ports and 2 gigabit combo ports, designed for versatility and reliability across a wide temperature range. Equipped with advanced redundancy protocols and security features, it ensures robust network performance. Ideal for industrial applications requiring durable connectivity solutions.

    Nøkkelfunksjoner

    • 8 Gigabit Ports + 2 Gigabit Combo Ports
    • Supports SNMP v1/v2c/v3, Web, Telnet
    • Redundant Gigabit X-Ring Pro
    • Wide Operating Temp: -40 to 75°C
    • Security with 802.1X and RADIUS
    • Dual 12-48V DC Power Input

    Viktige bruksområder

    • Industrial Networking
    • Automation Systems
    • Transportation Systems
    • Utility Networks
    • Traffic Management

    Beskrivelse

    The EKI-7710G-2CI-AE managed Ethernet switch offers 8 gigabit and 2 combo ports with flexible fiber expansion through SFP sockets. Its high-speed recovery, security management, wide operating temperature range, and dual power inputs make it suitable for challenging industrial environments. Advanced management options deliver optimal control and monitoring.

    Produktspesifikasjoner

    Specification Details
    Power
    Power Connector Type
    • 6-pin Removable Screw Terminal
    Power Consumption
    • 12.1W (system)
    Power Input (DC)
    • 12 ~ 48 VDC
    Power Operating Current
    • 0.25A @ 48VDC
    Protection
    Reverse Polarity
    • Present
    Environment
    Operating Temperature
    • -40 ~ 75°C (-40 ~ 167°F)
    Relative Humidity
    • 10~95%
    Storage Temperature
    • -40 ~ 85°C (-40 ~ 185°F)
    Mechanism
    Dimensions (W x H x D)
    • 74 x 152 x 105 mm (2.91 x 5.98 x 4.13)
    IP Rating
    • IP30
    Mounting (DIN-rail)
    • Yes
    Weight
    • 1.1 kg
    Ethernet Communication
    Fiber Port Connector Type
    • SFP cage
    Fiber Transmission Distance
    • Up to 110 km
    RJ-45 Port Connector Type
    • RJ-45
    RJ-45 Port Number
    • 10
    RJ-45 Transmission Distance
    • 100 m
    RJ-45 Transmission Speed
    • 10/100/1000 Mbps
    Switch Properties
    Jumbo Frame
    • 9,216 bytes
    MAC Table Size
    • 8K
    Packet Buffer Size
    • 4.1M bit
    Switch Fabric Speed
    • 20Gbps
    Certification
    EMC
    • EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
    EMI
    • CE, FCC Class A
    Safety
    • LVD IEC/EN 62368-1
    MTBF
    Method
    • Telcordia(Relax), GB
    Time
    • 858,835 hours
    Warranty
    Warranty Period
    • 5 years
