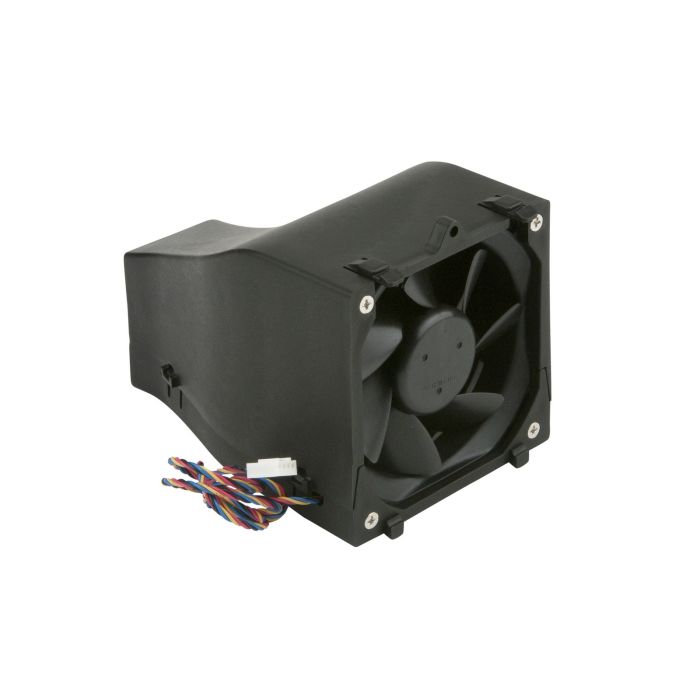

92X25MM 4-PIN PWM FAN W/ HUS FOR SC733
FAN-0076L4
Summary Description
Delta (QFR0912VH-9T29) FAN-0076L4 is a standard fan for CSE-733 series chassis. This fan has been fully tested and validated by Supermicro to ensure the best quality and cooling performance. It is compatible with CSE-733 Series Chassis and has a rated fan speed of 4,200 RPM.
Key Features
- Dimensions: 92L x 92H x 25W (mm)
- Maximum Airflow Rate: 74.8 CFM
- Compatible with CSE-733 Series Chassis
- Supermicro Certified
- Delta Axial Fan - 92 x 92 x 25mm
- Fan Speed: 4,200 RPM
- Noise Level: 45 dBA
- Rated Current: 0.4A
Key Applications
- CSE-733 Series Chassis
- Server Cooling
- Standard Axial Fan Use
Description
Delta (QFR0912VH-9T29) FAN-0076L4 is a standard fan for CSE-733 series chassis. This fan has been fully tested and validated by Supermicro to ensure the best quality and cooling performance. It is compatible with CSE-733 Series Chassis and has a rated fan speed of 4,200 RPM with a maximum airflow rate of 74.8 CFM. The noise level is 45 dBA, and the rated current is 0.4A. The dimensions are 92L x 92H x 25W (mm).
Product Specifications
| Specification | Details |
|---|---|
| General | |
| Brand |
|
| Fan Size |
|
| Rated Fan Speed |
|
| Acoustic Noise Level |
|
| Maximum Airflow Rate |
|
| Rate Current (A) |
|
| Connector |
|
| Dimensions |
|
| Search Terms |
|
| Warranty |
|
| Product Environmental Compliance |
|
| Validated Chassis |
|
