80x80x38 mm, 16.5K RPM, Non-hot-swappable Middle Cooling Fan
FAN-0183L4
Summary Description

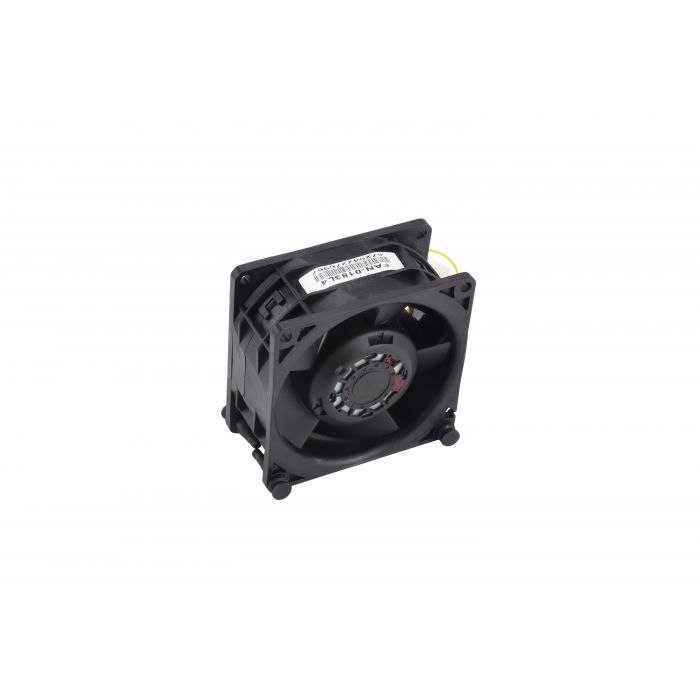

Supermicro FAN-0183L4 is an 80mm axial fan designed for X10/X11 Twin Pro and Big Twin Series Servers. The fan, based on Nidec (V80E12BS2NB5-57T07), has been rigorously tested and validated by Supermicro to ensure top-notch quality and cooling performance. It features a fan speed of 16,500 RPM, acoustic noise level of 72 dB(A), and maximum airflow rate of 146 CFM. The fan is Supermicro Certified and comes with a 1-year warranty.
Key Features
- Nidec Axial Fan - 80 x 80 x 38mm
- Connector: 6 Pin (Proprietary)
- Brand: Nidec
- Maximum Airflow Rate: 146 CFM
- Supermicro Certified
- Fan Speed: 16,500 RPM
- Rate Current (A): 5.52A
- Compatible with X10/X11 Twin Pro and Big Twin Series Servers
- Rated Fan Speed: 16,500 RPM
- Acoustic Noise Level: 72 dB(A)
Key Applications
- X10/X11 Twin Pro Series Servers
- Big Twin Series Servers
Description
Supermicro FAN-0183L4 is a fan for X10/X11 Twin Pro and Big Twin Series Servers. This fan is based on Nidec (V80E12BS2NB5-57T07) and has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.
Product Specifications
| Specification | Details |
|---|---|
| General | |
| Brand |
|
| Fan Size |
|
| Rated Fan Speed |
|
| Acoustic Noise Level |
|
| Maximum Airflow Rate |
|
| Rate Current (A) |
|
| Connector |
|
| Dimensions |
|
| Warranty |
|
| Product Environmental Compliance |
|
