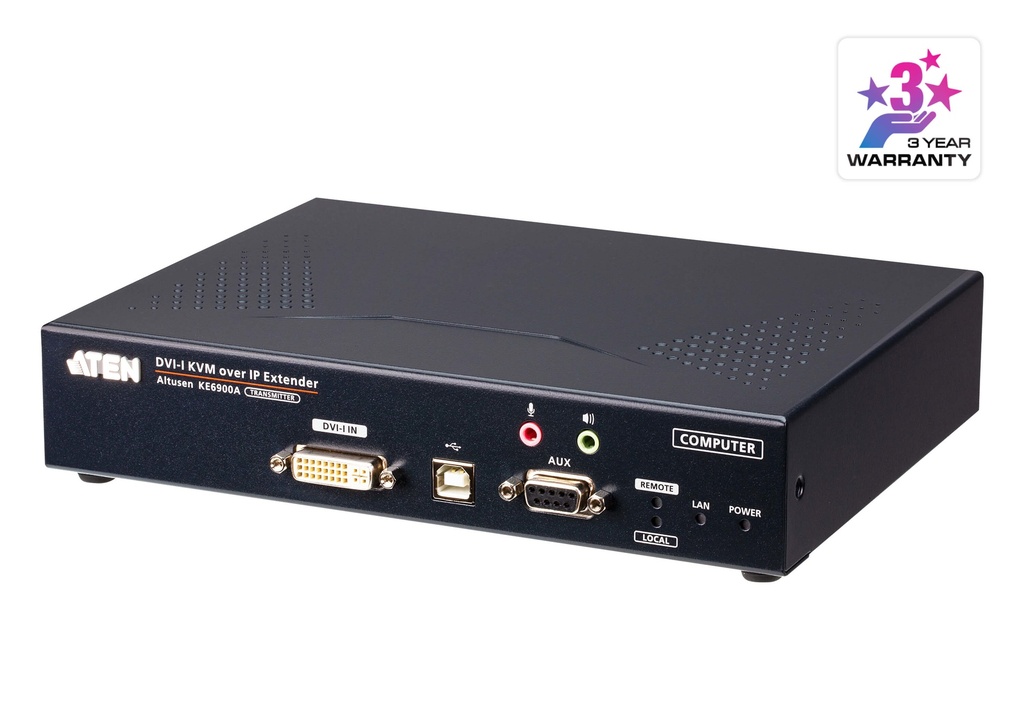

Aten KVM Extender KVM KE6900AT Transmitt

SKU: KE6900AT-AX-G
Brand: Aten
https://safeconsulting.no/web/image/product.template/13978/image_1920?unique=f4f0e22

kr 21 723,90 21723.9 NOK kr 21 723,90 Ekskl. mva

kr 21 723,90 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    ATEN FHD DVI-I KVM over IP Transmitter. Type: Transmitter, Connectivity technology: Wired, Maximum transfer distance: 10000 m. Transmitter video port type: DVI-I, Transmitter local keyboard/mouse port type: USB. USB port type: USB Type-A. AC input voltage: 5 V, Power consumption (transmitter) (max): 7.95 W. Package width: 207 mm, Package depth: 414 mm, Package height: 117 mm

    Nøkkelfunksjoner

    • Transmitter
    • Wired Maximum transfer distance: 10000 m
    • Maximum digital resolution: 1920 x 1200 pixels
    • Material: Metal
    • Transmitter video port type: DVI-I Transmitter local keyboard/mouse port type: USB
    • PC Audio in PC Audio out
    • Power consumption (transmitter) (max): 7.95 W
    • Black

    Viktige bruksområder

    • Remote Server Management
    • Data Center Operations
    • Secure Computing Environments
    • Temperature Controlled Facilities
    • IT Helpdesk Operations

    Beskrivelse

    The KE6900A extender is consisted of a high performance IP-based transmitter (KE6900AT) that connects to the computer and a receiver (KE6900AR) that provides console access from a separate location. The KE6900A allows extended access of computer systems remotely via USB consoles (USB keyboard, USB mouse, DVI monitor) over intranet, enabling users to place the computer system in secure and temperature controlled environments, which maybe isolated from users' workstation.
    1x KE6900AT DVI-I Single Display KVM over IP Transmitter
    1x 0AD8-8005-40MA Power Adapter
    1x LIN2-418K-E12G Power Cord
    1x LIN5-35W1-W11G KVM Cable (DVI-D, USB, Audio; 1.8m/6ft)
    1x Foot Pad Set (4 pcs.)
    1x KC06-0040-200G Mounting Kit
    1x User Instructions

    Produktspesifikasjoner

    Specification Details
    Features
    Type
    • Transmitter
    Connectivity technology
    • Wired
    Maximum transfer distance
    • 10000
    Cable types supported
    • Cat5e
    Maximum digital resolution
    • 1920 x 1200
    KVM port selection
    • Push-buttons
    Colour depth
    • 24
    On Screen Display (OSD)
    • Yes
    Product colour
    • Black
    Material
    • Metal
    LED indicators
    • Yes
    Transmitter
    Transmitter video port type
    • DVI-I
    Transmitter local keyboard/mouse port type
    • USB
    RJ-45 ports quantity (transmitter)
    • 1
    Ports & interfaces
    USB port type
    • USB Type-A
    USB 2.0 ports quantity
    • 2
    RJ-45 ports quantity
    • 1
    PC Audio in
    • Yes
    PC Audio out
    • Yes
    Power
    AC input voltage
    • 5
    Power consumption (transmitter) (max)
    • 7.95
    Packaging data
    Package width
    • 207
    Package depth
    • 414
    Package height
    • 117
    Package weight
    • 2345
    Packaging content
    AC adapter included
    • Yes
    Cables included
    • Audio (3.5mm),DVI,USB
    Manual
    • Yes
    Mounting bracket(s) included
    • Yes
    Operational conditions
    Operating temperature (T-T)
    • 0 - 50
    Storage temperature (T-T)
    • -20 - 60
    Operating relative humidity (H-H)
    • 0 - 95
    Technical details
    Dimensions (WxDxH)
    • 163.3 x 215 x 41.8
    Weight
    • 1730
    Logistics data
    Master (outer) case net weight
    • 5190
    Harmonized System (HS) code
    • 84733080
    Master (outer) case width
    • 370
    Master (outer) case length
    • 427
    Master (outer) case height
    • 232
    Master (outer) case gross weight
    • 7750
    Products per master (outer) case
    • 3
