  2. Aten KVM Extender KVM KE9950T

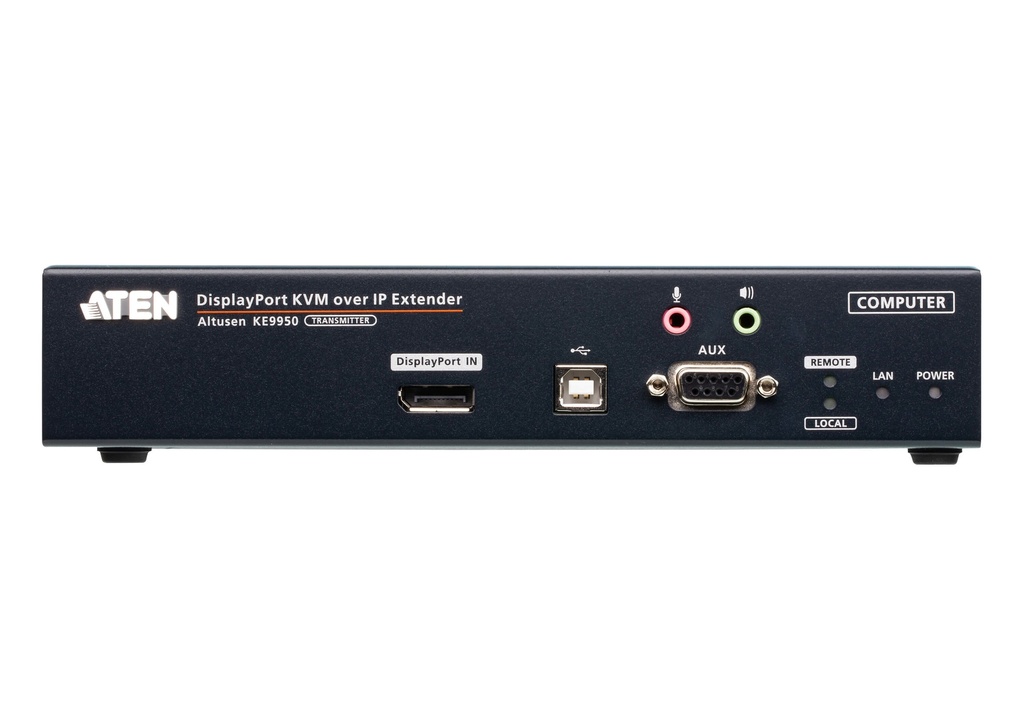

Aten KVM Extender KVM KE9950T

SKU: KE9950T-AX-G
Brand: Aten
https://safeconsulting.no/web/image/product.template/13937/image_1920?unique=9d3b09e

kr 27 975,20 27975.2 NOK kr 27 975,20 Ekskl. mva

kr 27 975,20 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    ATEN 4K DP KVM over IP Transmitter. Type: Transmitter, Connectivity technology: Wired, Maximum transfer distance: 10000 m. Transmitter video port type: DisplayPort, Transmitter local keyboard/mouse port type: USB. AC adapter output voltage: 5 V, Power consumption (transmitter) (max): 9.51 W. Transmitter width: 21.5 cm, Transmitter depth: 16.3 cm, Transmitter height: 4.18 cm. Package width: 207 mm, Package depth: 414 mm, Package height: 117 mm

    Nøkkelfunksjoner

    • Transmitter
    • Wired Maximum transfer distance: 10000 m
    • Maximum digital resolution: 3840 x 2160 pixels
    • Material: Metal
    • Transmitter video port type: DisplayPort Transmitter local keyboard/mouse port type: USB
    • PC Audio in PC Audio out
    • Power consumption (transmitter) (max): 9.51 W
    • Black

    Viktige bruksområder

    • Data Centers
    • Broadcasting
    • Post-Production
    • Control Rooms
    • Secure Environments
    • IT Management
    • Media Editing
    • Medical Imaging
    • Education Facilities
    • Command Centers

    Beskrivelse

    The KE9950 4K DisplayPort Single Display KVM over IP Extender consists of a high performance IP-based transmitter KE9950T that connects to the computer and receiver KE9950R that provides console access from a separate location. The KE9950 allows access to a computer system from a remote USB console (USB keyboard, USB mouse, DisplayPort monitor) over an intranet, enabling users to locate computers in a secure and temperature controlled environment, which is isolated from users' workstation.
    1x KE9950T 4K DisplayPort Single Display KVM over IP Transmitter
    1x LIN5-20K1-K13G DisplayPort Cable
    1x LIN6-04U1-V1BG USB 2.0 Type-A to Type-B Cable
    1x 0AD8-8005-40MA Power Adapter
    1x LIN2-418K-E12G Power Cord
    1x Foot Pad Set (4 pcs.)
    1x Mounting Kit
    1x User Instructions

    Produktspesifikasjoner

    Specification Details
    Features
    Type
    • Transmitter
    Connectivity technology
    • Wired
    Maximum transfer distance
    • 10000
    Cable types supported
    • Cat5e
    Rack mounting
    • Yes
    Maximum digital resolution
    • 3840 x 2160
    Colour depth
    • 36
    Product colour
    • Black
    Material
    • Metal
    LED indicators
    • Yes
    Certification
    • RoHS
    Transmitter
    Transmitter video port type
    • DisplayPort
    Number of displays supported
    • 1
    Transmitter local keyboard/mouse port type
    • USB
    RJ-45 ports quantity (transmitter)
    • 1
    Ports & interfaces
    RS-232 ports
    • 1
    PC Audio in
    • Yes
    PC Audio out
    • Yes
    Power
    AC adapter output voltage
    • 5
    Power consumption (transmitter) (max)
    • 9.51
    Weight & dimensions
    Transmitter width
    • 215
    Transmitter depth
    • 162.9
    Transmitter height
    • 41.8
    Transmitter weight
    • 1120
    Packaging data
    Package width
    • 207
    Package depth
    • 414
    Package height
    • 117
    Package weight
    • 2220
    Packaging content
    AC adapter included
    • Yes
    Cables included
    • DisplayPort,USB
    Manual
    • Yes
    Operational conditions
    Operating temperature (T-T)
    • 0 - 50
    Storage temperature (T-T)
    • -20 - 60
    Operating relative humidity (H-H)
    • 0 - 95
    Technical details
    Weight
    • 1880
    Logistics data
    Master (outer) case net weight
    • 5640
    Harmonized System (HS) code
    • 84733080
    Master (outer) case width
    • 370
    Master (outer) case length
    • 427
    Master (outer) case height
    • 232
    Master (outer) case gross weight
    • 7390
    Products per master (outer) case
    • 3
