  2. Aten KVM 32-PC 1-Bruker KH1532A

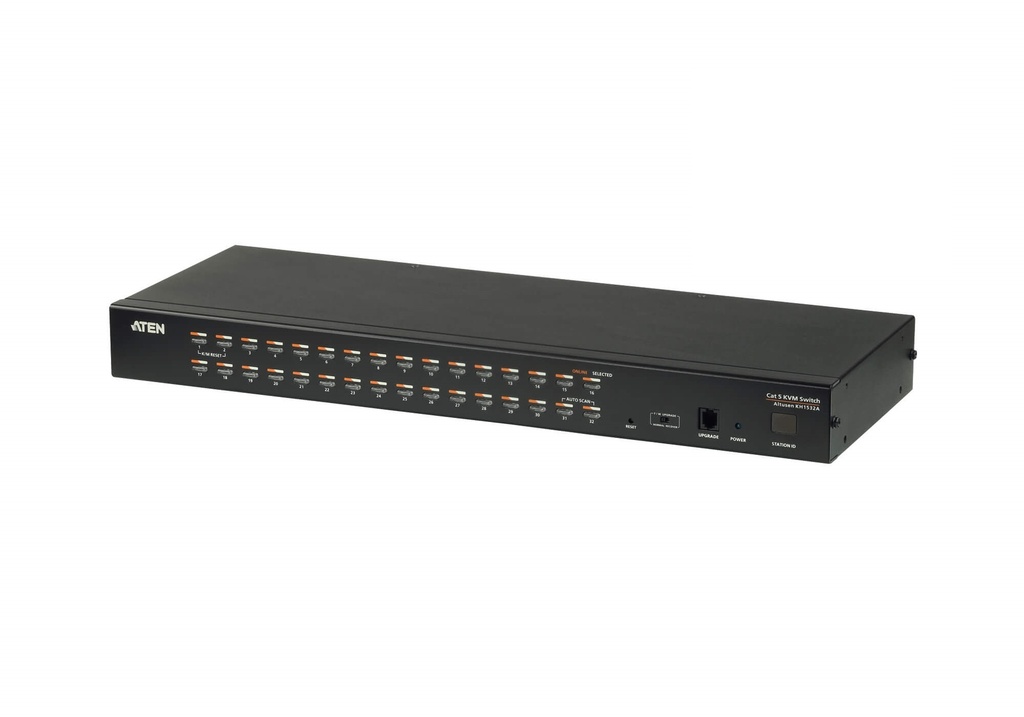

Aten KVM 32-PC 1-Bruker KH1532A

SKU: KH1532A-AX-G
Brand: Aten
https://safeconsulting.no/web/image/product.template/14048/image_1920?unique=1ce4bbb

kr 10 722,80 10722.800000000001 NOK kr 10 722,80 Ekskl. mva

kr 10 722,80 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    ATEN 32-Port Cat 5e/6 KVM Switch. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: Full HD, Maximum resolution: 1920 x 1200 pixels, Scan interval: 1,255 s. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Compliance certificates: RoHS

    Nøkkelfunksjoner

    • Rack mounting 1U Black
    • Number of computers controlled: 32
    • Keyboard port type: USB, PS/2 Mouse port type: USB, PS/2 Video port type: VGA
    • Full HD 1920 x 1200 pixels
    • Housing material: Metal
    • Hot keys
    • AC 4.8 W

    Viktige bruksområder

    • IT Administration
    • Data Centers
    • Server Management
    • Network Operations
    • Control Rooms
    • Enterprise Solutions
    • Computer Lab Environments

    Beskrivelse

    The KH1532A KVM switches are control units that allow IT administrators to access and control multiple computers from a single PS/2 or USB KVM console (keyboard, monitor, and mouse). Operators can take control of up to 32 (KH1532A) computers. By daisy chaining up to 31 additional switches, as many as 1024 computers can be controlled from a central KVM console.
    1x KH1532A Cat 5 High-Density KVM Switch
    1x LIN5-04A2-J11G Firmware Upgrade Cable
    1x LIN2-418K-E12G Power Cord
    1x Rack Mount Kit
    1x Foot Pad Set (4 pcs.)
    1x User Instructions

    Produktspesifikasjoner

    Specification Details
    Ports & interfaces
    Number of computers controlled
    • 32
    Keyboard port type
    • USB, PS/2
    Mouse port type
    • USB, PS/2
    Video port type
    • VGA
    VGA (D-Sub) ports quantity
    • 1
    Console ports
    • PS/2,USB A,VGA (D-Sub)
    Console USB ports quantity
    • 2
    USB connector type
    • USB Type-A
    PS/2 ports quantity
    • 2
    Network
    Ethernet LAN
    • Yes
    Ethernet LAN (RJ-45) ports
    • 32
    Performance
    HD type
    • Full HD
    Maximum resolution
    • 1920 x 1200
    Scan interval
    • 1,255
    Daisy chain
    • Yes
    Number of users
    • 10
    Firmware upgradeable
    • Yes
    Design
    Rack mounting
    • Yes
    Rack capacity
    • 1U
    Product colour
    • Black
    Housing material
    • Metal
    LED indicators
    • Yes
    Push button
    • Yes
    Hot keys
    • Yes
    Display
    Built-in display
    • No
    On Screen Display (OSD)
    • Yes
    Power
    Power source
    • AC
    Input voltage
    • 100 - 240
    AC input frequency
    • 50 - 60
    Input current
    • 1
    Power consumption (typical)
    • 4.8
    Sustainability
    Compliance certificates
    • RoHS
    Operational conditions
    Operating temperature (T-T)
    • 0 - 40
    Storage temperature (T-T)
    • -20 - 60
    Operating relative humidity (H-H)
    • 0 - 80
    Weight & dimensions
    Width
    • 437.2
    Depth
    • 163.7
    Height
    • 44
    Weight
    • 3260
    Packaging data
    Package width
    • 131
    Package depth
    • 540
    Package height
    • 233
    Package weight
    • 3750
    Packaging content
    Cables included
    • AC
    Manual
    • Yes
    Rack mount kit
    • Yes
    Logistics data
    Master (outer) case net weight
    • 9780
    Harmonized System (HS) code
    • 85176200
    Master (outer) case width
    • 420
    Master (outer) case length
    • 565
    Master (outer) case height
    • 258
    Master (outer) case gross weight
    • 11900
    Products per master (outer) case
    • 3
