LinkIT SFP 1,25Gbps EX 40km Huawei
LI-3112-40D-HU
Beskrivelsesammendrag

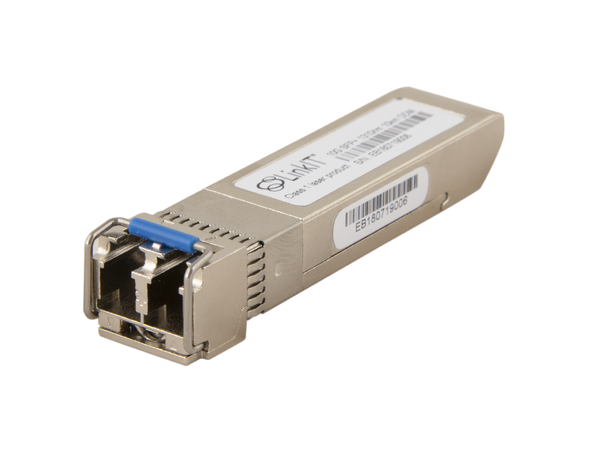

This SFP module by LinkIT supports 1.25Gbps data rate, features a 1310nm DFB laser transmitter, and offers a 40km range on single-mode fiber. It is designed for Huawei compatibility with low power consumption and robust EMI protection.
Nøkkelfunksjoner
- Up to 1.25Gbps Data Rate
- 1310nm DFB Laser Transmitter
- 40km on 9/125um SMF
- Hot-Pluggable SFP Footprint
- Low Power Consumption < 1.0W
- Metal Enclosure for lower EMI
- Single +3.3V Power Supply
- Supports DDM Interface
- Compliant with SFF-8472
- Case Temperature 0ºC to 70ºC
Viktige bruksområder
- Gigabit Ethernet
- Gigabit Fiber Channel
- Other Optical Links
Beskrivelse
The LinkIT SFP 1,25Gbps EX 40km Huawei LC, DDM, Single-mode, 1310nm module provides plug-and-play compatibility for Huawei systems. Featuring a hot-pluggable SFP footprint and support for digital diagnostic monitoring, it is compliant with industry standards such as SFF-8472. The design includes a metal enclosure reducing EMI and a low power consumption of less than 1.0W. Suitable for Gigabit Ethernet and Fiber Channel applications, this module operates within a commercial temperature range of 0ºC to 70ºC.
Produktspesifikasjoner
| Specification | Details |
|---|---|
| General Specifications | |
| Coding |
|
| Transmission Characteristics | |
| Data Rate |
|
| Optical Wavelength |
|
| Distance |
|
| Interface | |
| Optical Connector |
|
| Mode |
|
| Compliance | |
| Standards |
|
| Environmental | |
| Temperature Range |
|
| Power | |
| Consumption |
|
