Beskrivelsesammendrag
Features 53.125 Gbps per channel, integrated 850nm VCSEL array, and PAM4 modulation. Supports DDM function and hot-pluggable QSFP-DD form factor.
Nøkkelfunksjoner
- Up to 53.125Gbps per channel
- Supports 400GAUI-8 interface
- Integrated 850nm VCSEL
- MPO16 optical interface
- Includes DDM function
- Hot-pluggable QSFP-DD
- Max power consumption 8W
- Single +3.3V power supply
Viktige bruksområder
- Data Center
- 400GE Interconnect Requirements
Beskrivelse

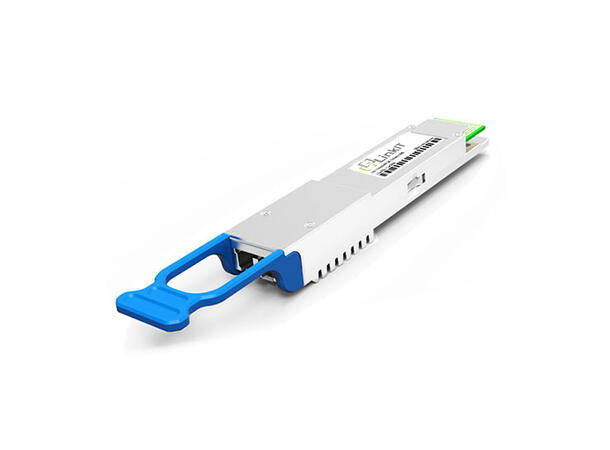

The LinkIT QSFP112 400Gbps SR8 offers a data rate of up to 53.125 Gbps per channel using PAM4 modulation. It integrates an 850nm VCSEL array and supports the 400GAUI-8 electrical interface. The optical interface has a single MPO16 connector receptacle. It includes Digital Diagnostics Monitoring (DDM) and is hot-pluggable in a QSFP-DD form factor, operating at 8W power consumption with a +3.3V power supply.
Produktspesifikasjoner
| Specification | Details |
|---|---|
| Technical Specifications | |
| Data Rate |
|
| Modulation |
|
| Interface |
|
| VCSEL Array |
|
| PD Array |
|
| DDM Function |
|
| Power Consumption |
|
| Power Supply |
|
| Reach | OM3 MMF:
OM4 MMF:
|
| Standards Compliance |
|
| General Information | |
| Coding |
|
