Beskrivelsesammendrag

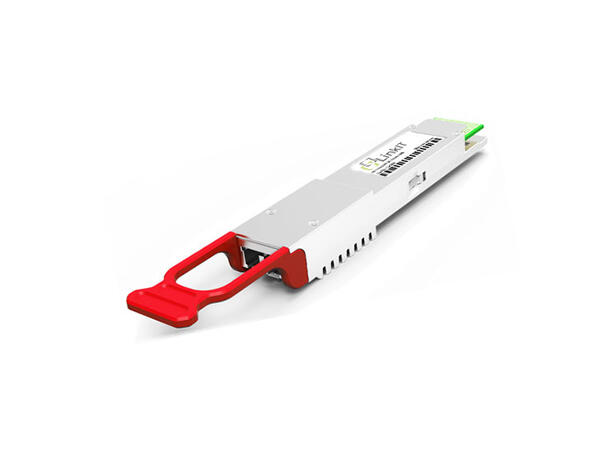

This LinkIT QSFP56 module supports 200Gbps SR4 with a reach of up to 100 meters on OM4 MMF. It is designed for reliable high-speed data transfer, using 850nm VCSEL and MPO/MTP-12 connectors.
Nøkkelfunksjoner
- MPO-12 connector
- MultiMode Fiber
- 850 nm wavelength
- Supports Base-8 cabling
- OM3 up to 70 meters
- OM4 up to 100 meters
- 4 x TX and RX channels
- Breakout to 4x50G through splitter
- Hot-pluggable
- Digital Diagnostics Monitoring
Viktige bruksområder
- 200 Gigabit Ethernet
- 200 Gigabit Infiniband
Beskrivelse
LinkIT QSFP56 200Gbps SR4 Cisco module provides a 4×53.125Gb/s electrical interface, complying with 200G-SR4 optical specifications. Suitable for 200 Gigabit Ethernet and Infiniband, it supports up to 100 meters range on OM4 MMF, operates with a +3.3V power supply, and has a max power consumption of 4 watts. The module is RoHS compliant and has a temperature range from 0 to +70°C.
Produktspesifikasjoner
| Specification | Details |
|---|---|
| Main Specifications | |
| Brand |
|
| Connector Type 1 |
|
| Wave Length |
|
| Distance |
|
| Extended Specifications | |
| Transmission Speed |
|
| Fibre Type |
|
| Standards |
|
| Temperature |
|
| Coding |
|
| Certifications |
|
