Beskrivelsesammendrag

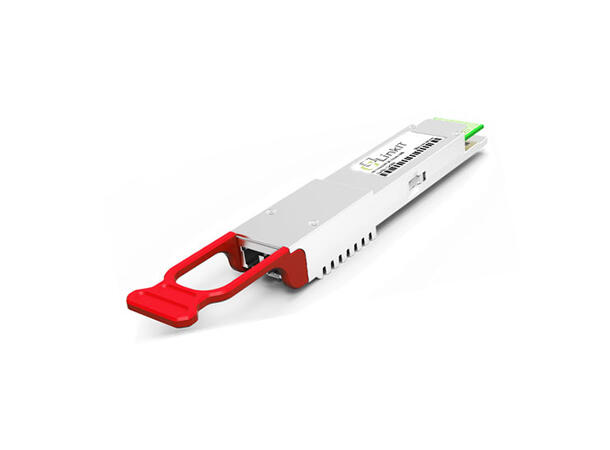

This Intel-coded LinkIT QSFP56 module supports 200Gbps SR4 and provides up to 100m reach on OM4 fiber. Ideal for high-performance networks, it features MPO-MTP-12 connector and operates with VCSEL technology.
Nøkkelfunksjoner
- MPO-12 connector
- MultiModeFiber
- 850 nm wavelength
- Supports Base-8 cabling
- OM3 up to 70 meters
- OM4 up to 100 meters
- 4 x TX and RX channels
- Breakout to 4x 50Gbps
- Hot-pluggable design
- DDM support
Viktige bruksområder
- 200 Gigabit Ethernet
- 200 Gigabit Infiniband
Beskrivelse
The LinkIT QSFP56 200Gbps SR4 module complies with 200G-SR4 standards with a 4x53.125Gb/s electrical interface. It offers a 100m reach on OM4 MMF and a maximum power consumption of 4 watts. The module is hot-pluggable, RoHS compliant, and operates within 0 to +70°C.
Produktspesifikasjoner
| Specification | Details |
|---|---|
| Main Specifications | |
| Brand |
|
| Connector Type |
|
| Wavelength (nm) |
|
| Distance |
|
| Extended Specifications | |
| Transmission Speed |
|
| Fibre Type |
|
| Standards |
|
| Temperature |
|
| Coding |
|
| Certifications |
|
