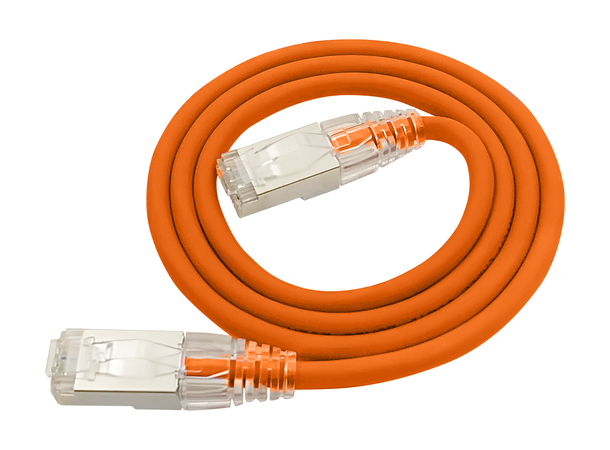

LinkIT SlimPatch F/UTP Cat6a Orange 0.5m

LI-SC6AFUTP-0005-OR
https://safeconsulting.no/web/image/product.template/15053/image_1920?unique=79cad72

kr 37,97 37.97 NOK kr 37,97 Ekskl. mva

kr 37,97 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Beskrivelsesammendrag

    The LinkIT SlimPatch cable meets Cat6a standards for demanding setups. It features 50μin gold-plated contacts for optimal signal transmission and corrosion protection. Ideal for power-hungry devices such as cameras and access points.

    Nøkkelfunksjoner

    • 50μin Gold Plated Contacts
    • Very Flexible
    • Low Cable Diameter
    • Tanglefree Lock
    • High-Quality Clear Plug
    • PoE++ Standard Support
    • Solid Copper Conductor
    • LSZH Jacket Material
    • 10Gbps Transmission Speed
    • Cat6a Performance

    Beskrivelse

    Slim network cable designed for demanding installations, supporting a transfer rate up to 10Gbps and Power over Ethernet++ (PoE++). With 50μin gold plated contacts and a high-quality clear plug, this cable ensures optimal signal transmission and durability. It features a snagless design with an anti-kink sleeve, making it highly flexible while maintaining a low cable diameter. Certified with CE and RoHS, it is suitable for high-performance network environments.

    Produktspesifikasjoner

    Specification Details
    General Specifications
    Length (m)
    • 0.5
    Cable Type
    • F/UTP
    Color
    • Orange
    Category
    • Cat.6a Slim
    Brand
    • LinkIT
    Conductor Material
    • Copper
    Connector Type 1
    • RJ-45 male (8P8C)
    Connector Type 2
    • RJ-45 male (8P8C)
    Cable Shielding
    • F/UTP – foiled shielding/unshielded twisted pairs
    Conductor Design
    • Solid
    Extended Specifications
    Anti-kink Sleeve
    • 6.2mm
    Directional
    • No
    Cable Fire Class
    • Eca
    AWG Wire Size
    • 28
    Transmission Speed
    • 10Gbps
    Frequency (MHz)
    • 500
    Cable Structure
    • 4 x 2 AWG 28/1 (Solid)
    Locking Type
    • Snagless
    NVP Value
    • 69%
    Jacket Material
    • LSZH
    Pin Assignment
    • 1-2;3-6;4-5;7-8
    Halogenfree
    • Yes
    Oil Resistant
    • No
    Fire Retardant Version
    • Yes
    Connector Contact Plating
    • 50μin gold plated
    Certifications
    • CE, RoHS
    Cable Diameter (mm)
    • 4.7
    Temperature
    • -20ºC to + 75ºC
