    Summary Description

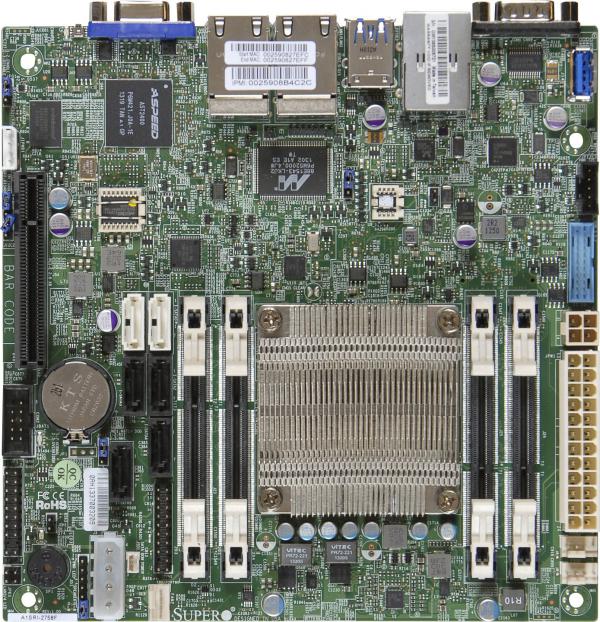

    The Supermicro MBD-A1SRI-2758F-B is a compact yet powerful mini-ITX motherboard designed for low power consumption and high performance. Featuring the Intel® Atom processor C2758, this board is ideal for embedded applications and storage solutions.

    Key Features

    • Intel® Atom processor C2758, SoC, FCBGA 1283, 20W 8-Core
    • Up to 64GB DDR3 1600MHz ECC SO-DIMM in 4 DIMM sockets
    • Quad GbE LAN ports
    • IPMI with dedicated LAN
    • 2x SATA3 and 4x SATA2 ports
    • 1x PCI-E 2.0 x8 slot
    • 4x USB 3.0 (2 rear, 1 via header, 1 Type A), 2x USB 2.0 ports (rear)
    • 12V DC or ATX Power input
    • Operating Temperature: 0°C - 60°C
    • 7-Year product life

    Key Applications

    • Embedded systems
    • Network appliances
    • Storage solutions
    • Industrial control systems
    • IoT devices

    Description

    The Supermicro MBD-A1SRI-2758F-B motherboard incorporates the Intel® Atom processor C2758, an 8-core System-on-Chip (SoC) with a TDP of just 20W. It supports up to 64GB of ECC DDR3 memory across 4 DIMM sockets, ensuring robust performance and reliability. The motherboard includes quad GbE LAN ports, an IPMI with dedicated LAN, and a variety of I/O options such as SATA, USB, and VGA. Designed for versatility, it is suitable for 1U, mid-tower, and mini-ITX chassis configurations.

    Product Specifications

    Specification Details
    Product SKUs
    MBD-A1SRi-2758F -O
    • A1SRi-2758F (Retail Pack)
    MBD-A1SRi-2758F -B
    • A1SRi-2758F (Bulk Pack)
    Physical Stats
    Form Factor
    • Mini-ITX
    Dimensions
    • 6.75" x 6.75" (17.145cm x 17.145cm)
    Processor/Cache
    CPU
    • Intel® Atom™ Processor C2758
    • CPU TDP 20W (8-Core)
    • FCBGA 1283
    • System-on-Chip
    System Memory
    Memory Capacity
    • 4x 204-pin DDR3 SO-DIMM socket
    • Supports up to 64GB DDR3 ECC Un-Buffered memory
    Memory Type
    • 1600/1333MHz ECC DDR3 SDRAM, 204-pin gold-plated DIMMs
    DIMM Sizes
    • 16GB, 8GB, 4GB, 2GB
    Memory Voltage
    • 1.5 V, 1.35 V
    On-Board Devices
    SATA
    • SoC SATA3 (6Gbps), SATA2 (3Gbps)
    Network Controllers
    • C2000 SoC I354 Quad GbE Controller (MACs)
    • Virtual Machine Device Queues reduce I/O overhead
    • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    • Aspeed AST 2400 BMC
    USB 3.0
    • Renesas uPD720201
    Video
    • BMC integrated Aspeed AST2400
    Input / Output
    Serial ATA
    • 2x SATA3 (6Gbps) ports
    • 4x SATA2 (3Gbps) ports
    LAN
    • 4x RJ45 Gigabit Ethernet LAN ports
    • 1x RJ45 Dedicated IPMI LAN port
    USB
    • 4x USB 3.0 ports (2 rear, 1 Type A, 1 via header)
    • 2x USB 2.0 ports (2 rear)
    Serial Port
    • 2x Fast UART 16550 Serial Port (1 rear, 1 via header)
    DOM
    • 1x SATA DOM (Disk on Module) power connector
    VGA
    • 1x VGA Port
    Others
    • TPM header
    Chassis (Optimized for A1SRi-2758F )
    1U Chassis:
    • SC504-203B
    • SC505-203B
    Mid/Mini Tower Chassis:
    • SC721TQ-250B
    Mini-ITX Chassis:
    • SC101i
    • SC101S
    SuperServer(s) with A1SRi-2758F
    Model(s)
    • SYS-5018A-FTN4
    • SYS-5028A-TN4
    Expansion Slots
    PCI-Express
    • 1x PCI-E 2.0 x8 slot
    System BIOS
    BIOS Type
    • 64Mb SPI Flash EEPROM with AMI UEFI BIOS
    BIOS Features
    • Plug and Play (PnP)
    • DMI 2.3
    • ACPI 5.0
    • USB Keyboard support
    • SMBIOS 2.7.1
    • UEFI
    Management
    Software
    • SuperDoctor® 5
    • Watch Dog
    • NMI
    Power Configurations
    • ACPI / ACPM Power Management
    • Main Switch Override Mechanism
    • Power-on mode for AC power recovery
    PC Health Monitoring
    Voltage
    • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +5V Standby, VBAT, Memory Voltages.
    FAN
    • Total of 3x 4-pin fan headers
    • 3x fans with tachometer status monitoring
    • Status monitor for speed control
    • Status monitor for on/off control
    • Low noise fan speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    LED
    • System Overheat LED
    Other Features
    • Chassis intrusion detection
    • Chassis intrusion header
    • 4-pin 12V DC power input or 24-pin ATX Power input

    Standard Part List

    Part Number Quantity Description
    Motherboard
    MBD-A1SRi-2758F -B1A1SRi-2758F Motherboard with passive heat sink
    I/O Shield
    MCP-260-00042-0N1X9 standard I/O Shield
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
