  2. MB -A1SRM-LN7F-2358-BULK

MB -A1SRM-LN7F-2358-BULK

MBD-A1SRM-LN7F-2358-B
https://safeconsulting.no/web/image/product.template/10214/image_1920?unique=ba3907f

kr 3 659,76 3659.76 NOK kr 3 659,76

kr 3 659,76

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

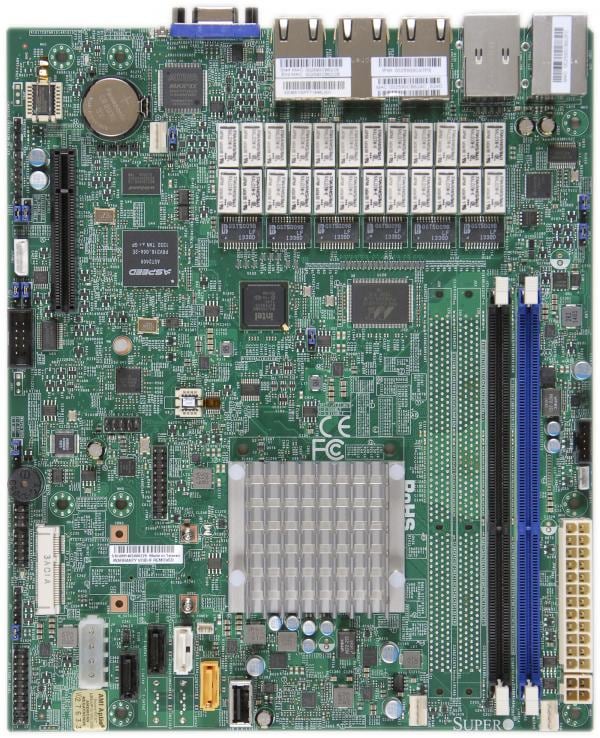

    The Supermicro MBD-A1SRM-LN7F-2358-B is equipped with the Intel® Atom processor C2358, featuring 7 GbE LAN ports and support for up to 16GB of DDR3 memory. This motherboard is designed for high-performance embedded applications.

    Key Features

    • Intel® Atom processor C2358, SoC, (Rangeley), 7W 2-Core, 1.7-2.0GHz
    • Up to 16GB DDR3 1333MHz ECC or non-ECC UDIMM
    • 7x GbE LAN including 6 ports LAN bypass (SW programmable) ports with SoC I354, I350-AM2 and I210-AT
    • IPMI 2.0 with shared LAN
    • 2x SATA3 ports, 2x SATA2 ports
    • 1x PCI-E 2.0 x4 (in x8) slot
    • 7x USB 2.0 ports
    • 12V DC or ATX Power options
    • Operating Temperature: 0°C - 60°C
    • 7-Year product life

    Key Applications

    • Networking appliances
    • Embedded systems
    • Industrial automation

    Description

    The Supermicro MBD-A1SRM-LN7F-2358-B motherboard features the Intel® Atom processor C2358, providing a compact, high-performance computing solution with a 7W TDP, suitable for embedded applications. It supports up to 16GB of DDR3 memory and includes 7 GbE LAN ports with IPMI 2.0 support, multiple SATA ports, USB 2.0 ports, a PCI-E slot, and various advanced management and monitoring features. Designed to operate efficiently in a temperature range of 0°C to 60°C, this motherboard ensures durability and reliability for long-term operation.

    Product Specifications

    Specification Details
    Product SKUs
    MBD-A1SRM-LN7F-2358 -O
    • A1SRM-LN7F-2358 (Retail Pack)
    MBD-A1SRM-LN7F-2358 -B
    • A1SRM-LN7F-2358 (Bulk Pack)
    Physical Stats
    Form Factor
    • mATX
    Dimensions
    • 8.0" x 9.6" (20.32cm x 24.38cm)
    Processor/Cache
    CPU
    • Intel® Atom™ Processor C2358 (formerly Rangeley)
    • CPU TDP 7W (2-Core), 1.7-2.0GHz
    • FCBGA 1283
    • System-on-Chip
    System Memory
    Memory Capacity
    • 2x 240-pin DDR3 UDIMM slot
    • Supports up to 16GB DDR3 ECC or non-ECC memory
    Memory Type
    • 1333MHz ECC or non-ECC DDR3 SDRAM, 240-pin gold-plated DIMMs, x8 width only
    DIMM Sizes
    • 8GB, 4GB, 2GB
    Memory Voltage
    • 1.5 V, 1.35 V
    On-Board Devices
    SATA
    • SoC SATA3 (6Gbps), SATA2 (3Gbps)
    Network Controllers
    • Quad GbE LAN w/ Intel C2000 SoC i354 - 2 pairs LAN bypass
    • Single GbE LAN w/ Intel i210-AT
    • Dual GbE LAN w/ Intel Ethernet controller i350-AM2 - 1 pair LAN bypass
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    • Aspeed AST 2400 BMC
    USB 2.0
    • C2000 SoC
    Video
    • BMC integrated Aspeed AST2400
    Input / Output
    Serial ATA
    • 2x SATA3 (6Gbps) ports
    • 2x SATA2 (3Gbps) ports
    LAN
    • 7x RJ45 Gigabit Ethernet LAN ports with shared LAN IPMI 2.0
    USB
    • 7x USB 2.0 ports (4 rear, 1 Type A, 2 via header)
    Serial Port
    • 2x Fast UART 16550 Serial Port (1 rear with RJ45, 1 via header)
    DOM
    • 1x SATA DOM (Disk on Module) power connector
    • 1x SuperDOM Supermicro SATA DOM with built-in power connector
    VGA
    • 1x VGA Port
    Others
    • TPM header
    Chassis (Optimized for A1SRM-LN7F-2358 )
    1U Chassis:
    • SC510-203B
    • SC510T-203B
    • SC512L-260-LCD-Archived
    • SC512L-200B
    • SC813MTQ-350CB
    Important Chassis Notes
    • To support the new generation Intel®Xeon®processor-based motherboards,Revision Nchassis is recommended. Please talk to your sales representative for details.
    Expansion Slots
    PCI-Express
    • 1x PCI-E 2.0 x4 (in x8) slot
    System BIOS
    BIOS Type
    • 128Mb SPI Flash EEPROM with AMI UEFI BIOS
    BIOS Features
    • Plug and Play (PnP)
    • DMI 2.3
    • ACPI 5.0
    • USB Keyboard support
    • SMBIOS 2.7.1
    • UEFI
    Management
    Software
    • IPMI (Intelligent Platform Management Interface) v2.0
    • SuperDoctor® 5
    • Watch Dog
    • NMI
    • SUM
    Power Configurations
    • ACPI / ACPM Power Management
    • Main Switch Override Mechanism
    • Power-on mode for AC power recovery
    PC Health Monitoring
    Voltage
    • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +5V Standby, VBAT, Memory Voltages.
    FAN
    • Total of 3x 4-pin fan headers
    • 3x fans with tachometer status monitoring
    • Status monitor for speed control
    • Status monitor for on/off control
    • Low noise fan speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    LED
    • System Overheat LED
    Other Features
    • Chassis intrusion detection
    • Chassis intrusion header
    • Intel® QuickAssist Technology
    • Intel® Turbo Boost Technology
    • 3x pairs software programmable GbE LAN Bypass ports
    • 12V DC or ATX power option

    Standard Part List

    Part Number Quantity Description
    Motherboard
    MBD-A1SRM-LN7F-2358 -B1A1SRM-LN7F-2358 Motherboard with passive heat sink
    Quick Reference Guide
    QRG-16171Quick Reference Guide for A1SRM-LN7F/LN5F
    I/O Shield
    MCP-260-00084-0N1A1SRM-LN7F/LN5F standard I/O Shield
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF

    Optional Part List

    Part Number Quantity Description
    mSATA
    SSD-MS064-PHI1Supermicro mSATA, half card, 64GB SSD
    SATA DOM
    SSD-DM016-PHI1SuperDOM, Supermicro SATA DOM, 16GB
    I/O Shield
    MCP-260-00079-0N11U I/O shield for A1SRM-LN7F/LN5F in SC813/SC512 chassis
    MCP-260-00085-0B11U I/O shield for A1SRM-LN7F/LN5F in SC510 chassis
