A2SAN-E,Embed 3.5"SBC, Apollo Lake Atom SoC,4 Core-SINGL

• Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
• Intel® Atom processor E3940 (9.5W, 4C)
• Dual LAN with Intel® Ethernet Controller I210-IT
• 1 M.2 B-Key 2280, 1 Full size Mini-PCIe, 1 SATA 3.0
• Intel® Goldmont microarchitecture 14nm System-on-Chip
• 2 USB 3.0 ports, 4 USB 2.0 ports, 4 COM ports, 1 SATA 3.0, 8-bit GPIO, SMBus
• Supports 12V DC power input
• 1 HDMI, 1 VGA, 1 48-bit LVDS, Intel® HD Graphic 3 independent displays
• Supports on board TPM 2.0
• Wide temperature suppot from -30°C to 75°C

• Industrial automation
• Embedded systems
• IoT gateway
• Network security appliances
• Digital signage

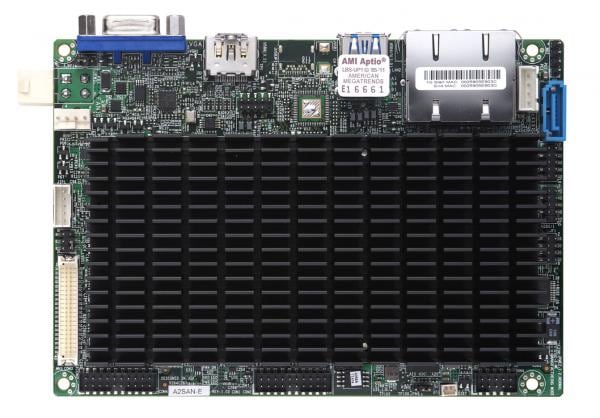

The Supermicro MBD-A2SAN-E-O is powered by the Intel® Atom® Processor E3940 and supports up to 8GB of DDR3L memory in a single socket. This 3.5-inch SBC is equipped with dual LAN ports, multiple USB and COM ports, and a versatile array of video outputs including HDMI, VGA, and LVDS. With industrial-grade components, it supports a wide operating temperature range from -30°C to 75°C. The MBD-A2SAN-E-O features expansion slots for both M.2 and Mini-PCIe, making it an ideal solution for embedded applications that require reliability and performance in a compact form factor.
