    Summary Description

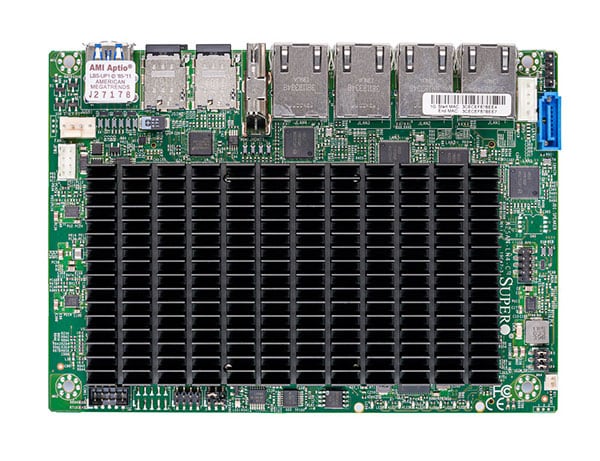

    The Supermicro MBD-A2SAN-LN4-C-B is a comprehensive SBC featuring Intel® Celeron® Processor J3455, up to 8GB 1866MHz DDR3L, Quad LAN, and various I/O capabilities tailored to meet diverse system requirements.

    Key Features

    • Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
    • Intel® Celeron® Processor J3455 (10W, 4C)
    • Quad LAN with Intel® Ethernet Controller I211-AT
    • Intel® Goldmont microarchitecture 14nm System-on-Chip
    • Supports 12V DC power input
    • 3 M.2 B-Key 2242/3042 with nano SIM slot, 1 M.2 E-Key 2230
    • 2 USB 3.0 ports, 2 USB 2.0 ports, 1 SATA 3.0, SMBus

    Key Applications

    • Embedded systems
    • Industrial automation
    • Network appliances
    • Digital signage

    Description

    The Supermicro MBD-A2SAN-LN4-C-B is an advanced 3.5" SBC designed to deliver exceptional performance with an Intel® Celeron® Processor J3455. This Single Board Computer supports up to 8GB of 1866MHz DDR3L Non-ECC SO-DIMM in a single socket, offering optimal memory performance. The system incorporates Quad LAN with Intel® Ethernet Controller I211-AT and features Intel® Goldmont microarchitecture 14nm System-on-Chip. Suitable for low power systems, it supports a 12V DC power input, and includes comprehensive expansion and connectivity options such as 3 M.2 B-Key 2242/3042 slots with a nano SIM slot, 1 M.2 E-Key 2230, 2 USB 3.0 ports, 2 USB 2.0 ports, 1 SATA 3.0, and an SMBus header.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A2SAN-LN4-C
    Physical Stats
    Form Factor
    • 3.5" SBC
    Dimension
    • 5.87" x 4.17" (14.9cm x 10.6cm)
    Processor
    CPU
    • Intel® Celeron® Processor J3455
    • Single Socket FCBGA-1296 supported, CPU TDP supports Up to 10W TDP
    Core
    • Up to 4 cores, 4 threads / 2MB Cache
    Note
    System Memory
    Memory Capacity
    • 1 DIMM slots
    • Up to 8GB Unbuffered non-ECC SODIMM, DDR3-1866MT/s
    Memory Type
    • 1866 MT/s non-ECC DDR3 SODIMM Unbuffered DDR3L up to 8GB
    DIMM Sizes
    • 2GB, 4GB, 8GB
    Memory Voltage
    • 1.35V
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 1 SATA3 (6 Gbps) ports
    Graphics
    • 1 Intel® HD Graphics port(s)
    Network Controllers
    • Quad LAN with Intel® Ethernet Controller I211-AT
    Input / Output
    SATA
    • 1 SATA3 (6Gbps) port(s)
    LAN
    • 4 RJ45 Gigabit Ethernet LAN ports
    USB
    • 2 USB 2.0 port(s) (2 via header)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 HDMI port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    Others
    • 1 SMBus header
    • 1 System Fan
    • 1 onboard M2 active LED
    • 1 onboard GbE LAN active LED
    Expansion Slots
    PCIe
    • No/A
    M.2
    • Key: B-Key, E-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.0
    • SMBIOS 3.0
    • UEFI 2.5
    • PCI FW 3.0
    Management
    Software
    • SuperDoctor® 5, Watchdog
    System Management Software
    • SuperDoctor 5
    Power Configurations
    • ACPI Power Management, +12V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, System level control, 3.3V standby, +5V, +3.3V, +12V, +1.35V, VCGI
    LED
    • Standby alert LED
    Temperature
    • CPU thermal trip support
    FAN
    • 1x 4-pin fan header (up to 1 fan)
    • Thermal control tachometer fan connectors
    • System level control
    • PWM fan speed control
    • Low noise fan speed control
    • Fan speed control
    Other Features
    • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 8-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    A2SAN-LN4-C Heatsink
    SNK-C0103L-11A2SAN-LN4-C Heatsink Height 19mm
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    SATA cable
    CBL-SAST-08811SATA Data cable 25CM
    SATA Power Cable
    CBL-PWEX-09821SATA Power Cable 25cm
    Retail Package
    A2SAN-LN4-C Heatsink
    SNK-C0103L-11A2SAN-LN4-C Heatsink Height 19mm
    COM Port Cable
    CBL-OTHR-1061-151COM Cable 15cm
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    QRG
    MNL-2285-QRG1Motherboard Quick Reference Guide
    SATA cable
    CBL-SAST-08811SATA Data cable 25CM
    SATA Power Cable
    CBL-PWEX-09821SATA Power Cable 25cm
    USB Cable
    CBL-CUSB-09831USB2.0 cable 20cm

    Optional Part List

    Part Number Quantity Description
    DC IN Power Cable (DC Jack)
    CBL-PWEX-1110-151DC IN Power cable 2x4P to 5.5x2.5 DC JACK with 17cm
    Power Adapter
    MCP-250-10134-0N160W 12V 5A, AC to DC lockable power adapter,HF
    MCP-250-10135-0N1FSP 40W 12V 3.33A, AC to DC lockable power adapter,HF,RoHS
