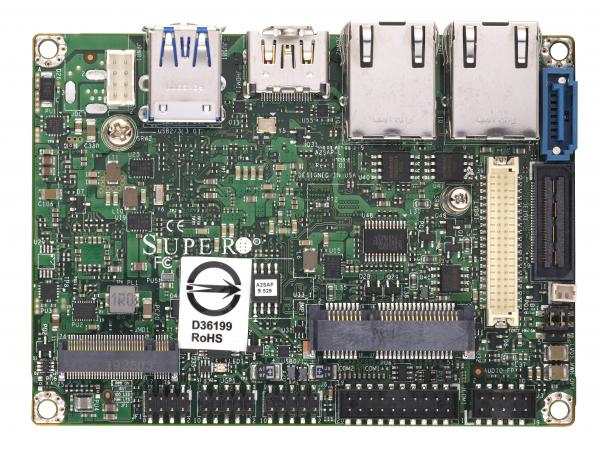

Apollo Lake E3930, DDR3L 1867MHz SODIMM,up to 8GB,1 HDMI

MBD-A2SAP-L-B
https://safeconsulting.no/web/image/product.template/10196/image_1920?unique=dfd9ff3

kr 2 007,79 2007.79 NOK kr 2 007,79

kr 2 007,79

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro MBD-A2SAP-L-B Pico-ITX motherboard offers advanced performance with the Intel® Atom processor E3930. Ideal for compact systems requiring high efficiency and extensive connectivity, including dual Gigabit Ethernet and multiple USB ports.

    Key Features

    • Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
    • Intel® Atom processor E3930 (6.5W, 2C)
    • 1 M.2 B-Key 2242/3042, 1 Half size Mini-PCIe, 1 SATA 3.0
    • Intel® Goldmont microarchitecture 14nm System-on-Chip
    • 1 HDMI, 1 48-bit LVDS, Intel® HD Graphic 2 independent displays
    • Dual Gigabit Ethernet LAN ports via Intel® i210AT
    • Supports 12V DC power input
    • 2 USB 3.0 ports (rear), 2 USB 2.0 ports (via headers), 2 COM ports (via headers)

    Key Applications

    • Embedded systems
    • Industrial control
    • Automation
    • Digital signage
    • Networking appliances

    Description

    The Supermicro MBD-A2SAP-L-B is designed with compact and efficient systems in mind. Powered by the Intel® Atom processor E3930, this Pico-ITX motherboard includes support for up to 8GB DDR3L memory, dual Gigabit Ethernet ports, multiple USB and COM ports, HDMI and LVDS video outputs, and various expansion slots. Its robust design supports varied temperature ranges, making it an ideal choice for diverse industrial environments. The board also features comprehensive power management and monitoring capabilities.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A2SAP-L
    Physical Stats
    Form Factor
    • Pico-ITX
    Dimension
    • 3.9" x 2.8" (9.91cm x 7.11cm)
    Processor
    CPU
    • Intel® Atom® Processor E3930
    • Single Socket FCBGA-1296 supported, CPU TDP supports Up to 6.5W TDP
    Core
    • Up to 2 cores, 2 threads / 2MB Cache
    System Memory
    Memory Capacity
    • 1 DIMM slots
    • Up to 8GB Unbuffered non-ECC SODIMM, DDR3-1866MT/s
    Memory Type
    • 1866 MT/s non-ECC DDR3 SODIMM Unbuffered DDR3L up to 8GB
    DIMM Sizes
    • 2GB, 4GB, 8GB
    Memory Voltage
    • 1.35V
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 1 SATA3 (6 Gbps) ports
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 Intel® HD Graphics port(s)
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I210IT
    Input / Output
    SATA
    • 1 SATA3 (6Gbps) port(s)
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 2 USB 2.0 port(s) (2 via header)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 HDMI port(s), 1 LVDS port(s)
    Serial Port
    • 2 COM Port(s) (2 header)
    Others
    • 1 8-bit GPIO header
    • 1 EI/O ( DP/HDMI
    • 1 PCI-E 1
    • 1 USB0
    • 1 LPC
    • 1 SMBus
    • 1 2Vsb 2A
    • 1 HD Audio header (Mic-in/Headphone-out) (Note: Audio only support 0C~60C)
    • 1 SMbus/5V SATA Power bo header
    • 1 24-Pin 2V DC-IN power input bo header(20mm pitch)
    • 1 Vsb 28A) (Note:A2SAP-E/-L does NOT support SATA signal)
    Expansion Slots
    PCIe
    • 1 Half size Mini-PCIe (USB2.0 x 1,PCIe Gen2 x 1)
    • 1 EI/O (1 DP/HDMI, 2 PCIe x1, 2 USB2.0, LPC, SMBus, 12Vsb 2A, 5Vsb 2.8A) (Note:A2SAP-E/-L does NOT support SATA signal)
    M.2
    • M.2 Interface: USB 2.0; SATA; PCIe 2.0 x1
    • Form Factor: 3042, 2242
    • Key: B-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.0
    • SMBIOS 3.0
    • UEFI 2.6
    • PCI FW 3.2
    Management
    Software
    • SuperDoctor® 5, Watchdog
    System Management Software
    • SuperDoctor 5
    Power Configurations
    • ACPI Power Management, +12V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, System level control, 3.3V standby, +3.3V, +12V, +1.35V, Memory Voltages, VCGI
    LED
    • Standby alert LED
    Temperature
    • CPU thermal trip support
    Other Features
    • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management
    Operating Environment
    Operating Temperature Range
    • -30°C - 60°C (-22°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    Passive heatsink
    SNK-C0116L1A2SAP Passive heatsink with 15mm height
    SATA cable
    CBL-SAST-05381SATA Data cable 29CM
    SATA Power Cable
    CBL-PWEX-10301SATA Power Cable 20cm
    Retail Package
    Audio Cable
    CBL-OTHR-09861Audio Cable 20cm
    COM Cable
    CBL-CUSB-09841COM Cable 20cm
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    Passive heatsink
    SNK-C0116L1A2SAP Passive heatsink with 15mm height
    QRG
    MNL-1994-QRG1Motherboard Quick Reference Guide
    SATA cable
    CBL-SAST-05381SATA Data cable 29CM
    SATA Power Cable
    CBL-PWEX-10301SATA Power Cable 20cm
    USB Cable
    CBL-CUSB-09831USB2.0 cable 20cm

    Optional Part List

    Part Number Quantity Description
    DC IN Power Cable (DC Jack)
    CBL-PWEX-1110-151DC IN Power cable 2x4P to 5.5x2.5 DC JACK with 17cm
    Power Adapter
    MCP-250-10134-0N160W 12V 5A, AC to DC lockable power adapter,HF
    MCP-250-10135-0N140W 12V 3.33A, AC to DC lockable power adapter,HF
