    Summary Description

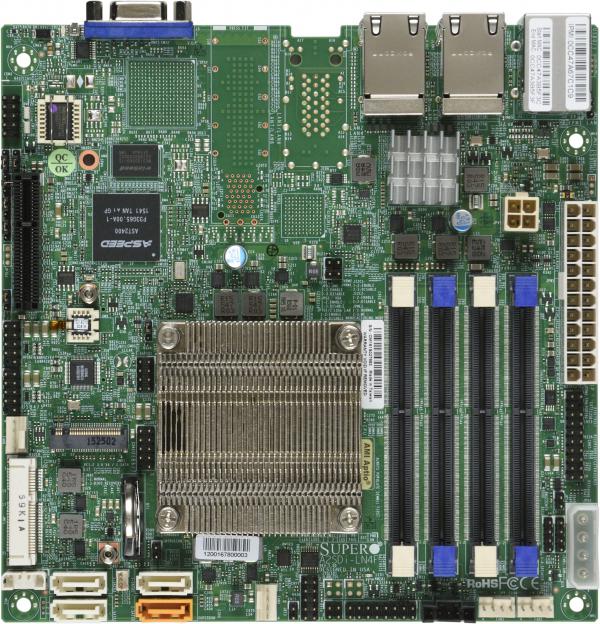

    The Supermicro MBD-A2SDI-LN4F-B is a high-performance Mini-ITX motherboard featuring the Intel Atom C3850 processor. It supports up to 64GB DDR4 RAM and provides comprehensive connectivity options including Quad LAN and multiple USB ports. Ideal for networking and industrial applications.

    Key Features

    • Intel® Atom® Processor C3850., Single Socket FCBGA1310 supported, CPU TDP support 25W
    • Up to 64GB Unbuffered ECC/non-ECC SO-DIMM, DDR4-2400MHz, in 4 DIMM slots
    • 1 PCIe 3.0 x41 miniPCIe with mSATA supports (half card only)M.2 Interface:PCIe 3.0 x4 and SATAM.2 Form Factor:2242, 2280M.2 Key:M-Key
    • SoC controller for 4 SATA3 (6 Gbps) ports;
    • Quad LAN with Intel® Ethernet Controller I350-AM41GbE
    • Supports 12V DC power input
    • 1 VGA port
    • System on Chip

    Key Applications

    • Networking
    • Industrial automation
    • Edge computing
    • Data center

    Description

    The Supermicro MBD-A2SDI-LN4F-B motherboard features the Intel Atom C3850 processor, designed for compact systems requiring high efficiency and reliability. It supports up to 64GB of DDR4 memory across 4 DIMM slots, making it suitable for intensive applications. With a variety of connectivity options such as Quad LAN, USB 3.0, and M.2 interfaces, this motherboard ensures robust networking and expandability. Additional features include comprehensive monitoring and management tools, making it a versatile choice for data centers, edge computing, and other industrial settings.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A2SDi-LN4F
    Physical Stats
    Form Factor
    • Mini-ITX
    Dimension
    • 6.7" x 6.7" (17.02cm x 17.02cm)
    Processor
    CPU
    • Intel® Atom® Processor C3850
    • Single Socket FCBGA-1310 supported, CPU TDP supports Up to 25W TDP
    Core
    • Up to 12 cores, 12 threads / 12MB Cache
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 64GB Unbuffered ECC/non-ECC SODIMM, DDR4-2400MT/s
    Memory Type
    • 2400/2133/1866/1600 MT/s ECC/non-ECC DDR4 SODIMM Unbuffered
    DIMM Sizes
    • 4GB, 8GB, 16GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 4 SATA3 (6 Gbps) ports
    IPMI
    • ASPEED AST2400 BMC
    Graphics
    • 1 ASPEED AST2400 BMC port(s)
    Network Controllers
    • Quad LAN with Intel® Ethernet Controller I350-AM4, 1GbE
    Input / Output
    SATA
    • 4 SATA3 (6Gbps) port(s)
    LAN
    • 4 RJ45 Gigabit Ethernet LAN ports
    USB
    • 4 USB 2.0 port(s) (4 via header)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    DOM
    • 1 SuperDOM(Disk on Module) ports
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x4
    • 1 miniPCIe with mSATA supports (half card only)
    M.2
    • M.2 Interface: PCIe 3.0 x4; SATA
    • Form Factor: 2242, 2280
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • UEFI 2.4
    • SMBIOS 2.7.1
    Management
    Software
    • SuperDoctor® 5, NMI,SUM, KVM with dedicated LAN,IPMI2.0, Watchdog
    System Management Software
    • SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power Configurations
    • Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 4 fans with tachometer monitoring, 4 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V, +12V, +1.8V, VCGI
    LED
    • UID/Remote UID
    Temperature
    • CPU thermal trip support
    FAN
    • 4x 4-pin fan headers (up to 4 fans)
    • Thermal control tachometer fan connectors, System level control, Fan speed control, Dual Cooling Zone, 4 fans with tachometer monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Overheat LED indication, Support 3-pin fans (w/o speed control)
    Other Features
    • WOL, UID, System level control, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, 12V DC or ATX Power Source, SDDC, Innovation Engine, 4-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Shield
    MCP-260-00098-0N1Standard I/O Shield for
    SATA Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    Retail Package
    QRG
    CBL-0044L1Motherboard Quick Reference Guide
    SATA Cables
    MCP-260-00098-0N457.5CM SATA FLAT S-S PBF

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00100-0B-1U I/O Shield for A2SDi-LN4F in SC505/504 Chassis
    MCP-260-00099-0N-1U I/O Shield for A2SDi-LN4F in SC813/512 Chassis
