A3SEV-2C-LN4, Mini ITX, Elkhard Lake ATOM EmbeddedSoCBGA

• Intel® Atom® Processor x6211E.Socket FCBGA-1493 supported, CPU TDP supports Up to 6W TDP
• Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-3200MHz, in 2 DIMM slots
• 1 PCIe 3.0 X2 (in x8 slot)1 M.2 B-Key SATA/PCIe 3.0 x2/USB 3.0, 3042/22801 M.2 E-Key PCIe 3.0 x1/USB 2.0, 2230
• Single LAN with Intel® Ethernet Controller I210ITONLY i210 support PXE3 LAN with 1GbE with Marvell® 88E1512
• System on Chip
• 1 DP (DisplayPort) port, 1 HDMI port, 1 VGA port or 1 eDP (Embedded DisplayPort) port, Supports 3 independent displays

• Networking solutions
• Compact server systems
• Industrial control
• Embedded IoT applications

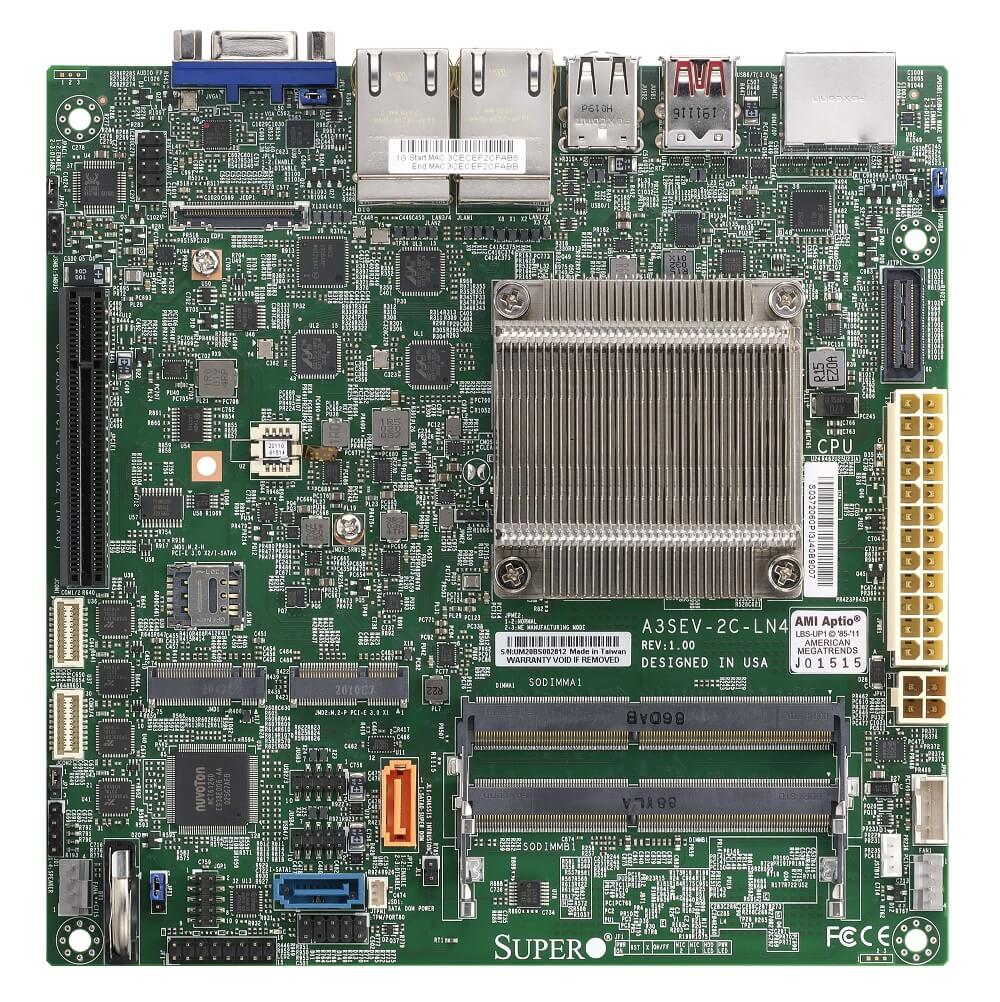

The Supermicro MBD-A3SEV-2C-LN4-O is an advanced Mini-ITX motherboard featuring the Intel® Atom® Processor x6211E. This compact yet powerful motherboard supports up to 32GB DDR4-3200MHz memory in two DIMM slots, making it suitable for various high-performance applications. Key features include 1 PCIe 3.0 x2 slot, multiple M.2 slots, comprehensive I/O options with USB 3.1 Gen2, USB 2.0, and several video outputs like DP, HDMI, VGA, and eDP. The motherboard also comes with robust PC health monitoring, multiple LAN ports with different controllers, and thorough management software including SuperDoctor® 5 and Watchdog. Its operating environment ranges from -30°C to 70°C, ensuring dependable performance in varied conditions.
