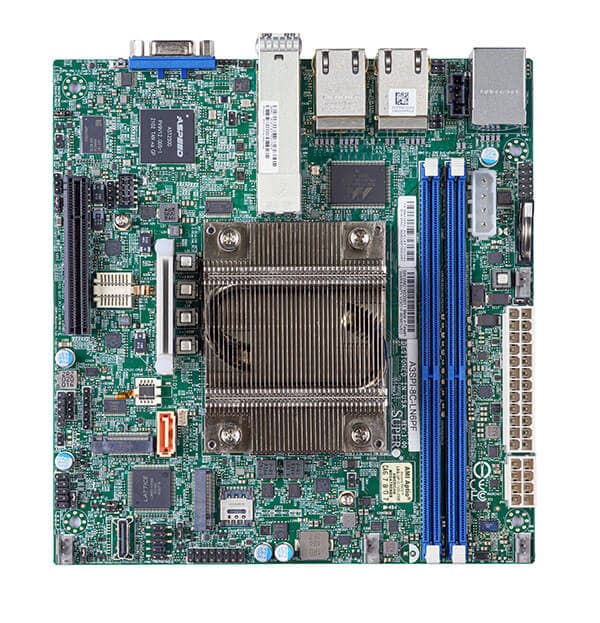

A3SPI-4C-LN6PF, Mini-ITX, Parker Ridge ATOM SoC, BGA, s

• System on Chip
• Intel Atom Processor C5315,Single Socket FCBGA-2106 supported,CPU TDP support 38W
• Intel Quick Assist Technology
• Up to 128GB ECC RDIMM DDR4-2400MHz, in 2 DIMM slots
• Expansion slots:1 PCIe 3.0 x2 (in x8 slot)
• 2 SFP+ ports and 4 GbE LAN ports
• Supports 12V DC power input
• Up to 5 SATA3 ports from SoC (1 via SATA port, 4 via Oculink)
• I/O: 1 VGA, 1 COM, TPM 2.0 onboard and header both
• 2 USB 3.0 (Type-A on rear)2 USB 2.0 (via headers)
• M.2 Interface:1x M.2 B-Key 3052 w/PCIe 3.0 & SATA3 & USB3.01x M.2 M-Key 2280 w/PCIe3.0

• Network security appliances
• Embedded systems
• IoT devices
• Data centers
• Storage networking
• Edge computing

The Supermicro MBD-A3SPI-4C-LN6PF-O motherboard is equipped with an Intel Atom Processor C5315, supporting up to 4 cores and 9MB cache. It accommodates up to 128GB ECC RDIMM DDR4-2400MHz memory in 2 DIMM slots. Key features include support for Intel Quick Assist Technology, a range of I/O ports including 2 USB 3.0 and 2 USB 2.0, up to 5 SATA3 ports, and 1 PCIe 3.0 x2 slot. Designed with a focus on high reliability, it includes various health monitoring tools and security features such as TPM 2.0 and cryptographically signed firmware. The motherboard is suitable for environments with 0°C - 60°C operating temperature range and up to 85% non-condensing humidity.
