    Summary Description

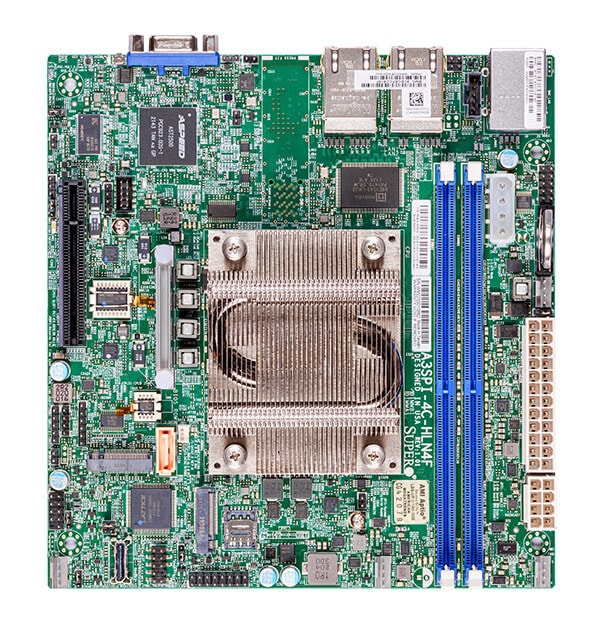

    The Supermicro MBD-A3SPI-8C-HLN4F-O Mini-ITX Motherboard supports the Intel Atom Processor C5325 with up to 8 cores and 128GB DDR4-2933 ECC RAM. Ideal for space-constrained environments, this motherboard offers robust connectivity and expansion options, including 4 GbE LAN ports and ultra-fast I/O capabilities.

    Key Features

    • Intel Atom Processor C5325,Single Socket FCBGA-2106 supported,CPU TDP support 41W
    • System on Chip
    • Intel Quick Assist Technology
    • Up to 128GB ECC RDIMM DDR4-2933MHz, in 2 DIMM slots
    • Expansion slots:1 PCIe 3.0 x2 (in x8 slot)
    • 4 GbE LAN ports
    • Supports 12V DC power input
    • Up to 5 SATA3 ports from SoC (1 via SATA port, 4 via Oculink)
    • I/O: 1 VGA, 1 COM, TPM 2.0 onboard and header both
    • 2 USB 3.0 (Type-A on rear)2 USB 2.0 (via headers)
    • M.2 Interface:1x M.2 B-Key 3052 w/PCIe 3.0 & SATA3 & USB3.01x M.2 M-Key 2280 w/PCIe3.0

    Key Applications

    • Compact server builds
    • Network appliances
    • IoT applications
    • Edge computing

    Description

    Designed for compact yet powerful computing needs, the Supermicro MBD-A3SPI-8C-HLN4F-O Mini-ITX Motherboard features the Intel Atom Processor C5325 with a TDP of up to 41W. It supports 128GB of ECC RDIMM DDR4 memory across 2 DIMM slots. The motherboard integrates essential features such as 4 GbE LAN ports, Intel Quick Assist Technology, and M.2 interfaces for enhanced performance. With its multiple I/O options including USB 3.0, USB 2.0, VGA, and COM ports, this motherboard ensures high versatility and reliability.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A3SPI-8C-HLN4F
    Physical Stats
    Form Factor
    • Mini-ITX
    Dimension
    • 6.7" x 7.1" (17.02cm x 18.3cm)
    Processor
    CPU
    • Intel® Atom® Processor C5325
    • Single Socket FCBGA-2106 supported, CPU TDP supports Up to 41W TDP
    Core
    • Up to 8 cores / 9MB Cache
    System Memory
    Memory Capacity
    • 2 DIMM slots
    • Up to 128GB ECC RDIMM, DDR4-2933MT/s
    Memory Type
    • 2933/2666/2400 MT/s ECC DDR4 RDIMM
    DIMM Sizes
    • 8GB, 16GB, 32GB, 64GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 1 SATA3 (6 Gbps) ports
    IPMI
    • ASPEED AST2500 BMC
    Graphics
    • 1 Aspeed AST2500 BMC port(s)
    Network Controllers
    • Quad LAN with Intel® C5000 SoC, 1GbE
    Input / Output
    LAN
    • 4 RJ45 Gigabit Ethernet LAN ports
    USB
    • 2 USB 2.0 port(s) (2 via header)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 VGA D-Sub Connector port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    DOM
    • 1 SuperDOM(Disk on Module) ports
    TPM
    • 1 TPM Header & Chip both
    Others
    • 1 8-bit GPIO header
    • 1 Oculink
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x2 (in x8 slot)
    M.2
    • M.2 Interface: 1 PCIe 3.0 x4; 1 SATA/PCIe 3.0 x2/USB 3.0
    • Form Factor: 2280, 3052
    • Key: M-Key, B-Key
    System BIOS
    BIOS Type
    • 32MB AMI UEFI
    BIOS Features
    • UEFI 2.7
    • SMBIOS 3.0 or later
    • ACPI 6.0 or later
    Management
    Software
    • Redfish API,Supermicro Server Manager (SSM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
    System Management Software
    • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support, SuperDoctor® 5
    Power Configurations
    • ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection, Power-on mode for AC power recovery
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • System Lockdown
    PC Health Monitoring
    Voltage
    • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 4 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
    LED
    • UID/Remote UID
    Temperature
    • CPU thermal trip support
    FAN
    • 4x 4-pin fan headers (up to 4 fans)
    • Thermal control tachometer fan connectors, Fan speed control, Dual Cooling Zone, 4 fans with tachometer monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control)
    Other Features
    • UID, RoHS, M.2 NGFF connector, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source, Intel® QuickAssist Technology
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Shield
    MCP-260-00173-0N1STD I/O Shield for A3SPI with EMI Gasket
    SATA cable
    CBL-0044L157.5CM SATA FLAT S-S PBF
    Retail Package
    I/O Shield
    MCP-260-00173-0N1STD I/O Shield for A3SPI with EMI Gasket
    OCuLink to SATA Cable
    CBL-SAST-09331SATA cable
    QRG
    MNL-2467-QRG1Motherboard Quick Reference Guide
    SATA cable
    CBL-0044L157.5CM SATA FLAT S-S PBF

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00175-0B-1U E300/E302/E200 I/O Shield for A3SPI with EMI Gasket
