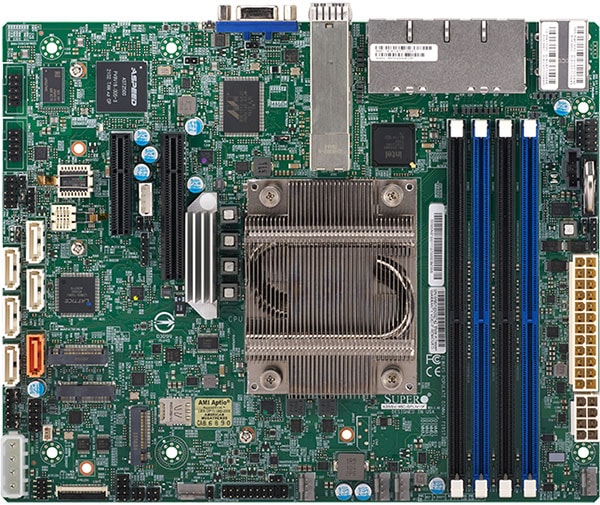

A3SSV-16C-SPLN10F Embedded Flex ATX form factor motherbo

MBD-A3SSV-16C-SPLN10F-O
https://safeconsulting.no/web/image/product.template/10133/image_1920?unique=c4a970a

kr 14 095,62 14095.62 NOK kr 14 095,62

kr 14 095,62

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro MBD-A3SSV-16C-SPLN10F motherboard features Intel Atom Processor P5342, up to 256GB of ECC RDIMM DDR4 memory, multiple I/O ports and expansion slots.

    Nøkkelfunksjoner

    • System on Chip
    • Intel Atom Processor P5342,Single Socket FCBGA-2106 supported,CPU TDP support 71 W
    • Intel Quick Assist Technology
    • Up to 256GB ECC RDIMM DDR4-2667MHz, in 4 DIMM slots
    • 2x 25G SFP28 ports and 8 GbE RJ45 LAN ports
    • Supports 12V DC power input
    • 2 USB 3.0 (Type-A on rear)2 USB 2.0 (via headers)
    • M.2 Interface:1x M.2 B-Key 2242/3042/2280 w/PCIe 2.0 x2/SATA 2.0/USB 3.01x M.2 M-Key 2242/2280/22110 w/PCIe 2.0 x4/SATA 2.0/USB 2.01x M.2 E-Key 2230 w/PCIe 2.0 x1/USB 2.0
    • Expansion slots:1 PCIe 3.0 x81 PCIe 3.0 x4
    • Up to 6 SATA 2.0 ports
    • I/O: 1 VGA, 2 COM, TPM 2.0 onboard and header both

    Viktige bruksområder

    • Embedded systems
    • Network appliances
    • IoT gateways
    • Edge computing

    Beskrivelse

    The Supermicro MBD-A3SSV-16C-SPLN10F, equipped with Intel Atom Processor P5342, supports up to 256GB ECC RDIMM DDR4 memory across 4 DIMM slots and a variety of connectivity and expansion options. Its onboard features include dual 25G SFP28, 8 GbE RJ45 LAN ports, multiple USB ports, and support for up to 6 SATA ports. With comprehensive system and power management tools, advanced security features, and robust hardware monitoring capabilities, this motherboard is designed to meet the demands of various applications.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • MBD-A3SSV-16C-SPLN10F
    Physical Stats
    Form Factor
    • Flex ATX
    Dimension
    • 9" x 7.25" (22.86cm x 18.42cm)
    Processor
    CPU
    • Intel® Atom® Processor P5342
    • Single Socket FCBGA-2106 supported, CPU TDP supports Up to 71W TDP
    Core
    • Up to 16 cores / 18MB Cache
    Note
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 256GB ECC , DDR4-2666MT/s
    Memory Type
    • 2666 MT/s
    DIMM Sizes
    • 8GB, 16GB, 32GB, 64GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 6 SATA2 (3 Gbps) ports
    IPMI
    • ASPEED AST2500
    Graphics
    • 1 ASPEED AST2500 BMC port(s)
    Network Controllers
    • Dual LAN with SoC
    • Quad LAN with Intel® i350 Gigabit Ethernet Controller
    • Quad LAN with Marvell® Alaska® 88E1543
    Input / Output
    LAN
    • 2 SFP28 25 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    • 8 RJ45 Gigabit Ethernet LAN ports
    USB
    • 2 USB 2.0 port(s) (2 via header)
    • 2 USB 3.1 Gen1 port(s) (2 rear type A)
    Video Output
    • 1 VGA D-Sub Connector port(s)
    Serial Port
    • 2 COM Port(s) (2 header)
    DOM
    • 1 SuperDOM(Disk on Module) power connector
    TPM
    • 1 TPM Header & Chip both
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x8,
    • 1 PCIe 3.0 x4
    M.2
    • M.2 Interface: 1 PCIe 2.0 x2/SATA 2.0/USB 3.0; 1 PCIe 2.0 x1/USB 2.0; 1 PCIe 2.0 x4/SATA 2.0/USB 2.0
    • Form Factor: 2242/3042/2280, 2230, 2242/2280/22110
    • Key: B-Key, E-Key, M-Key
    System BIOS
    BIOS Type
    • 32MB AMI UEFI
    BIOS Features
    • UEFI 2.7
    • SMBIOS 3.0 or later
    • ACPI 6.0 or later
    Management
    Software
    • Redfish API,Supermicro Server Manager (SSM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0, SuperDoctor® 5, Intel® Node Manager,SSM
    System Management Software
    • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power Configurations
    • Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • System Lockdown
    PC Health Monitoring
    Voltage
    • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Memory temperature, Chassis intrusion header, 5 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
    LED
    • UID/Remote UID
    • Power LED
    • BMC/IPMI Heartbeat LED
    Temperature
    • Thermal Control for 5 Fan Connectors
    • CPU thermal trip support
    FAN
    • 5x 4-pin fan headers (up to 5 fans)
    • Fan speed control, Dual Cooling Zone, 5 fans with tachometer status monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control)
    Other Features
    • UID, RoHS, Node Manager Support, M.2 NGFF connector, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source, Intel® QuickAssist Technology
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Shield
    MCP-260-00133-0N1STANDARD I/O SHIELD FOR A2SDV-LN10PF
    SATA cable
    CBL-0044L257.5CM SATA FLAT S-S PBF
    Retail Package
    I/O Shield
    MCP-260-00133-0N1STANDARD I/O SHIELD FOR A2SDV-LN10PF
    Quick Installation Guide
    MNL-2258-QRG1A3SSV-8C/16C/24C-SPLN10F QUICK REFERENCE GUIDE
    SATA cable
    CBL-0044L657.5CM SATA FLAT S-S PBF
