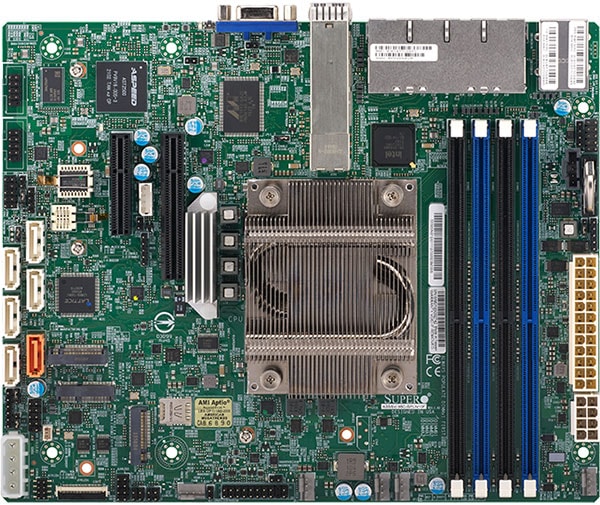

A3SSV-24C-SPLN10F Embedded Flex ATX form factor MB

MBD-A3SSV-24C-SPLN10F-O
https://safeconsulting.no/web/image/product.template/10135/image_1920?unique=ba3907f

kr 15 172,76 15172.76 NOK kr 15 172,76

kr 15 172,76

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    Supermicro's MBD-A3SSV-24C-SPLN10F-O motherboard is designed with the Intel Atom Processor P5362, offering up to 24 cores, robust networking options with 2 SFP28 25GbE ports, 8 GbE LAN ports, and advanced system memory support up to 256GB ECC RDIMM DDR4-2933MHz.

    Key Features

    • System on Chip
    • Intel Atom Processor P5362,Single Socket FCBGA-2106 supported,CPU TDP support 83 W
    • Intel Quick Assist Technology
    • Up to 256GB ECC RDIMM DDR4-2933MHz, in 4 DIMM slots
    • 2x 25G SFP28 ports and 8 GbE RJ45 LAN ports
    • Supports 12V DC power input
    • 2 USB 3.0 (Type-A on rear)2 USB 2.0 (via headers)
    • M.2 Interface:1x M.2 B-Key 2242/3042/2280 w/PCIe 2.0 x2/SATA 2.0/USB 3.01x M.2 M-Key 2242/2280/22110 w/PCIe 2.0 x4/SATA 2.0/USB 2.01x M.2 E-Key 2230 w/PCIe 2.0 x1/USB 2.0
    • Expansion slots:1 PCIe 3.0 x81 PCIe 3.0 x4
    • Up to 6 SATA 2.0 ports
    • I/O: 1 VGA, 2 COM, TPM 2.0 onboard and header both

    Key Applications

    • High-performance computing
    • Networking solutions
    • Storage server
    • Virtualization
    • Data center deployments

    Description

    The Supermicro MBD-A3SSV-24C-SPLN10F-O motherboard is an advanced system solution equipped with the Intel Atom Processor P5362. It supports up to 24 cores and 27MB Cache, enabling high-performance computing. With its diverse networking capabilities, including 2 SFP28 25GbE ports and 8 GbE LAN ports, and support for up to 256GB ECC RDIMM DDR4-2933MHz memory, this motherboard ensures robust and reliable performance for various applications. Additional features include multiple USB ports, comprehensive expansion slots, dedicated IPMI support, and secure, cryptographically signed firmware for enhanced security.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A3SSV-24C-SPLN10F
    Physical Stats
    Form Factor
    • Flex ATX
    Dimension
    • 9" x 7.25" (22.86cm x 18.42cm)
    Processor
    CPU
    • Intel® Atom® Processor P5362
    • Single Socket FCBGA-2106 supported, CPU TDP supports Up to 83W TDP
    Core
    • Up to 24 cores / 27MB Cache
    Note
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 256GB ECC RDIMM, DDR4-2933MT/s
    Memory Type
    • 2933/2666/2400 MT/s ECC DDR4 RDIMM
    DIMM Sizes
    • 8GB, 16GB, 32GB, 64GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 6 SATA2 (3 Gbps) ports
    IPMI
    • ASPEED AST2500
    Graphics
    • 1 ASPEED AST2500 BMC port(s)
    Network Controllers
    • Dual LAN with SoC
    • Quad LAN with Intel® i350 Gigabit Ethernet Controller
    • Quad LAN with Marvell® Alaska® 88E1543
    Input / Output
    LAN
    • 2 SFP28 25 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    • 8 RJ45 Gigabit Ethernet LAN ports
    USB
    • 2 USB 2.0 port(s) (2 via header)
    • 2 USB 3.1 Gen1 port(s) (2 rear type A)
    Video Output
    • 1 VGA D-Sub Connector port(s)
    Serial Port
    • 2 COM Port(s) (2 header)
    DOM
    • 1 SuperDOM(Disk on Module) power connector
    TPM
    • 1 TPM Header & Chip both
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x8,
    • 1 PCIe 3.0 x4
    M.2
    • M.2 Interface: 1 PCIe 2.0 x2/SATA 2.0/USB 3.0; 1 PCIe 2.0 x1/USB 2.0; 1 PCIe 2.0 x4/SATA 2.0/USB 2.0
    • Form Factor: 2242/3042/2280, 2230, 2242/2280/22110
    • Key: B-Key, E-Key, M-Key
    System BIOS
    BIOS Type
    • 32MB AMI UEFI
    BIOS Features
    • UEFI 2.7
    • SMBIOS 3.0 or later
    • ACPI 6.0 or later
    Management
    Software
    • Redfish API,Supermicro Server Manager (SSM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0, SuperDoctor® 5, Intel® Node Manager,SSM
    System Management Software
    • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power Configurations
    • Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • System Lockdown
    PC Health Monitoring
    Voltage
    • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Memory temperature, Chassis intrusion header, 5 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
    LED
    • UID/Remote UID
    Temperature
    • Thermal Control for 5 Fan Connectors
    • CPU thermal trip support
    FAN
    • 5x 4-pin fan headers (up to 5 fans)
    • Fan speed control, Dual Cooling Zone, 5 fans with tachometer status monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control)
    Other Features
    • UID, RoHS, Node Manager Support, M.2 NGFF connector, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source, Intel® QuickAssist Technology
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Shield
    MCP-260-00133-0N1STANDARD I/O SHIELD FOR A2SDV-LN10PF
    SATA cable
    CBL-0044L257.5CM SATA FLAT S-S PBF
    Retail Package
    I/O Shield
    MCP-260-00133-0N1STANDARD I/O SHIELD FOR A2SDV-LN10PF
    Quick Installation Guide
    MNL-2258-QRG1A3SSV-8C/16C/24C-SPLN10F QUICK REFERENCE GUIDE
    SATA cable
    CBL-0044L657.5CM SATA FLAT S-S PBF
