[NR]A4SAN-E,3.5"SBC,ASL,UP IoT,x7433RE,SOC,4C,TDP9W,DDR5 480

• Intel® Atom® Processor x7433RE (9W, 4C)
• DDR5 4800 MHz, SODIMM x 1, Up to16GB, In-Band ECC supported
• M.2 M-Key 2242/2280, M.2 E-key 2230, M.2 B-key 2240/3052/2280
• Dual 2.5GbE, M.2 B-key w/ nano SIM & 5G module supported
• 9-36V wide range power with RVP and TVS
• Wide temperature suppot from -40°C to 75°C
• 4 USB3.2, 2 USB2.0, 4COM ports, audio with AMP, SMBus/I2C, 8bit GPIO
• 2 HDMI, 1 48bit LVDS, Intel HD Graphics 3 independent displays

• Industrial Automation
• Embedded Systems
• Network Appliances
• IoT Devices
• Digital Signage
• Ruggedized Computing

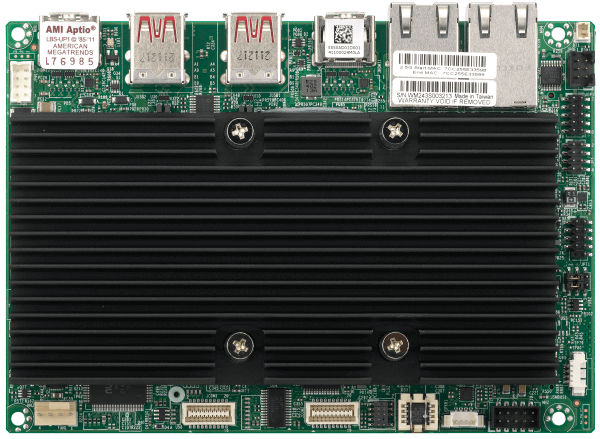

The Supermicro MBD-A4SAN-E-B motherboard is a robust solution designed for demanding industrial environments. It features the Intel® Atom® x7433RE processor with low power consumption, and its single DDR5 SODIMM slot supports up to 16GB of memory with in-band ECC. The motherboard offers extensive storage and expansion capabilities through multiple M.2 slots. Connectivity options include dual 2.5GbE, USB3.2, USB2.0, HDMI, LVDS, and audio ports. With a wide operating temperature range of -40°C to 75°C, it is built to withstand harsh conditions. Additional features include advanced health monitoring, TPM for security, and a comprehensive BIOS.
